2014 HAAS VF-1 Vertical Machining Center | 7612530 SM

Name: Machinery Resources International
Address: 1650 Voyager Ave.,, Simi Valley, CA, 93063, US
Telephone: 877-568-2121

Sell Your HAAS VF-1

877-568-2121

inquiries@machineryresources.com

ConditionUsed

Quantity

1 available

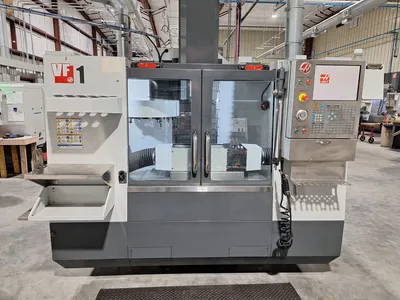

2014 HAAS VF-1 Vertical Machining Centers | Machinery Resources International (1)

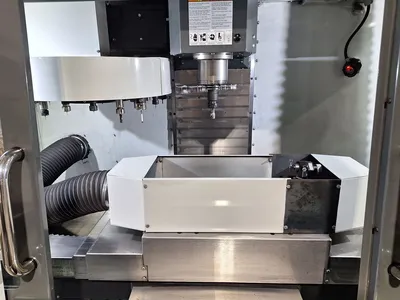

2014 HAAS VF-1 Vertical Machining Centers | Machinery Resources International (2)

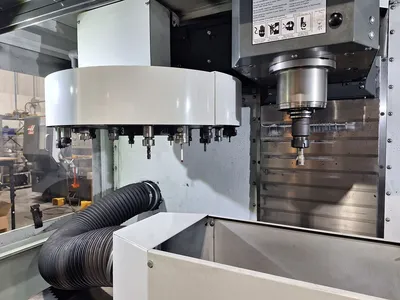

2014 HAAS VF-1 Vertical Machining Centers | Machinery Resources International (3)

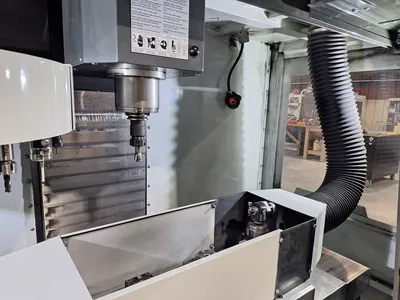

2014 HAAS VF-1 Vertical Machining Centers | Machinery Resources International (4)

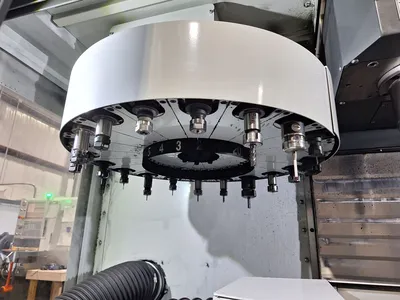

2014 HAAS VF-1 Vertical Machining Centers | Machinery Resources International (5)

2014 HAAS VF-1 Vertical Machining Centers | Machinery Resources International (6)

2014 HAAS VF-1 Vertical Machining Centers | Machinery Resources International (7)

2014 HAAS VF-1 Vertical Machining Centers | Machinery Resources International (8)

2014 HAAS VF-1 Vertical Machining Centers | Machinery Resources International (9)

2014 HAAS VF-1 Vertical Machining Centers | Machinery Resources International

Sell Your HAAS VF-1

Overview

Type:

Vertical Machining Centers

Manufacturer:

HAAS

Model:

VF-1

Year:

2014

Stock #:

7612530

Status:

For Sale

Description

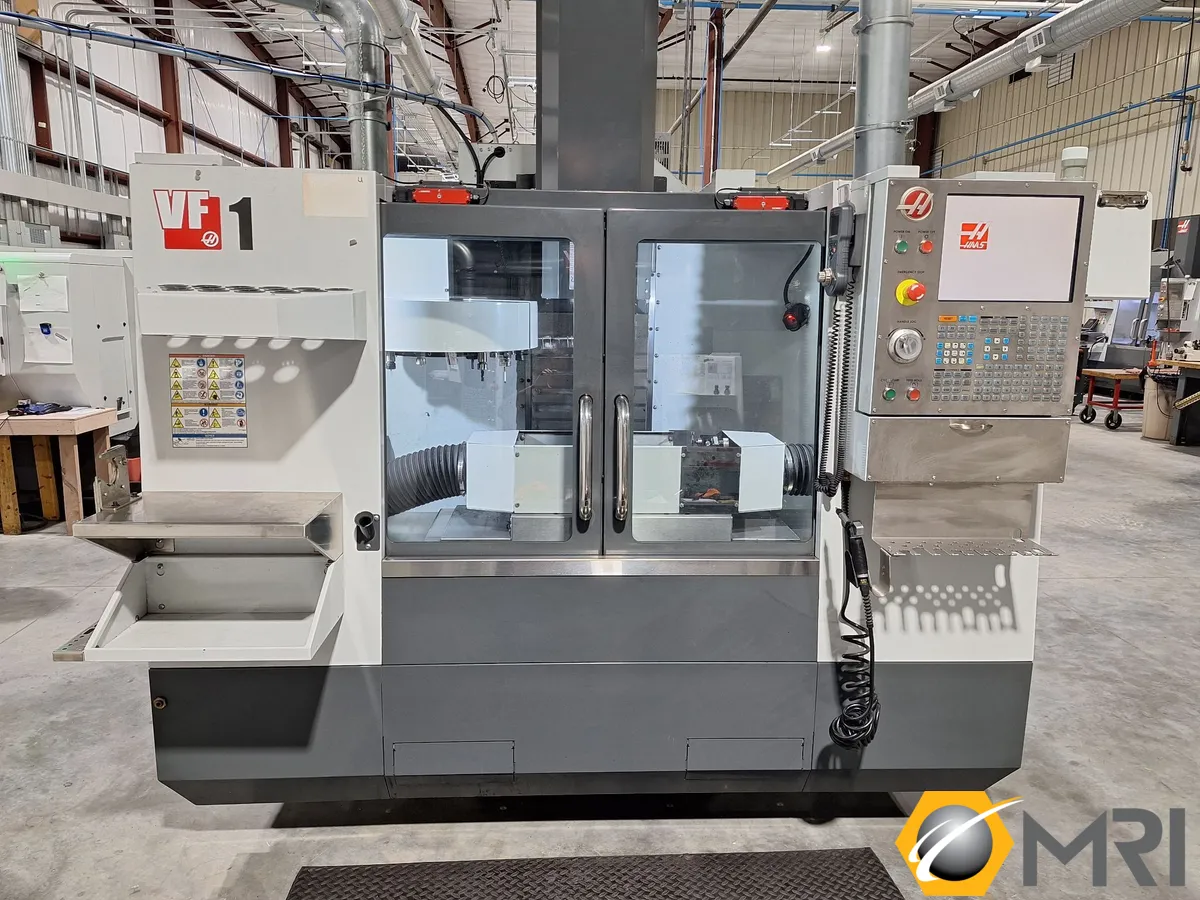

2014 HAAS VF-1 Vertical Machining Center, used, features 3-axis with 20" X, 16" Y, and 20" Z travel, 30 HP, 15,000 RPM spindle. Includes high-speed machining, remote jog handle, and wireless intuitive probing system. 20-tool carousel ATC.

15,000 RPM
THROUGH SPINDLE COOLANT READY
HIGH SPEED MACHINING
REMOTE JOG HANDLE
WIRELESS INTUITIVE PROBING SYSTEM & PROBES
COORDINATE ROTATION & SCALING
VISUAL PART PROGRAMMING
SPINDLE ORIENTATION
MACROS

ImperialMetric

X-Axis	20"	508 mm
Y-Axis	16"	406.4 mm
Z-Axis	20"	508 mm
# Axis	3	3
Power	30 hp	22.4 kW
RPM	15,000 RPM	15,000 RPM
Taper	CT 40	CT 40
# ATC	20	20
Table-W	14"	355.6 mm
Table-L	26"	660.4 mm
Pallets?	No	No
Control	CNC (HAAS CNC CLASSIC CONTROL)	CNC (HAAS CNC CLASSIC CONTROL)

Table / Pallet Size: 26" x 14"
X-Travel: 20"
Y-Travel: 16"
Z-Travel: 20"
Rapid Traverse: 1000 IPM
Cutting Feed Rate: 650 IPM
Spindle Taper Type: CAT#40
Spindle Speed: 15,000 RPM
Spindle Motor: 30 HP
Spindle Nose to Table Top: 4-24"
Tool Magazine Capacity: 20
Tool Changer Type: Carousel
Tool Change Time: 4.2 seconds
Chip-to-Chip Time: 5 seconds

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
