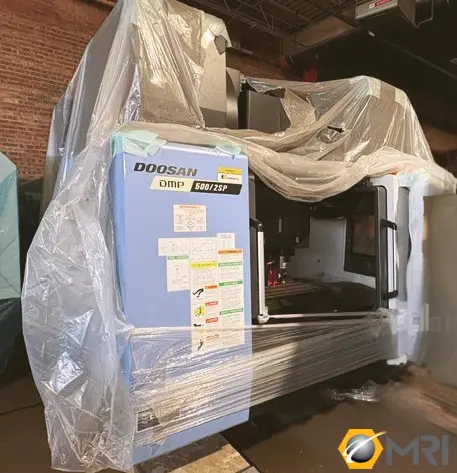

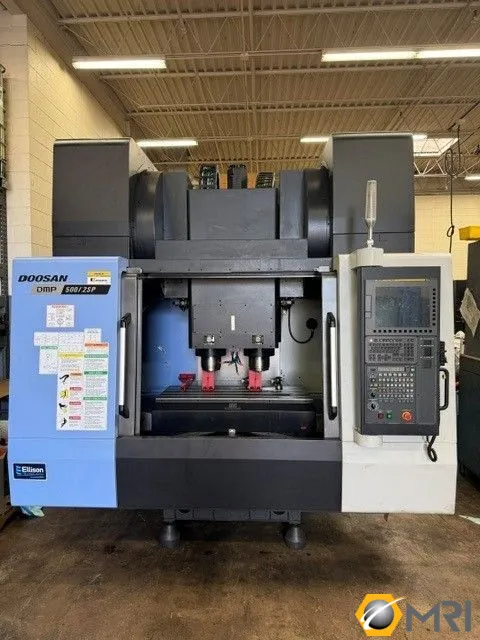

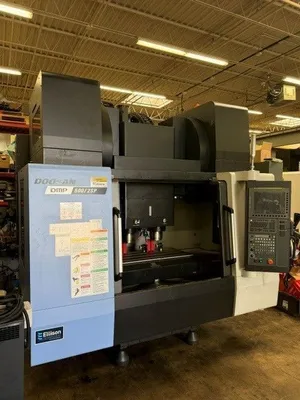

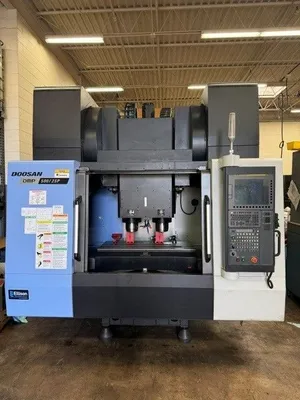

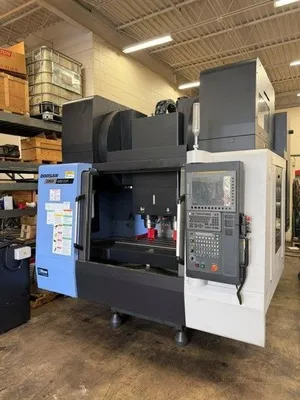

2021 DOOSAN DMP-500/2SP TWIN SPINDLE VERTICAL MACHINING CENTER | JS 7612532

Travel & Table
X-Axis Travel: 1,040 mm (40.9 in)
Y-Axis Travel: 520 mm (20.5 in)
Z-Axis Travel: 600 mm (23.6 in)
Table Size: 1,200 x 520 mm (47.2 x 20.5 in)
Max Table Load: 800 kg (1,763 lbs)
Rapid Traverse (X/Y/Z): 40 / 40 / 36 m/min [1, 2, 3]

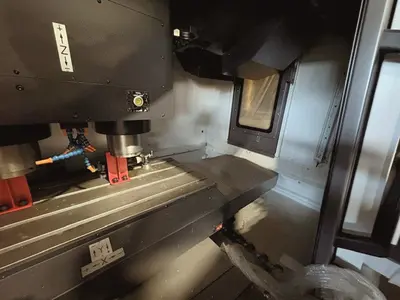

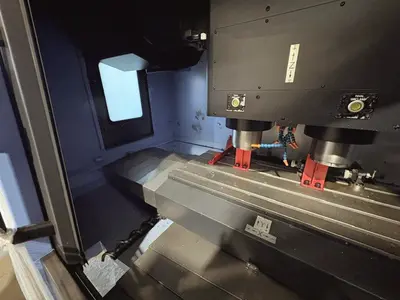

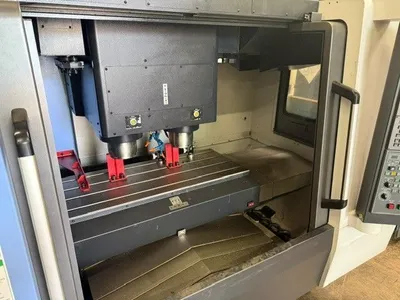

Spindle System

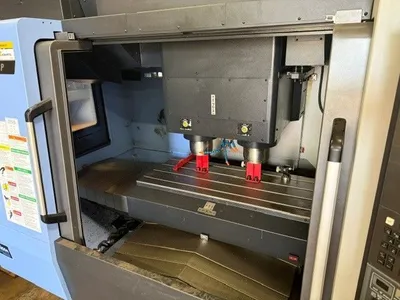

Number of Spindles: 2
Spindle Speed: 12,000 RPM
Spindle Motor: 18.5 kW / 11 kW (24.8 HP / 14.8 HP)
Spindle Taper: BIG-PLUS CAT40
Distance Between Spindles: 400 mm (15.7 in)
W-Axis Adjustment: 20 mm (0.8 in) on the right spindle to easily compensate for differences in tool heights [1, 2, 3, 4, 5]
Tool Changer
Magazine Capacity: Dual 40-tool magazines
Tool-to-Tool Time: 1.7 seconds
Max Tool Diameter: \(\emptyset \)90 mm to \(\emptyset \)95 mm depending on configuration
Max Tool Length: 300 mm (11.8 in)
Max Tool Weight: 8 kg (17.6 lbs) [1, 2, 3, 4]
Machine Footprint
Dimensions (L x W x H): 2,400 x 2,760 x 3,510 mm (approx. 94 x 108 x 138 in)
Machine Weight: Approximately 8,500 kg (18,739 lbs)
