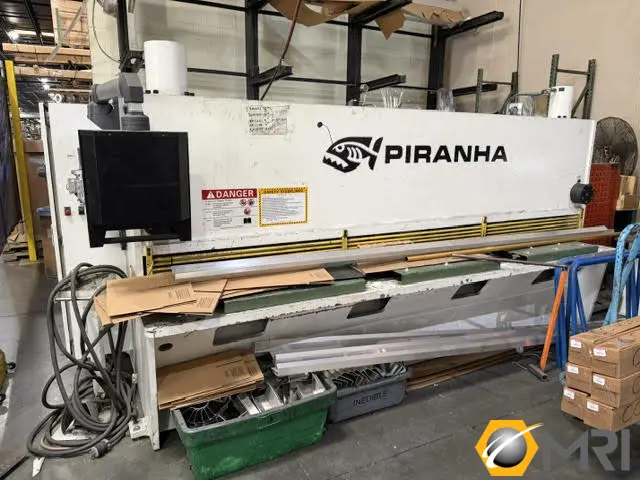

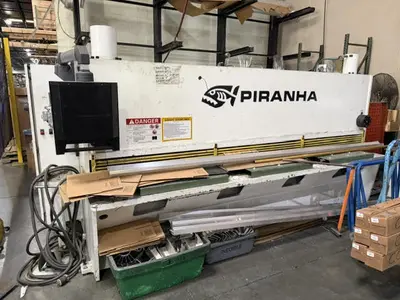

PIRANHA 1/4" x 10' CNC POWER SQUARING SHEAR, NEW; 2024
ConditionUsed
1 available
This economically priced hydraulic guillotine shear comes standard with many features not normally found at this price point such as, CNC controlled blade gap and rake angle. This all works together to get the best quality sheared parts every time on a wide range of materials.

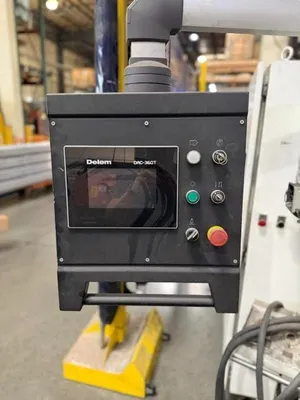

DELEM DAC360T CNC CONTROL
GUILLOTINE DESIGN WITH A 3-POINT ROLLER GIB SYSTEM
STANDARD 39” TRAVEL BACK GAUGE WITH RETRACT FUNCTION
CNC RAKE ANGLE ADJUSTMENT
CNC BLADE GAP ADJUSTMENT
CNC STROKE ADJUSTMENT
BOSCH REXROTH HYDRAULICS WITH ACCUMULATOR RETURN
HIGH QUALITY ALLOY SEGMENTED BLADE
CUTTING LENGTH: 120"
MILD STEEL CAPACITY: 0.25" - 1/4"
STAINLESS STEEL CAPACITY: 0.125" - 1/8"
STROKES PER MINUTE: 9 TO 48 (DEPENDING ON CUT LENGTH AND MATERIAL TYPE)
RAKE ANGLE: 0.5° – 2.0°
HOLD DOWN CYLINDERS: 16
HOLD DOWN FORCE: 17 TONS
BACKGAUGE RANGE: UP TO 39"
MOTOR OUTPUT: 10 HP
ELECTRICAL: 480V/60HZ/3PH
APPROX. WEIGHT: 13,600 LBS
APPROX. DIMENSIONS: 160"(L) × 63"(W) × 79"(H)
