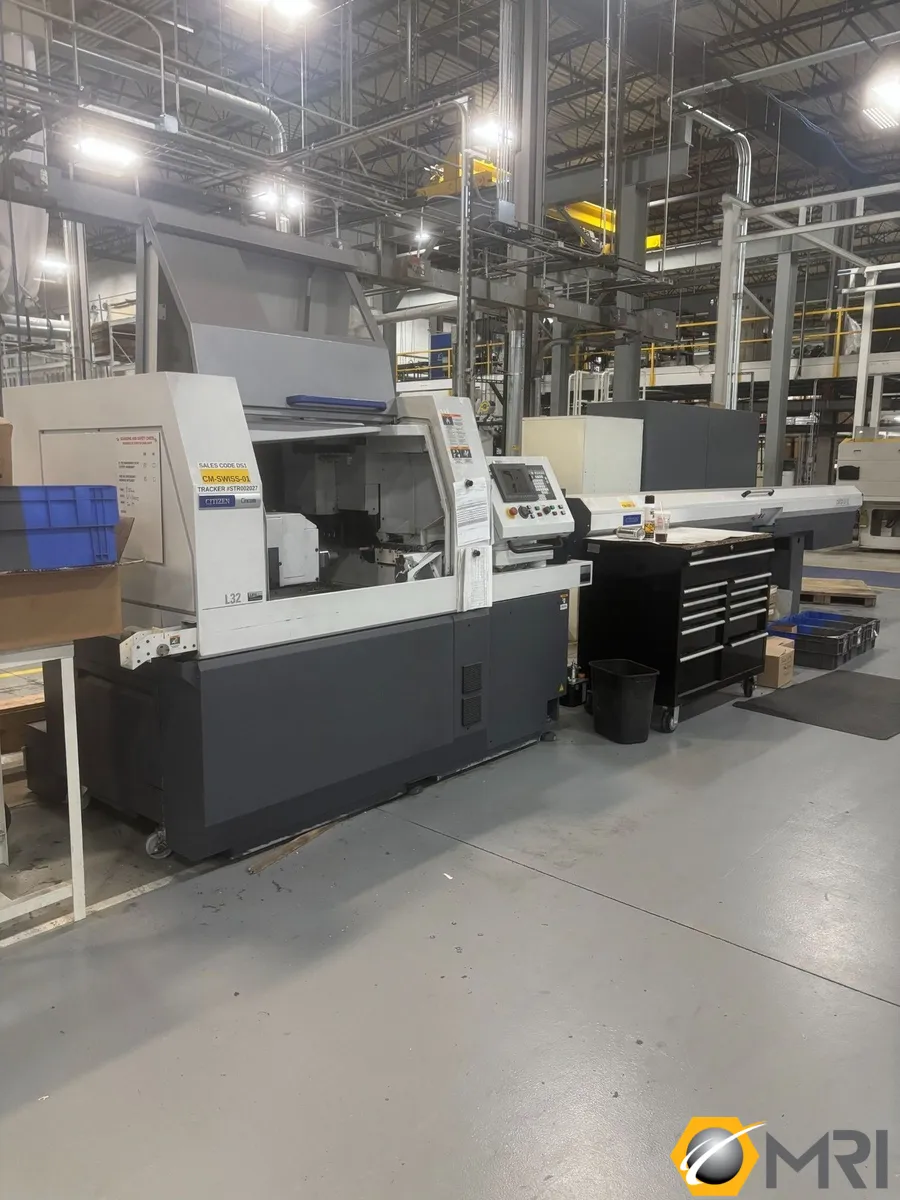

2019 CITIZEN L32-1M8, a 7-axis CNC Swiss Lathe, ready for your shop. Convertible design with full C-axis indexing, Mitsubishi CNC control, and LFV Technology. Includes CAV-32LE-IS barfeed, parts catcher/conveyor. Dimensions: 97" x 55" x 69"; 6,283 lbs.
Power On Hours: 14,701
Operating Hours: 10,514
Mitsubishi CNC Control
CAV-32LE-IS Magazine Barfeed
Parts Catcher
Parts Conveyor
LFV Technology
All Available Tooling & Manuals
SPECIFICATIONS:
CAPACITY 1.2598"
SPINDLE HOLE DIAMETER 1.5354"
POWER 10.1 hp
RPM 8,000 RPM
# AXIS: 7
SWISS, CHUCKER OR CONVERTIBLE? Convertible
MAIN SPINDLE INDEXING: Full C
SUB-SPINDLE INDEXING Full C
CONTROL CNC (CNC Mitsubishi)
DIMENSIONS 97" x 55" x 69"
WEIGHT 6,283lbs
General Specifications:
Number of Axis Z1, X1, Y1, Z2, X2, C1, C2
Capacity:
Max Machining Diameter: 1.26″ (32 mm)
Max Machining Length with Guide Bushing: 12.6″ (320mm)
Max Machining Length without Guide Bushing: 2.5″ (63.5 mm)
Max Bar Capacity: 1.26″ (32 mm)
Spindle Through Hole Diameter: 1.53″ (39 mm)
Max Tool Positions: 19 – 30
Max. Front Drilling Diameter: 0.472″ (12 mm)
Max. Front Tapping Diameter: M12
Max. Back Spindle Chucking Diameter: 1.26″ (32 mm)
Max. Back Spindle Drilling Diameter: 0.472″ (10 mm)
Max. Back Spindle Tapping Diameter: M10
Max. Tool Spindle Drilling Diameter: 0.314 (8 mm)
Max. Tool Spindle Tapping Diameter: M6
Spindle:
Main Spindle Indexing: 360° (Full C-Axis)
Main Spindle Speed: 8,000 RPM
Main Spindle Motor: 7.5 kw
Back Spindle Indexing: 360° (Full C-Axis)
Back Spindle Speed: 8,000 RPM
Back Spindle Motor: 3.7 kw
Standard Tools:
Gang Turning Tool: 6
Front Drilling tool: 4 – 9
Back Drilling Tools: 5 – 11
Power Driven Tools Attachment:
Gang rotary tool: 4 – 6
Driven Tool Speed: 6,000 RPM
Driven Tool Motor: 1.0 kw
General:
Power Source: AC 220v / 3-Phase / 50/60 Hz
Power Requirement: 13.2 kva
Overall Dimensions: 97″ X 55″ X 69″ High without Bar Feeder
Weight: 6,283 lbs.
