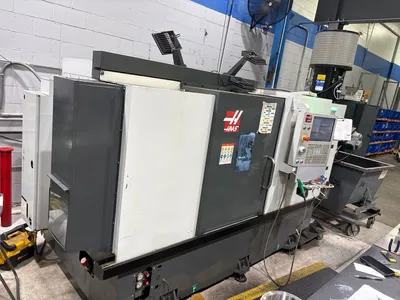

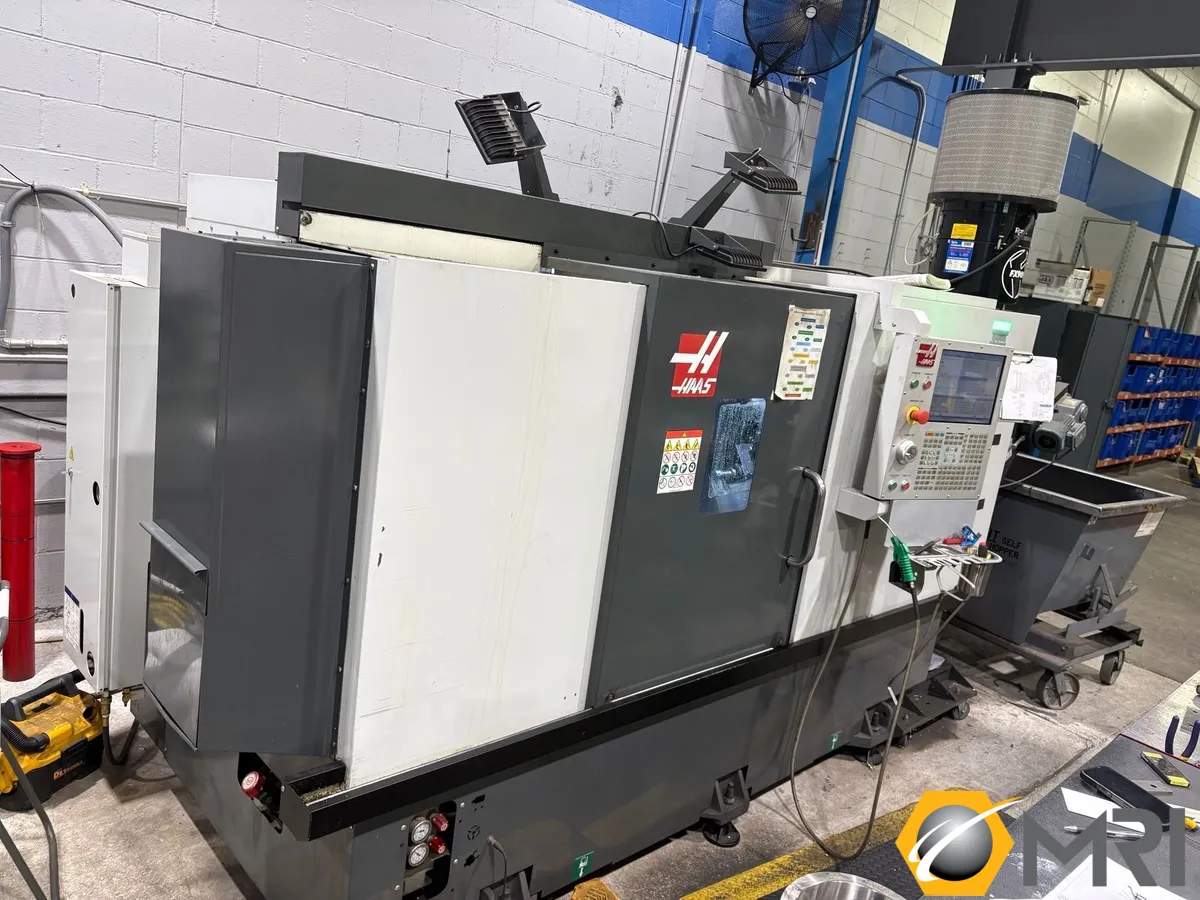

2022 HAAS ST-35Y CNC LATHE | 7612549 MM
ConditionUsed
1 available
Summary
$99,900.00
USD
Estimated Monthly
$2,002.00
Financing Term
60 months
Estimated monthly payment. Subject to credit approval. Not a commitment to lend.
Summary
Estimated Monthly
$2,002.00
Financing Term
60 months
Estimated monthly payment. Subject to credit approval. Not a commitment to lend.
The ST-35Y is a medium footprint, big-bore lathe with a generous work envelope. The addition of Y-axis and live tooling allows milling, drilling, and tapping for increased machine capabilities. This machine offers the best performance for the money – the best value – in its class.
| Chip Conveyor |
High Pressure Coolant
Tailstock
Tool Pre-setter
Belt Type Chip Conveyor
High Intensity Lighting
Coolant Tank Oil Skimmer
Rigid Tapping
BMT65 Turret
Static Tools
Two Live Tool Holders
Power On Time: 8221:57:00
Spindle On Time: 2014:01:07
Servo On Time: 4144:33:14

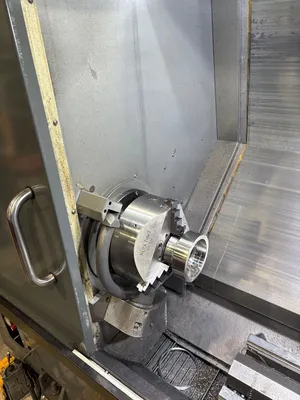

Machine will include a standard 3 jaw chuck, chuck shown is not included.
The ST-35Y is a medium footprint, big-bore lathe with a generous work envelope. The addition of Y-axis and live tooling allows milling, drilling, and tapping for increased machine capabilities. This machine offers the best performance for the money – the best value – in its class.
| Chip Conveyor |
High Pressure Coolant
Tailstock
Tool Pre-setter
Belt Type Chip Conveyor
High Intensity Lighting
Coolant Tank Oil Skimmer
Rigid Tapping
BMT65 Turret
Static Tools
Two Live Tool Holders
Power On Time: 8221:57:00
Spindle On Time: 2014:01:07
Servo On Time: 4144:33:14
Machine will include a standard 3 jaw chuck, chuck shown is not included.
Imperial
| Swing | 31.75" |
| Machining Length | 23" |
| # Axis | 4 |
| Bar Capacity | 4" |
| Chuck Size | 12" |
| Turning Diameter | 18" |
| Power | 40 hp |
| Max RPM | 3,200 RPM |
| Tailstock | Yes |
| Live Tooling | Yes |
| Sub Spindle | No |
| # of Turrets | 1 |
| Hole Thru | 4.5 in |
| Control | CNC (HAAS) |
| Dimensions | 186" x 104" x 81" |
| Weight | 14,000 |
