TSUGAMI M08SY 5-AXIS CNC LATHE, NEW in 2015 | AB 7612555

TSUGAMI M08SY 5-AXIS CNC LATHE, NEW in 2015 | AB 7612555

Sell Your TSUGAMI MO8SY
877-568-2121
inquiries@machineryresources.com
ConditionUsed
1 available
Sell Your TSUGAMI MO8SY

Overview

Type:
CNC Lathes (Turning Centers)
Manufacturer:
TSUGAMI
Model:
MO8SY
Year:
2015
Stock #:
7612555
Status:
For Sale

Description

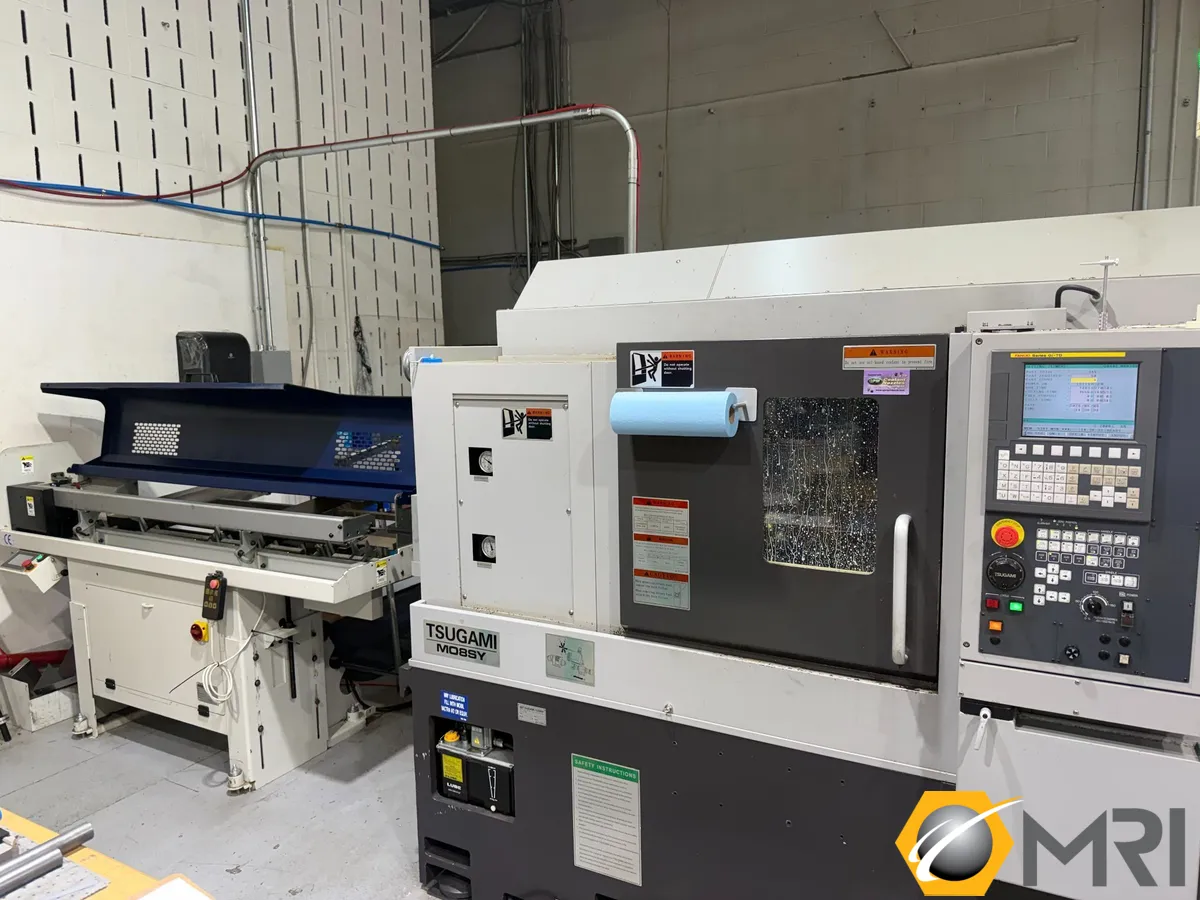

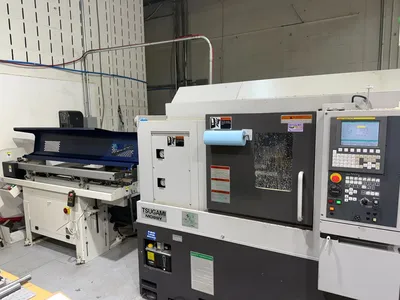

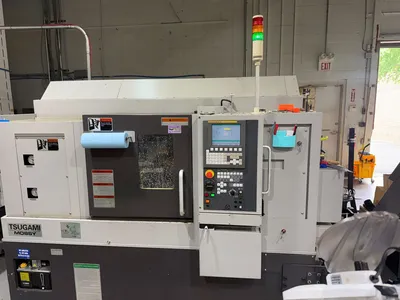

Used 2015 TSUGAMI M08SY 5-axis CNC Lathe, featuring Fanuc 0i-TD control, chip conveyor, and misc tooling. With a 14.8 HP spindle motor, it offers 5,000 RPM live tooling and bar capacity up to 2". Ideal for versatile machining needs.

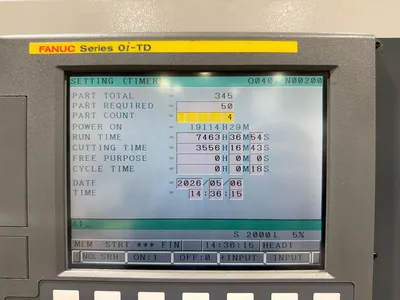

Control: Fanuc 0i-TD
Edge Short Loader
Chip Conveyor
Royal Collet chucks on both spindles.
3 jaw chucks for both spindles
Misc Tooling Included
Ran Plastic Aluminum, 1018 and 303SS

Bar Capacity2.5"63.5 mm
Chuck Size8"203.2 mm
Turning Diameter11"279.4 mm
Power15 hp11.2 kW
Max RPM4,500 RPM4,500 RPM
Live ToolingYesYes
Sub SpindleYesYes
ControlCNC (FANUC OI-TD)CNC (FANUC OI-TD)
Dimensions97.24″ x 72.83″ x 75.98″97.24″ x 72.83″ x 75.98″
Weight13,000 LBS13,000 LBS

Bar Capacity: 2″
Chuck Size: 8″
Sub Spindle: 6″
Spindle Speed: 4,500 RPM
Live Tooling: 5,000RPM
Spindle Motor: 14.8 HP
X Axis Travel: 8.7″
Z Axis Travel: 15.75″
Y Axis Travel: 3.94″
C Axis Travel: .001Deg
W Axis Travel: 19.92″
Rapid Rate Z Axis: 1,062 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11″
Max Turning Length: 14.96″
Dimensions: 97.24″ x 72.83″ x 75.98″
Weight: 13,000 LBS

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
