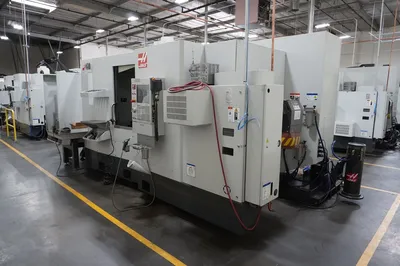

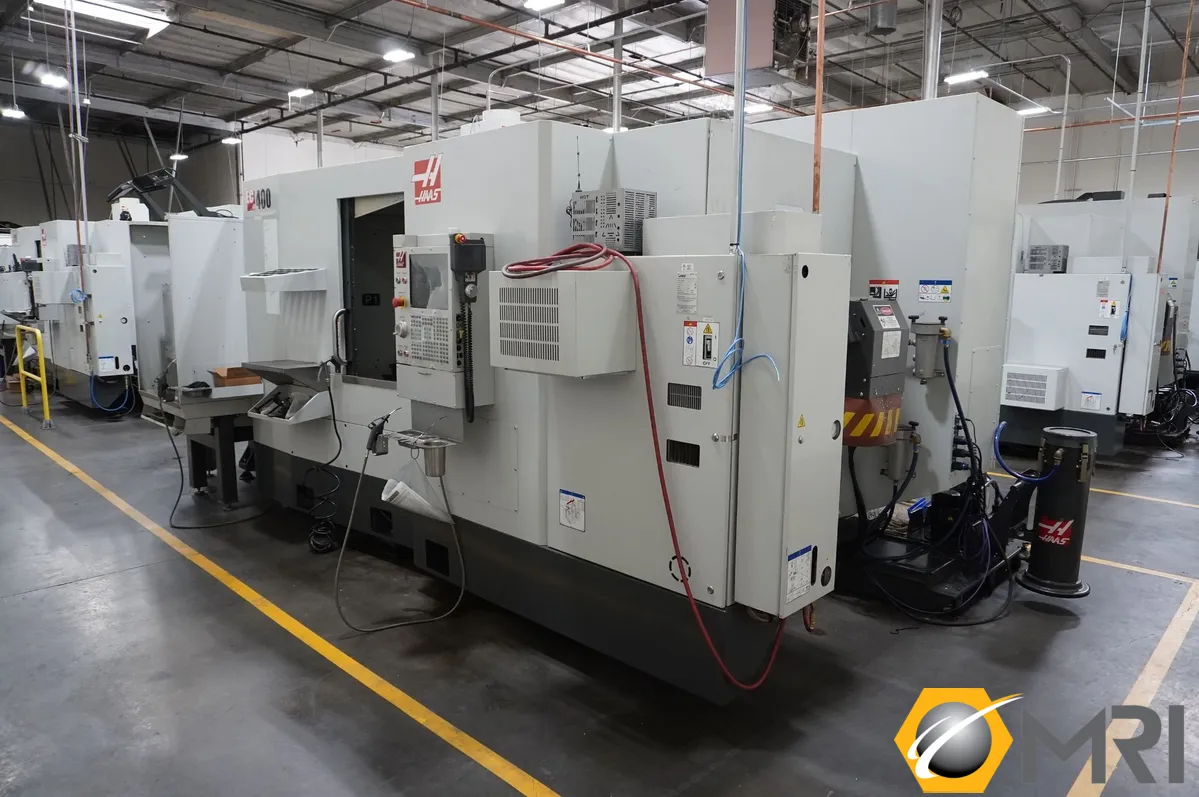

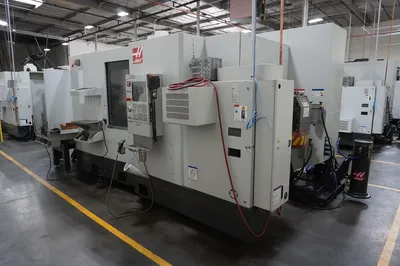

2022 HAAS EC400PP 6 PALLET CNC HORIZONTAL MACHINING CENTER | AG 7612557
ConditionUsed
1 available
2022 HAAS EC-400PP CNC Horizontal Machining Center with 6-pallet changer and 100 ATC. Equipped with full 4th axis, 10,000 RPM spindle, WIPS probing, and high-speed machining. Robust performance for precision tasks.

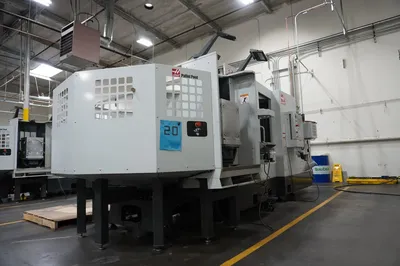

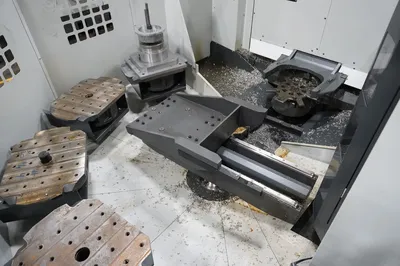

6 PALLET APC
100 ATC
FULL 4TH AXIS
10000 rpm spindle
WIPS PROBING
300 PSI COOLANT THROUGH
WIPS PROBING
HIGH SPEED MACHINING
VPS EDITING
ROTATION AND SCALING
1GB MEMORY
WIRELESS NETWORKING
COMPENSATION TABLES
X Axis Travel: 22"
Y Axis Travel: 25"
Z Axis Travel: 22"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Pallet Load: 880 LBS
Spindle Speed: 10,000 RPM
Spindle Motor: 30 HP
Spindle Taper: 40 CT
Tool Changer: 100 ATC
Max Tool Length: 12"
Max Tool Diameter: 3-6"
Tool to Tool Time: 2.8 Seconds
Pallet Change Time: 15 Seconds
Spindle Nose to Pallet Center Distance: 3.9"-23.9"
Spindle Center to Pallet Distance: 2.1"-22.1"
Pallet Size: 15.75" x 15.75"
Dimensions: 176" x 92" x 101"
Weight: 17,520 LBS
