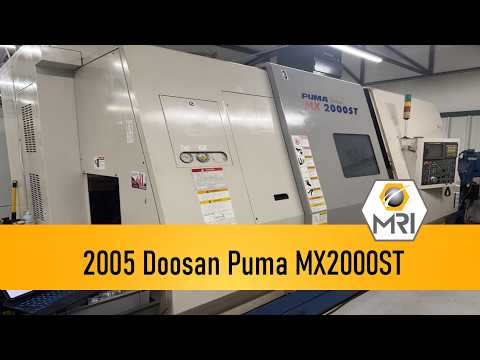

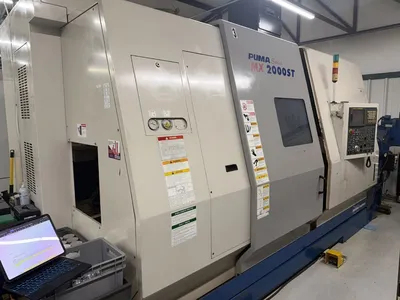

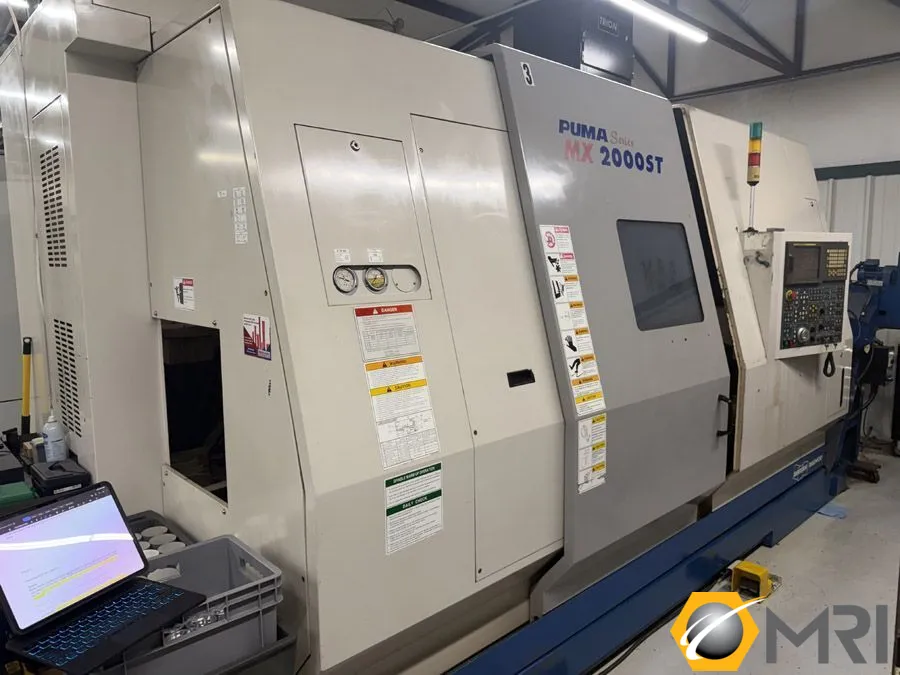

2005 Doosan Puma MX2000ST CNC Lathe | IH 7612568

Swing Over Bed: 29.52″
Swing Over Saddle: 23.62″
Recommended Turning Diameter: 8.26″
Max Turning Diameter: 21.65″
Max Working Length: 40.15″
Bar Working Diameter: 2.55″
Main Spindle:

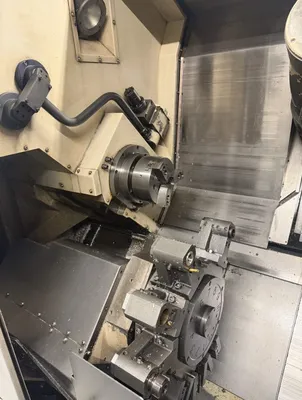

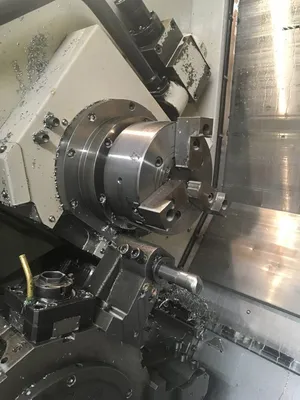

Chuck Size: 8″
Spindle Nose: A2-6
Spindle Diameter: 4.33″
Spindle Through Hole: 2.99″
Bore of Draw Tube: 2.59″
Main Spindle Motor: 29.5 HP/ 20 HP
Max Spindle Speed: 5,000 RPM
Max Spindle Indexing (C Axis): 0.001 Degrees

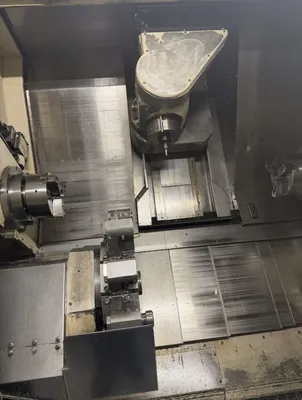

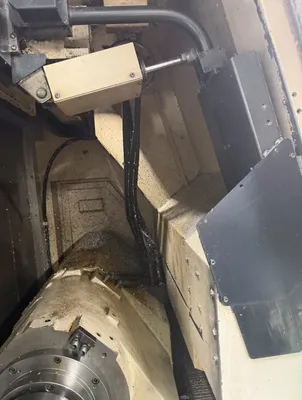

Milling Spindle:
Spindle Taper: Capto C6
Milling Spindle Diameter: 2.75″
Spindle Motor: 20 HP / 15 HP
Max Milling Spindle Speed: 10,000 RPM
Index of Milling Spindle: 360 degrees in 30 degree increments

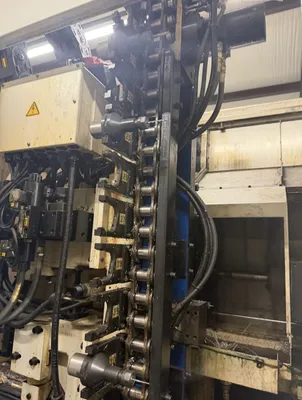

Tool Changer Capacity: 24
Tool Changer Arm: Swing Arm
Tool Change Time: 1.5 sec
Carriage:
X1 Axis Travel: 21.85″
X2 Axis Travel: 7.28″
Z1 Axis Travel: 43.11″
Z2 Axis Travel: 44.88″
Y Axis Travel: 6.29″ (±3.14″)
A-Axis Travel: 41.92″
C1, C2 Axis Travel: 360 (0.001) Degree
B-Axis: 240 Degree (±120)
B Axis Coupling Clamp Degree: 15
Bed & Saddle
Slant Angle: 45 Degrees
Bed (Z1 Axis): 21.25″
Saddle (X1 Axis): 11.22″
Saddle (X2 Axis): 9.44″

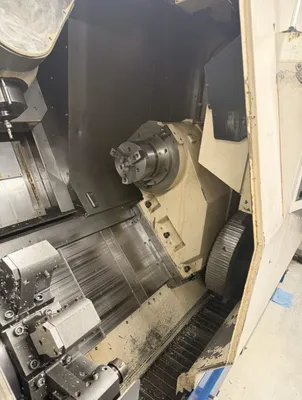

Right Spindle Base: 17.51″

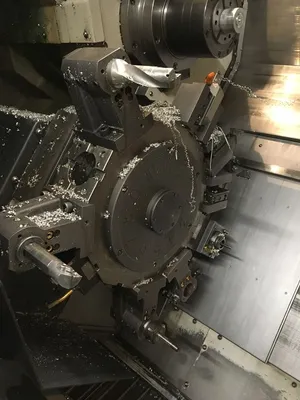

Lower Tool Post:
Number of Tool Stations: 12
Boring Bar Size: 1.57″
Rotary Tool Speed: 4,000 RPM
Rotary Tool Motor: 7.5 HP
Machine Weight: 12,500 KGF
Machine Floor Dimensions: 177.95″ x 98.22″ x 102.36″
