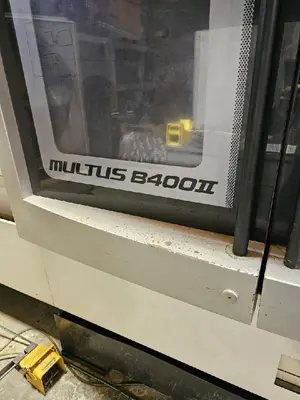

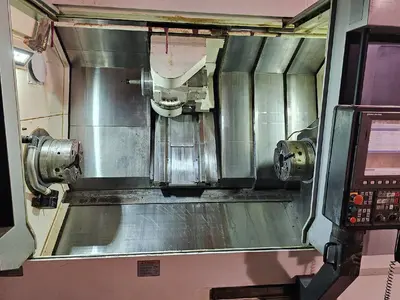

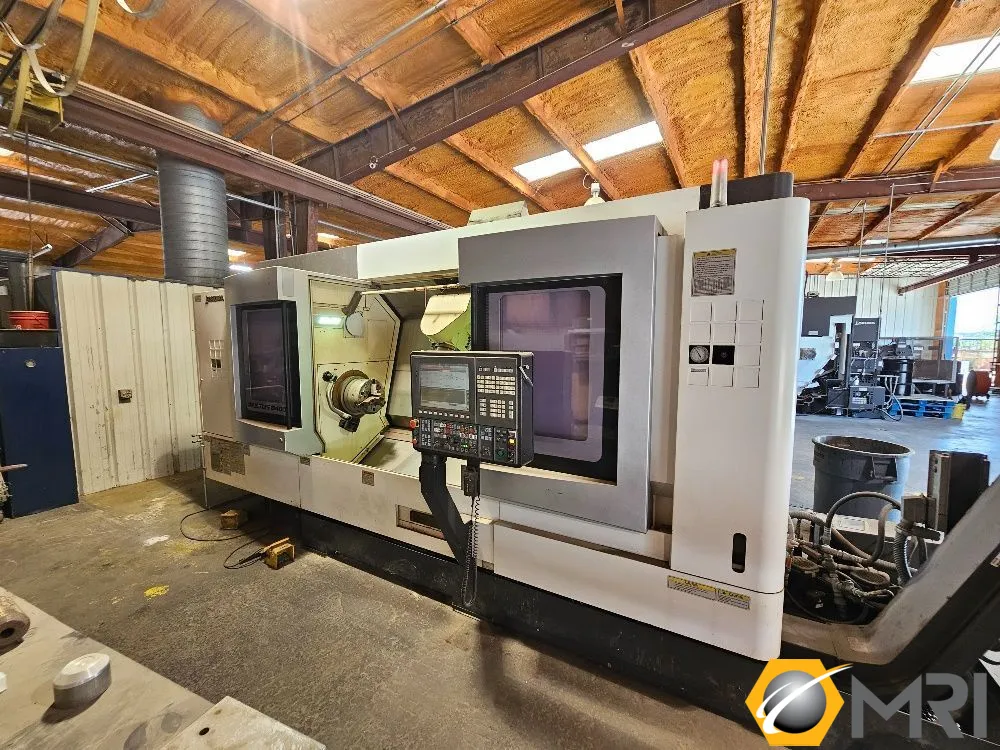

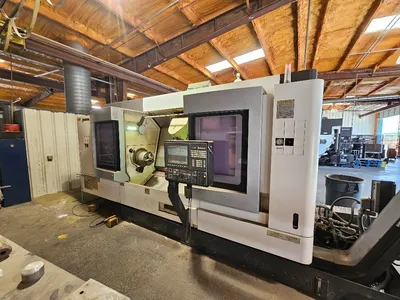

2012 OKUMA MULTUS B400II-W 5 AXIS CNC LATHE BIG BORE | JS 7612572
ConditionUsed
1 available
OKUMA MULTUS B400II-W CNC Lathe, 5-axis or more, 2012 model. Used but in solid working condition. Ideal for high-precision machining tasks. Enhance your production capabilities with this versatile equipment.
Okuma OSP P300S CNC Control- New monitor installed in 2025
Hi-Cut Pro
Hi-G Control
Admac 3D Virtual Monitor

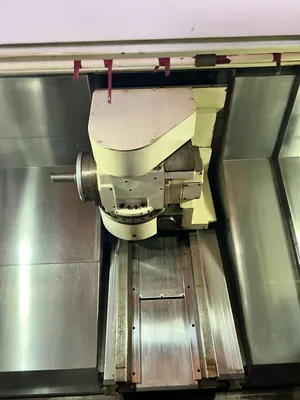

Full Contouring B-Axis Universal Head
Lathe Tool Indexing

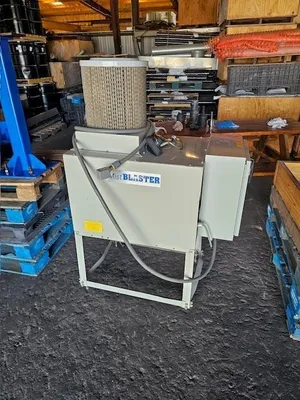

Complete with Chip Blaster 1
1000 PSI Coolant Though Spindle
Touch Setter
Touch Sensor
H1 Turret
Rosedale Filter System
Max Swing Over Saddle: 27.95"
Max Machining Diameter: 27.95"

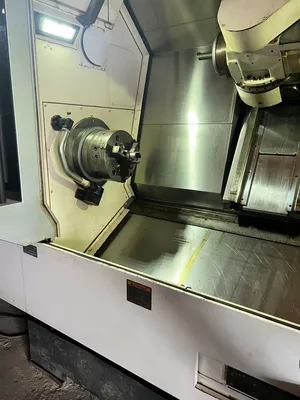

Main Spindle Chuck Size: 12" Kitagawa B-12" 3-Jaw Power Chuck

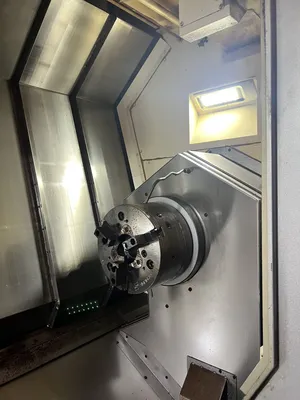

sub spindle chuck size: 12" Kitagawa B-12, 12" 3-Jaw Power Chuck
Max Working Distance Between Spindles: 59.06"
X-Axis (Cross Travel): 27.17"
Z-Axis (Longitudinal Travel): 60.83"
Y-Axis Travel: 9.02"
B-Axis (Rotation of Universal Head): 225°
C-Axis (Indexing Positions of Main Spindle): .001°
Spindle Bore: 4.33"
Spindle Nose: A2-11
Spindle Horsepower: 40 HP
SPINDLE SPEED RANGE: 38 - 3,800 RPM

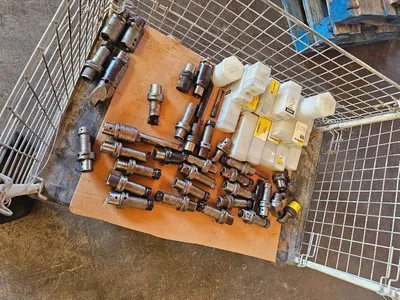

Capacity: 80 Station Capto C6 ATC
Live Tooling Horsepower: 14 HP
Live Tooling Speed Range: 90 - 6,000 RPM
B-axis range: 225°
0.001° with 6,000 rpm:
Main spindle and Sub-spindle: 12" Kitagawa B-15 12" 3-Jaw Power Chuck
5 components for shipping the Multus:
Dimensions Below: L x W x H:
Machine: 193”X9’X9’
Chip Conveyor: 200”X49 1/2”X6’
Chip Blaster: 25 ½”X 54”X 80”
Spindle Chiller: 40 ½”X14 ¼”X39”
Oil Cooler: 17 ¾” X 17”X39”
Weight: 34,000lbs
