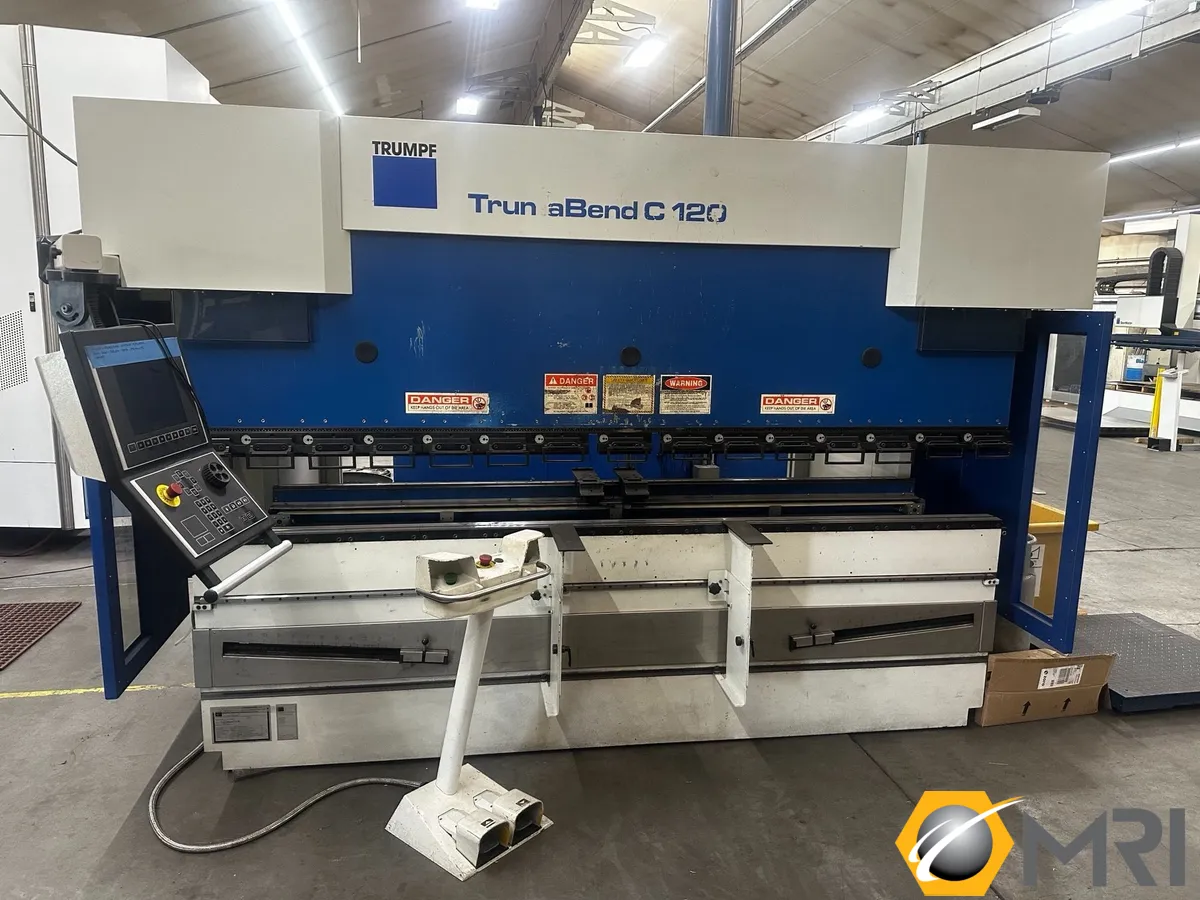

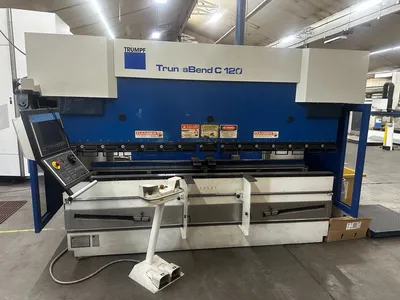

TRUMPF TRUMABEND C120 CNC PRESS BRAKE, NEW: 2007
ConditionUsed
1 available
132 TONS, 10' OVERALL, 6-AXIS DELEM CNC CONTROL, 4-AXIS PROGRAMMABLE BACK-GAUGE, Y1-Y2 RAM
DELEM DA65TWV CONTROL
3D VISUALIZATION
4-AXIS BACK-GAUGE
INDEPENDENT RAM SCALES (Y1-Y2)
(2) FRONT SUPPORTS
2 HAND / FOOT SWITCH PEDESTAL
TRUMPF QUICKCLAMP HOLDERS
NETWORKING
TONNAGE: 132
STROKE: 8"
MAX. BED/RAM CLEARANCE: 18.6"
OPEN HEIGHT: 13.4"
RAM INCLINATION: (+/-) 0.12"
BENDING LENGTH: 122"
DISTANCE BETWEEN HOUSINGS: 106"
THROAT DEPTH: 16.5"
BED WIDTH: 4"
WORKING HEIGHT: 39"
X-AXIS TRAVEL: 20"
APPROX. WEIGHT: 15,432 LBS
APPROX. DIMENSIONS: 145"(L) x 78"(W) x 106"(H)
