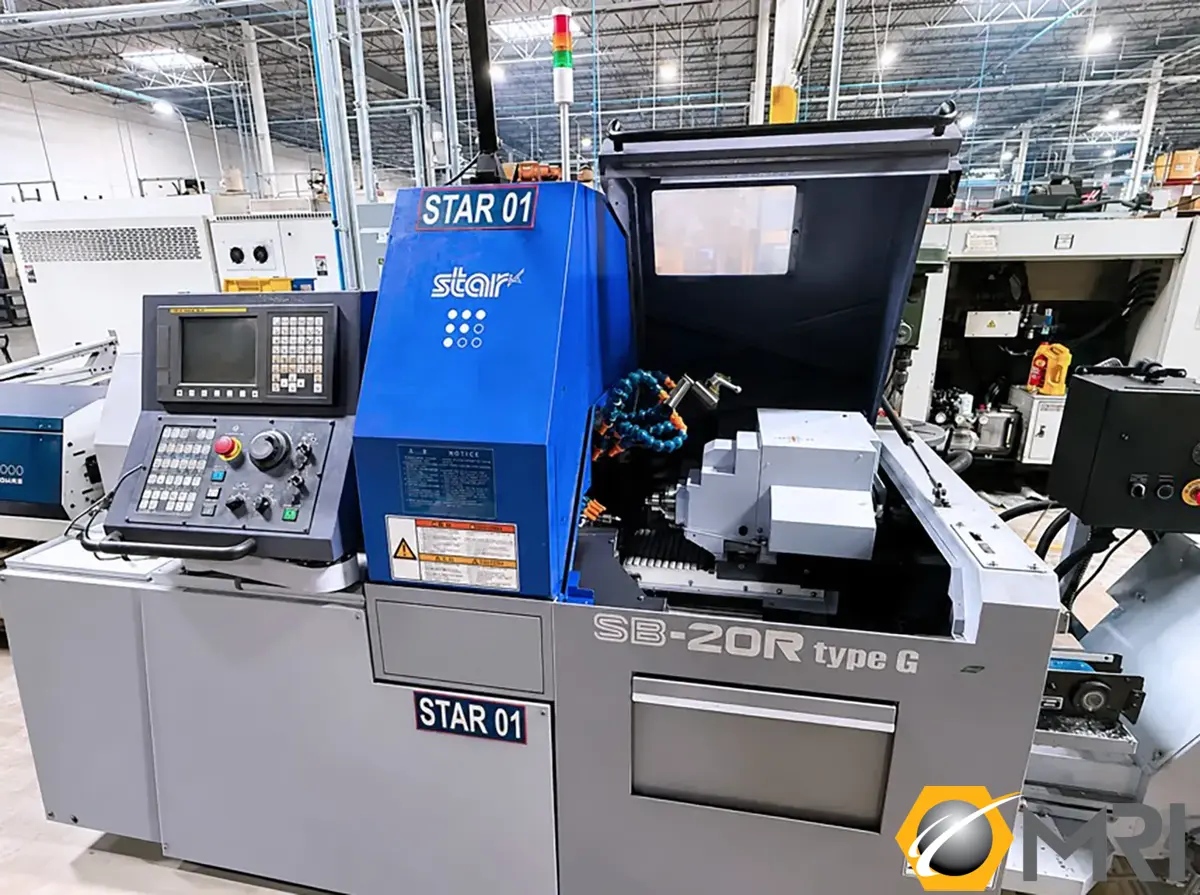

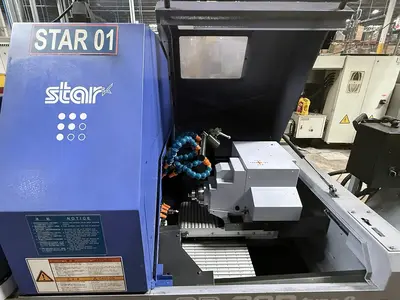

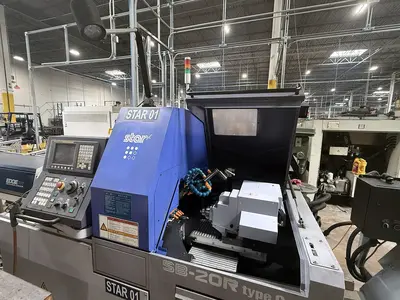

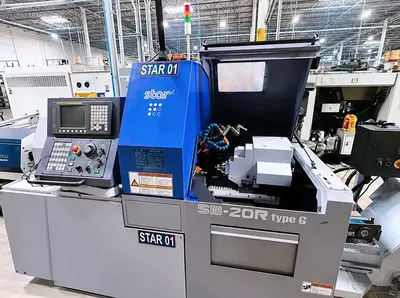

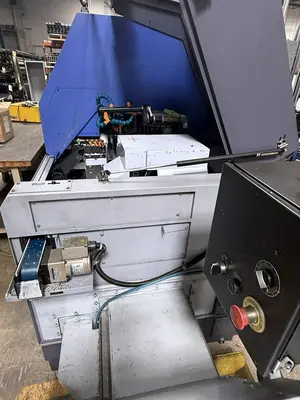

2021 STAR SB20R CNC SWISS LATHE | IH 7612580

machine specification
Manufacturer Star Micronics
Machine Type: Swiss-Type Sliding Headstock CNC Lathe
Maximum Bar Capacity 0.787" (20 mm)
Maximum Machining Length Approximately 8" (205 mm) with guide bushing
Maximum Turning Diameter 20 mm (0.787")
Main Spindle Speed Up to 10,000 RPM
Sub Spindle Speed Up to 10,000 RPM
Main Spindle Motor Approximately 5 HP (3.7 kW)
Sub Spindle Motor Approximately 2.7 HP (2.0 kW)
Rapid Traverse Up to 35 m/min (1,378 IPM)
Number of Axes 7 Controlled Axes
Positioning Accuracy ±0.00008" (±0.002 mm)
Repeatability ±0.00004" (±0.001 mm)
Coolant System Flood coolant with high-pressure capable plumbing
Electrical 208-230V / 3 Phase / 60 Hz
Tool Capacities
Turning Tools
Up to 21 turning tools
Multiple OD turning stations
Multiple ID live stations
Gang tooling platform
Live Tooling
Up to 8 live tools
Rigid Tapping
C-axis interpolation
Approximate Weight 8000 lbs
Dims 125" x 60" x 76"
Option / equipped with

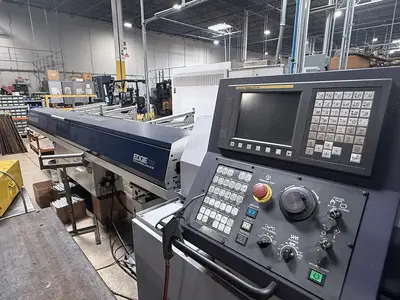

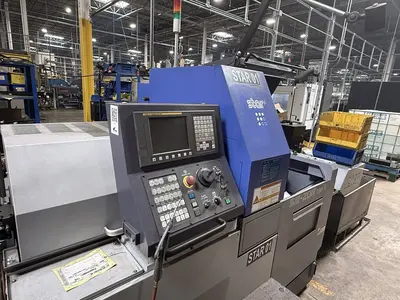

FANUC Series 0i-TF CNC Control

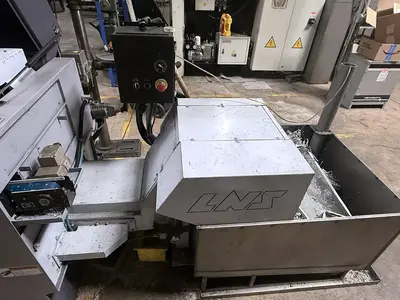

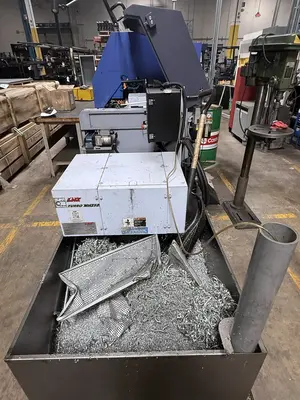

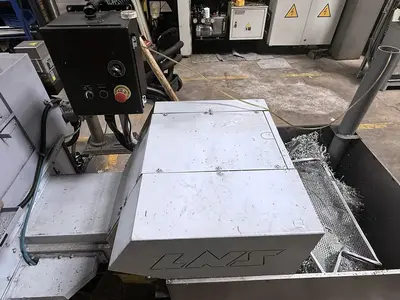

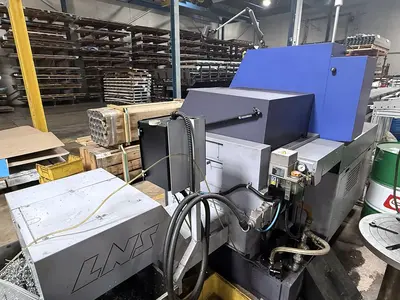

LNS Turbo MH250 Automatic Chip Conveyor

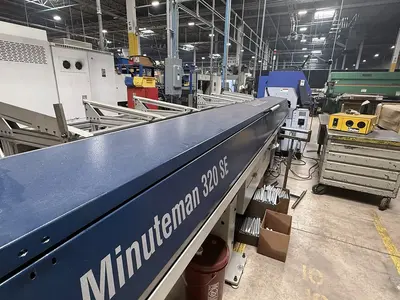

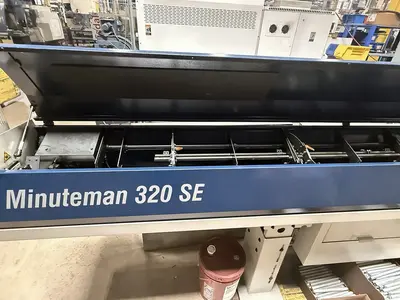

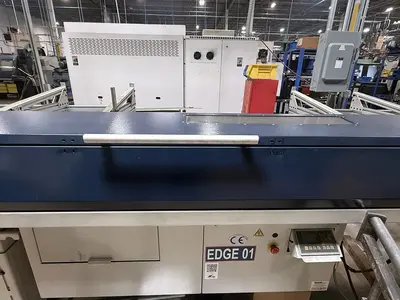

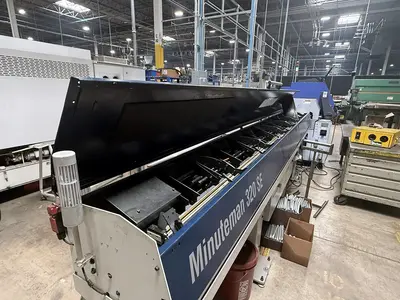

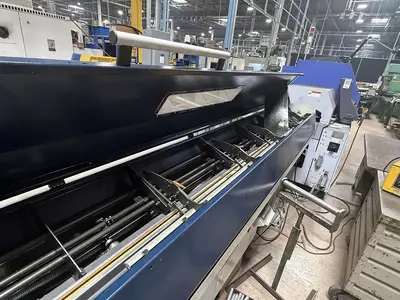

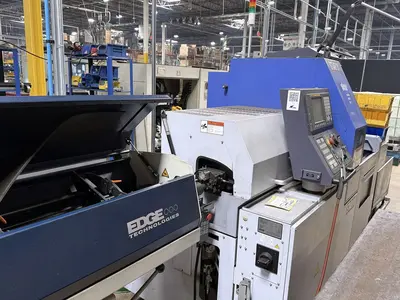

Edge Technologies Minuteman 320 SE Bar Loading Magazine
equipped with (2) Guide Channel Sets
(2) Telescoping noses
(1) OD Bar Stock Collet
Swiss headstock synchronization device
Auto remnant retraction
self-centering gripper
(2) Pushers
(2) Pusher Collets
and (1) Spindle Liner LOW HOURS on spindle
Full manuals for the Barfeed and Star SB-R20
Parts Ejector Guide Bushing
Air Purge for Revolving Guide Brush
Main Spindle Air Purge

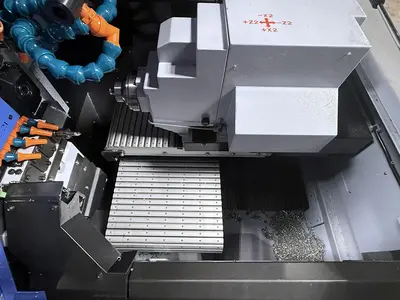

Sub Spindle
C-Axis Main Spindle
C-Axis Sub Spindle
Diametric Direction Command
Live Tooling Capability
Cross Milling
Cross Drilling
End Milling
End Drilling
5-Spindle Cross Drilling Unit
Broken Cut-Off Tool Detector
G.B./Non G.B. Change Version

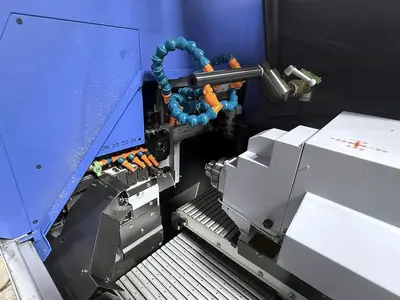

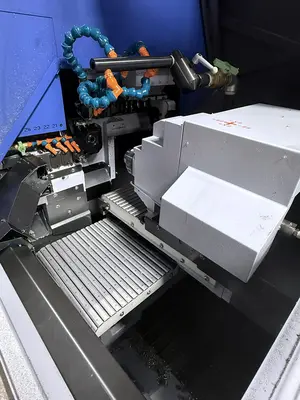

Gang Tool Slide
Automatic Parts Catcher
Automatic Parts Conveyor
High-Pressure Coolant Plumbing
Fully Enclosed Splash Guard
Auto-power shut off function
Work Light
Coolant System
Chip Conveyor / Chip Collection System
Servo Bar Feed Interface
Hydraulic System
Automatic Lubrication System
Foot Switch
Factory Safety Enclosure
