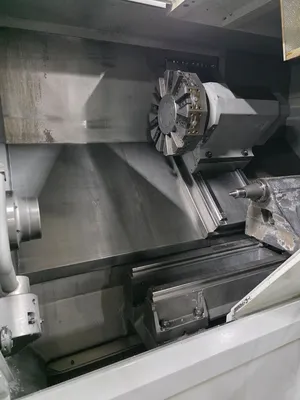

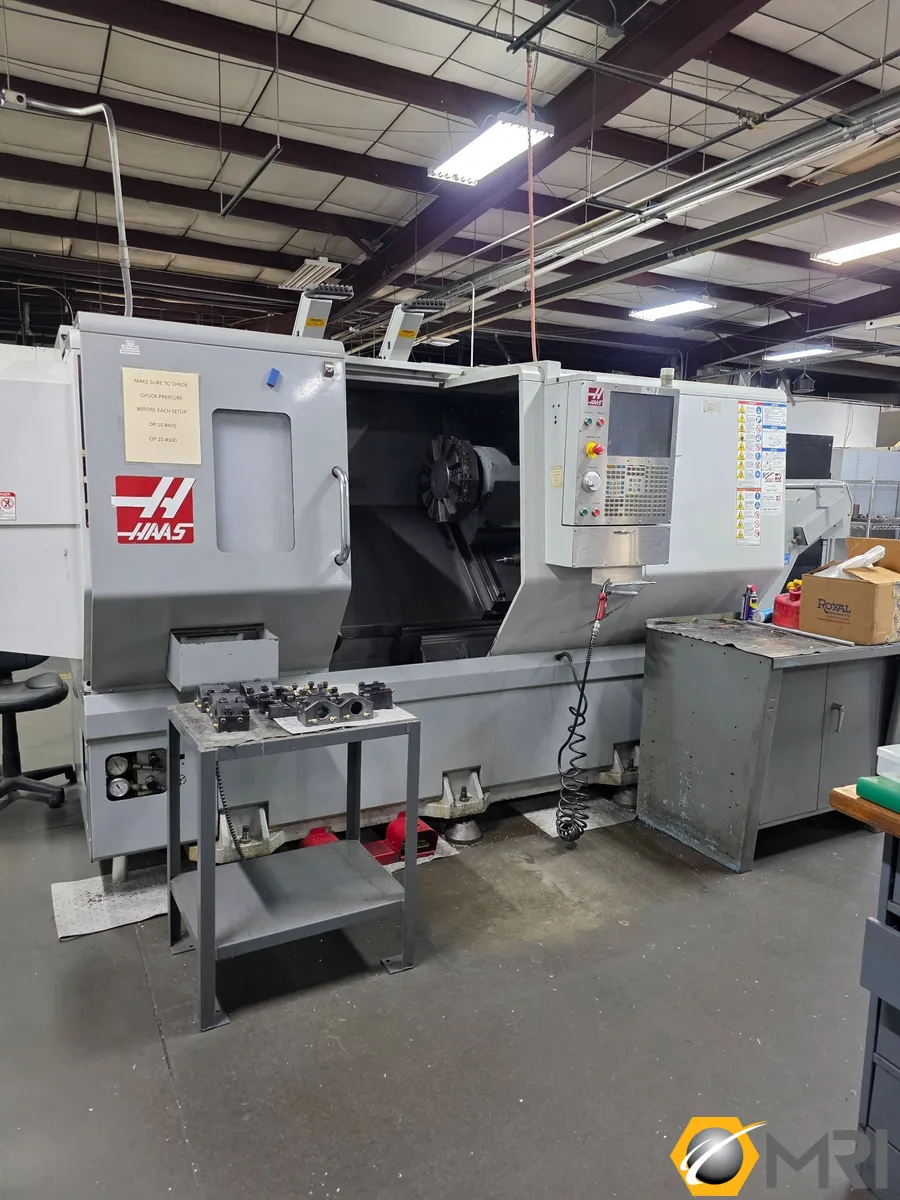

2009 HAAS ST-30 CNC LATHE

Sell Your HAAS ST-30
877-568-2121
inquiries@machineryresources.com
ConditionUsed
1 available
Sell Your HAAS ST-30

Overview

Type:
CNC Lathes (Turning Centers)
Manufacturer:
HAAS
Model:
ST-30
Year:
2009
Stock #:
7612587
Status:
For Sale

Description

HAAS ST-30 CNC LATHE (TURNING CENTERS) NEW IN 2009

Tail Stock

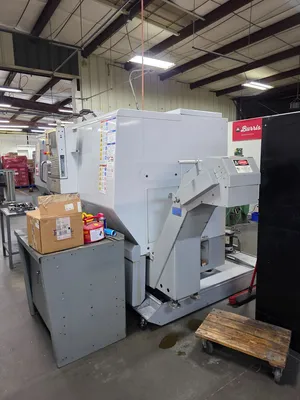

Chip Conveyor

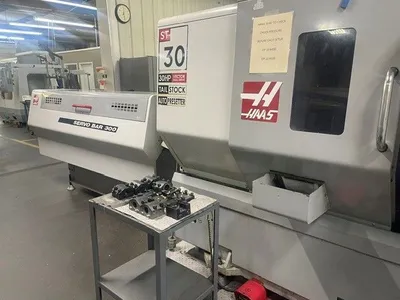

Servo Bar 300 Bar Feed

Swing31"787.4 mm
Machining Length26"660.4 mm
# Axis22
Bar Capacity3"76.2 mm
Chuck Size10"254 mm
Distance Between Centers32"812.8 mm
Turning Diameter21"533.4 mm
Power30 hp22.4 kW
Max RPM3,400 RPM3,400 RPM
TailstockYesYes
Live ToolingNoNo
Sub SpindleNoNo
# of Turrets11
Hole Thru3.5 in
ControlCNCCNC
Dimensions171" x 90.0" x 98"171" x 90.0" x 98"
Weight10,900 lbs10,900 lbs

SPECS:
BAR CAPACITY: 3"
CHUCK SIZE: 10"
SPINDLE SPEED: 3,400 RPM
SPINDLE MOTOR: 40 HP
X AXIS TRAVEL: 12.5"
Z AXIS TRAVEL: 26"
RAPID RATE Z AXIS: 945 IPM
TURRET TOOLS: 12 STATION
RAPID RATE X AXIS: 945 IPM
MAX TURNING DIA: 21"
MAX TURNING LENGTH: 26"
MAX SWING: 31"
MAX THRUST X: 4100 LBF
MAX THRUST Z: 5100 LBF
SPINDLE NOSE: A2-6 / A2-5
MAX TORQUE: 300 FT-LBF
SPINDLE BORE: 3.5"
COOLANT CAP: 55 GAL

Machine Dimensions: 171.0 in x 90.0 in x 98.0 in
WEIGHT: 10,900 lbs

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
