AMADA HG 1003 ARS ROBTIC PRESS BRAKE WITH AUTOMATIC TOOL CHANGER, NEW: 2017
ConditionUsed
1 available

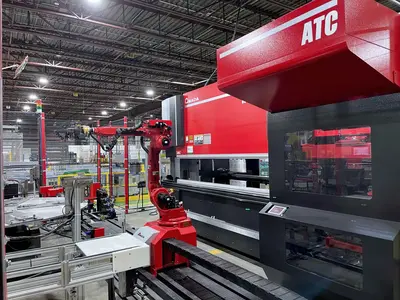

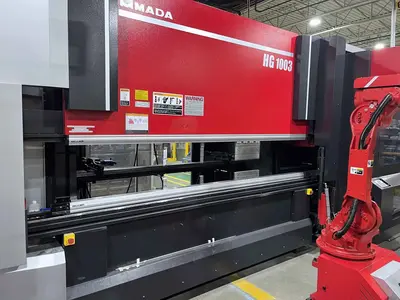

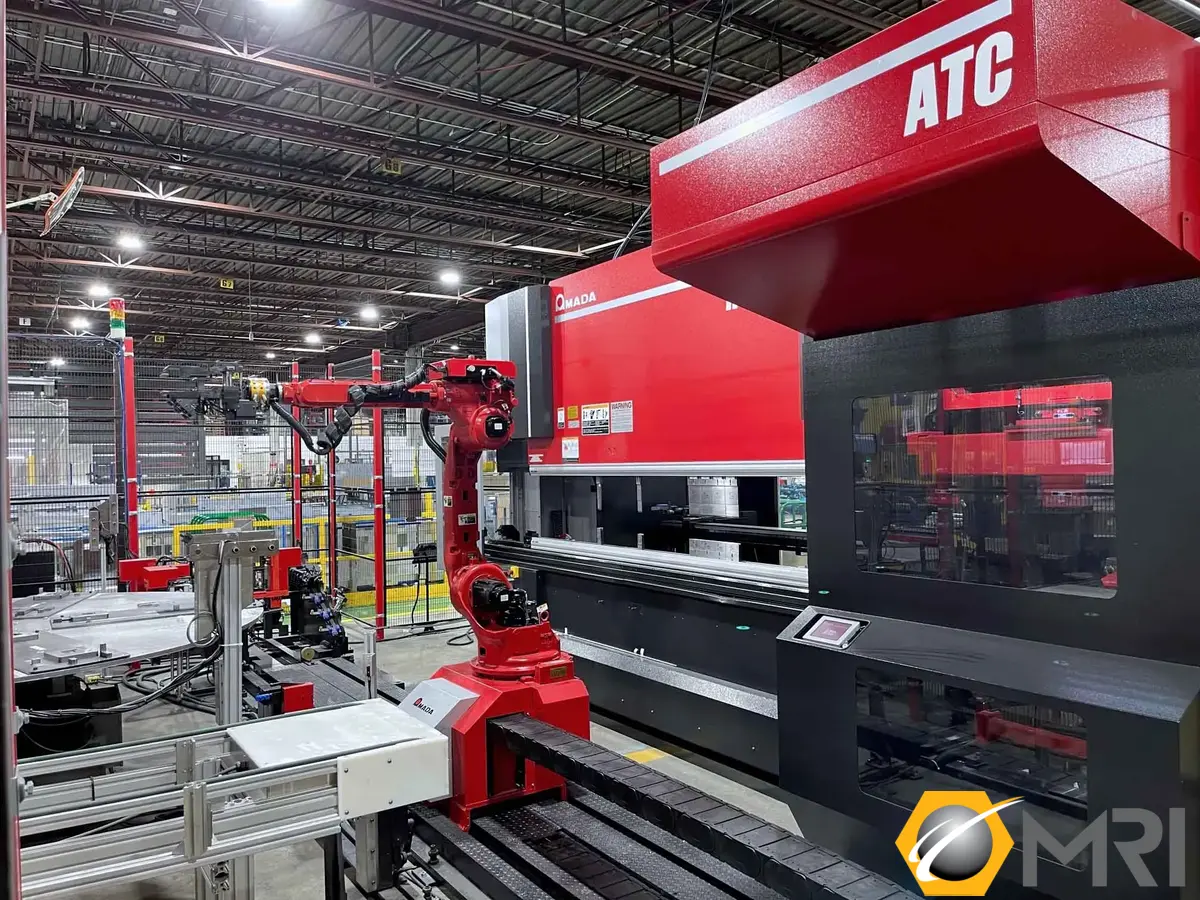

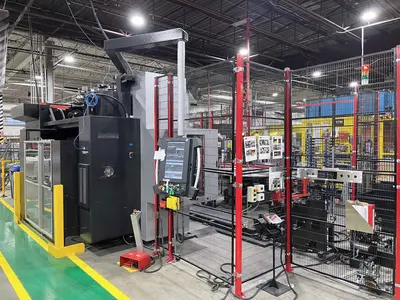

The HG-1003ARs has adopted a high-end press brake, dubbed HG-ATC and equipped with a new hybrid drive system and a tool changer enabling automatic setup for step bend layout. Material loading, material handling during bending, and part unloading are all performed by a single 7-axis articulated robot capable of various motions.
The HG-1003ARs system can bend complex-shaped parts without setups and can run for long hours.
Additional HG 1003 ARS features and benefits include:
- Ideal solution for variable lot sizes and complex tool layouts
- Increase the number of tool setups performed each day
- Automatic Gripper Changer (AGC) is equipped with up to nine grippers that provide the robot with
maximum part handling versatility.
- ATC stores 86′ (26.4m) of robot-loaded tooling
- New AMNC-3i control
- Potentiometer back-gauge system with additional side gauge
AMADA AMNC 3I CONRTOL
8-AXIS PROGRMMABLE BACK-GAUGE: 6-AXIS + 2-AXIS L-SHIFT

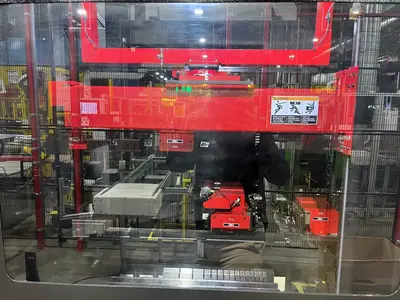

AUTOMATIC TOOL CHANGER

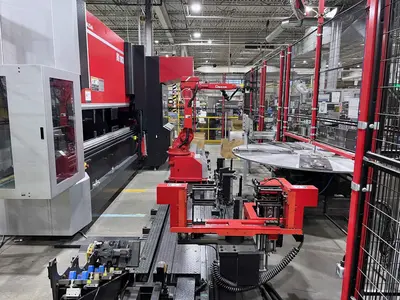

PARTS ROBOT
PARTS CARROUSEL
PRESS BRAKE SECIFICATIONS:
- TONNAGE: 110 TONS
- TABLE LENGTH: 122.4”
- MAX. BENDING LENGTH: 120.5”
- DISTANCE BETWEEN UPRIGHTS: 106.3”
- THROAT DEPTH: 17.7”
- LENGTH OF STROKE: 9.8”
- OPEN HEIGHT: 23.5”
- SPEED:
- - MAX. APPROACH SPEED: 8.66 INCHES PER SECOND
- - MAX. BENDING SPEED: 0.78 INCHES PER SECOND
- - MAX. RETURN SPEED: 9.84 INCHES PER SECOND
- HYDRAULIC OIL RESERVOIR: 15.7 GAL
- APPROX. BRAKE DIMENSIONS: 245"(L) x 127"(W) x 116"(H)
- APPROX. WEIGHT: 26,898 LBS
AUTOMATIC TOOL CHANGER SPECIFICATIONS:
- TOOL STYLE: AMTS IIIS ATC
- PUNCH STOCKERS: 15
- DIE STOCKERS: 18.
- ATC LOCATION: RIGHT HAND
- AUTO TOOL LAYOUT RANGE: 118.1”
- MINIMUM TOOL PITCH: 0.196”
- “V” RANGE: 0.157-1.57”
- PUNCH REVERSAL UNIT: STOCKER 1-12 REVERSIBLE ONLY
- PUNCH HEIGHT: 8.7” STANDARD, 9.4” SPECIAL
ROBOT SPECIFICATIONS:
- MODEL: HGROBOT020
- MASS OF CAPACITY: 44 LB
- MASS OF MACHINE: 6,173 LBS
- MOTOR RATED OUT PUT: 1.8 KW
- MAX. AXIS RANGE:
- - S-AXIS: 360°
- - L-AXIS: 265°
- - U-AXIS: 420°
- - R-AXIS: 400°
- - B-AXIS: 280°
- - T-AXIS: 720°
- - E-AXIS: 252"
- MAX AXIS SPEED:
- - S-AXIS: 150° PS
- - L-AXIS: 265° PS
- - U-AXIS: 420° PS
- - R-AXIS: 400° PS
- - B-AXIS: 280° PS
- - T-AXIS: 720° PS
- - E-AXIS: 78.7" PS
