2018 CITIZEN MIYANO BNA-42S2 CNC LATHE | IH 7612596

2018 CITIZEN MIYANO BNA-42S2 CNC LATHE | IH 7612596

Sell Your CITIZEN MIYANO BNA-42S2
877-568-2121
inquiries@machineryresources.com
ConditionUsed
1 available
Sell Your CITIZEN MIYANO BNA-42S2

Overview

Type:
CNC Lathes (Turning Centers)
Manufacturer:
CITIZEN MIYANO
Model:
BNA-42S2
Stock #:
7612596
Status:
For Sale

Description

CITIZEN MIYANO BNA-42S2 CNC Lathe. Pre-owned condition, 3.93" machining length, 5.0" chuck size, 1.5" bar capacity, 10.0 HP, 6000 RPM max, equipped with live tooling and sub spindle. Reliable for precision turning tasks.

Live Tool
Patriot 551 bar feeder
Fanuc 0iTD CNC
LNS Chip Conveyor
Parts Conveyor

Machining Length3.93"99.822 mm
Bar Capacity1.5"38.1 mm
Chuck Size5"127 mm
Power5.5 hp4.1 kW
Max RPM5,000 RPM5,000 RPM
Live ToolingYesYes
Sub SpindleYesYes

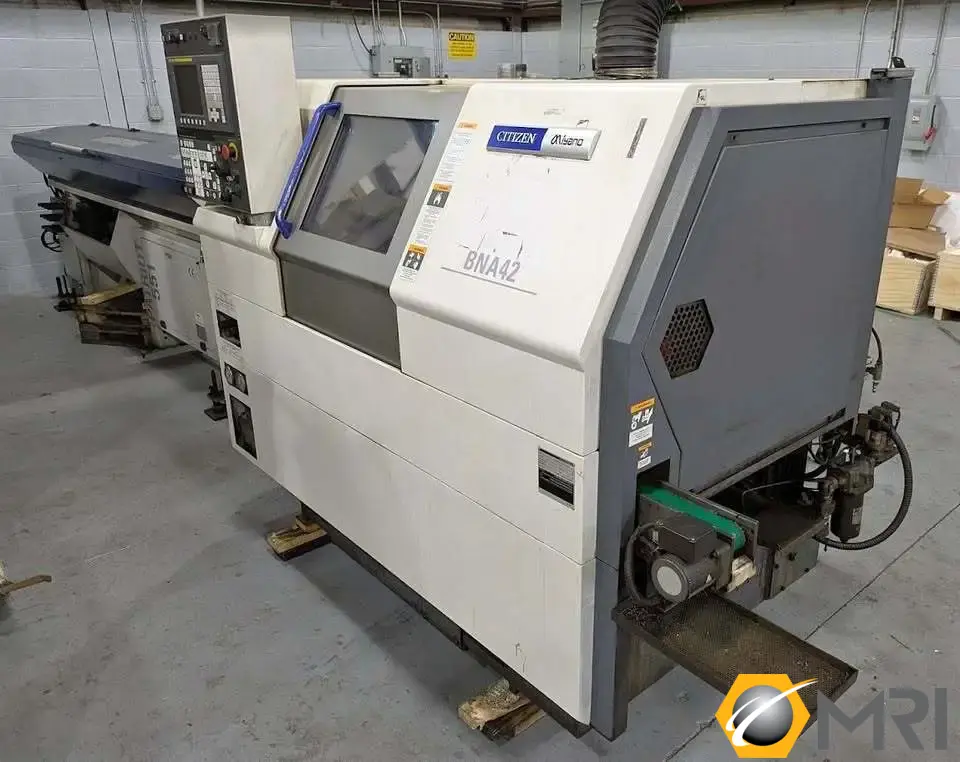

Citizen Miyano BNA-42S2 CNC Lathe (2018)
Chuck Size: 5"
Spindle Speed: 5,000 RPM
Spindle Motor: 5.53 HP
maximum bar diameter SP1: 42mm
maximum bar diameter SP2: 34mm
standard machining length: 100mm
number of spindles: 2
Turret has 8x positions, each with live tooling.
draw tube diameter SP1: 43mm
draw tube diameter SP2: 30mm
rapid feed rate X1 axis: 20m/min
rapid feed rate Z1 axis: 20m/min
rapid feed rate B axis: 20m/min
live tool motor: 2.8/1.0kW (16 Nm)

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
