DMG MORI NLX2000SY/500 MULTI AXIS CNC LATHE NEW: 2018 | AG

DMG MORI NLX2000SY/500 MULTI AXIS CNC LATHE NEW: 2018 | AG

Sell Your DMG MORI NLX-2000SY/ 500
877-568-2121
inquiries@machineryresources.com
ConditionUsed
1 available
Sell Your DMG MORI NLX-2000SY/ 500

Overview

Type:
CNC LATHE WITH 5-AXIS OR MORE
Manufacturer:
DMG MORI
Model:
NLX-2000SY/ 500
Year:
2018
Stock #:
7612610
Status:
For Sale

Description

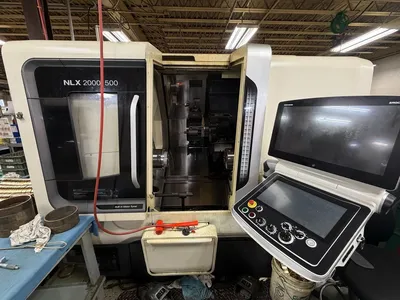

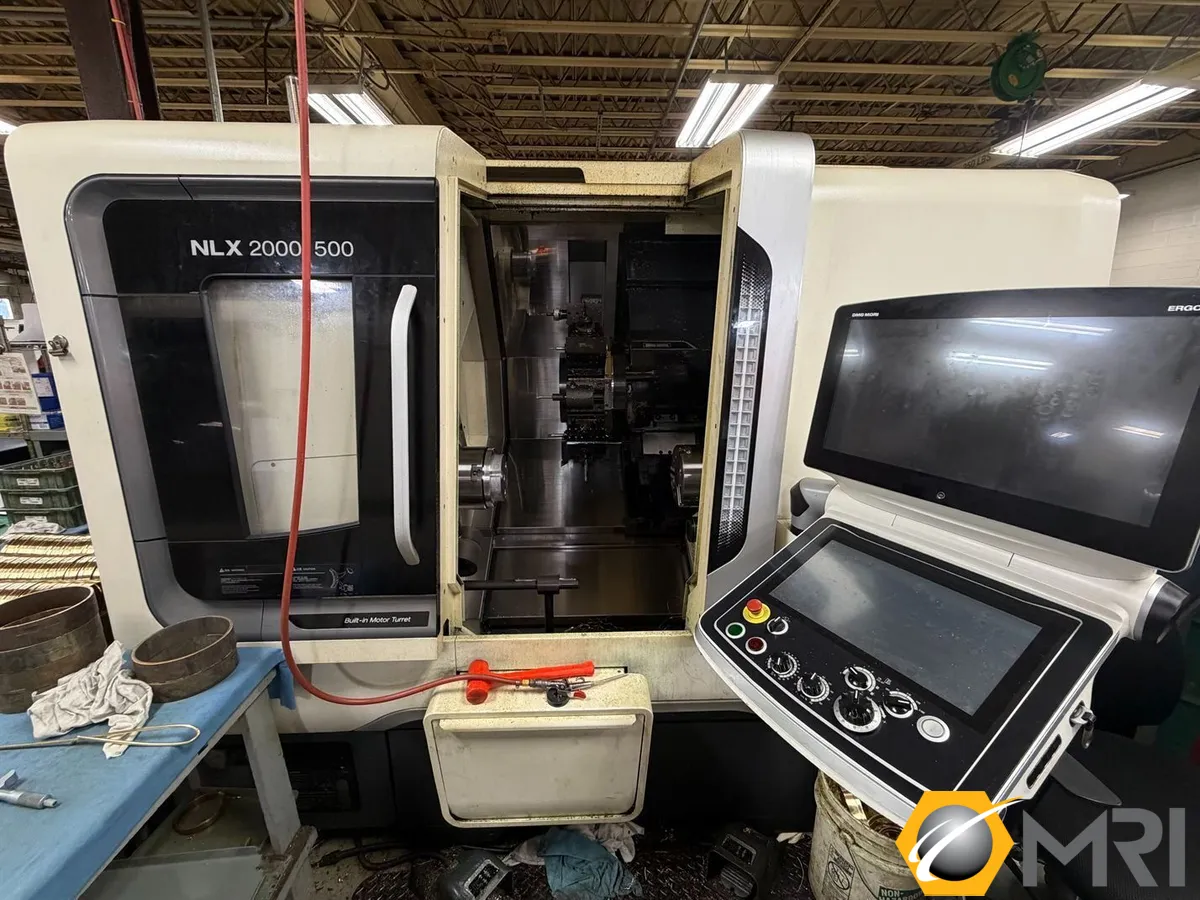

DMG MORI NLX-2000SY/500 multi-axis CNC lathe, new in 2018, offers 5-axis precision. Features 29.7" swing, 20.2" machining length, and 6,000 RPM. Includes FMB barloader, LNS chip conveyor, mist collector, and more tooling. Ideal for diverse machining needs.

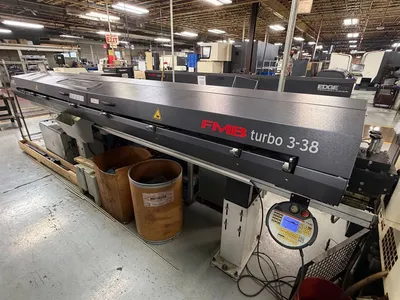

FMB Magazine Barloader
LNS Chip Conveyor
parts catcher
tool setter
Misc Tooling

# Axis55
Swing29.7"754.38 mm
Machining Length20.2"513.08 mm
Chuck Size8"203.2 mm
Bar Capacity2"50.8 mm
Power20 hp14.9 kW
Max RPM6,000 RPM6,000 RPM
ControlCNCCNC
Dimensions140.2" X 82" X 84.4"140.2" X 82" X 84.4"
Weight11,880 LBS11,880 LBS

Max. X-axis travel: 10.2 in.
Max. Y-axis travel: 3.9 in.
Max. Z-axis travel: 23.2 in.

Workpiece
Max. workpiece diameter: 15.2 in.
Max. workpiece length: 20.3 in.
Max. bar diameter: 2 in.

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
