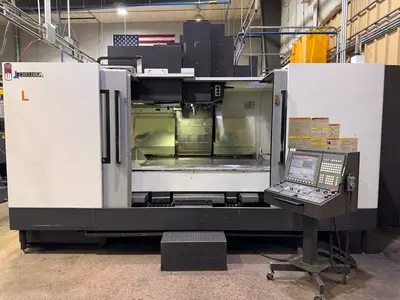

2017 OKUMA MILLAC 761VII VERTICAL MACHINING CENTER | JS 7612615
ConditionUsed
1 available

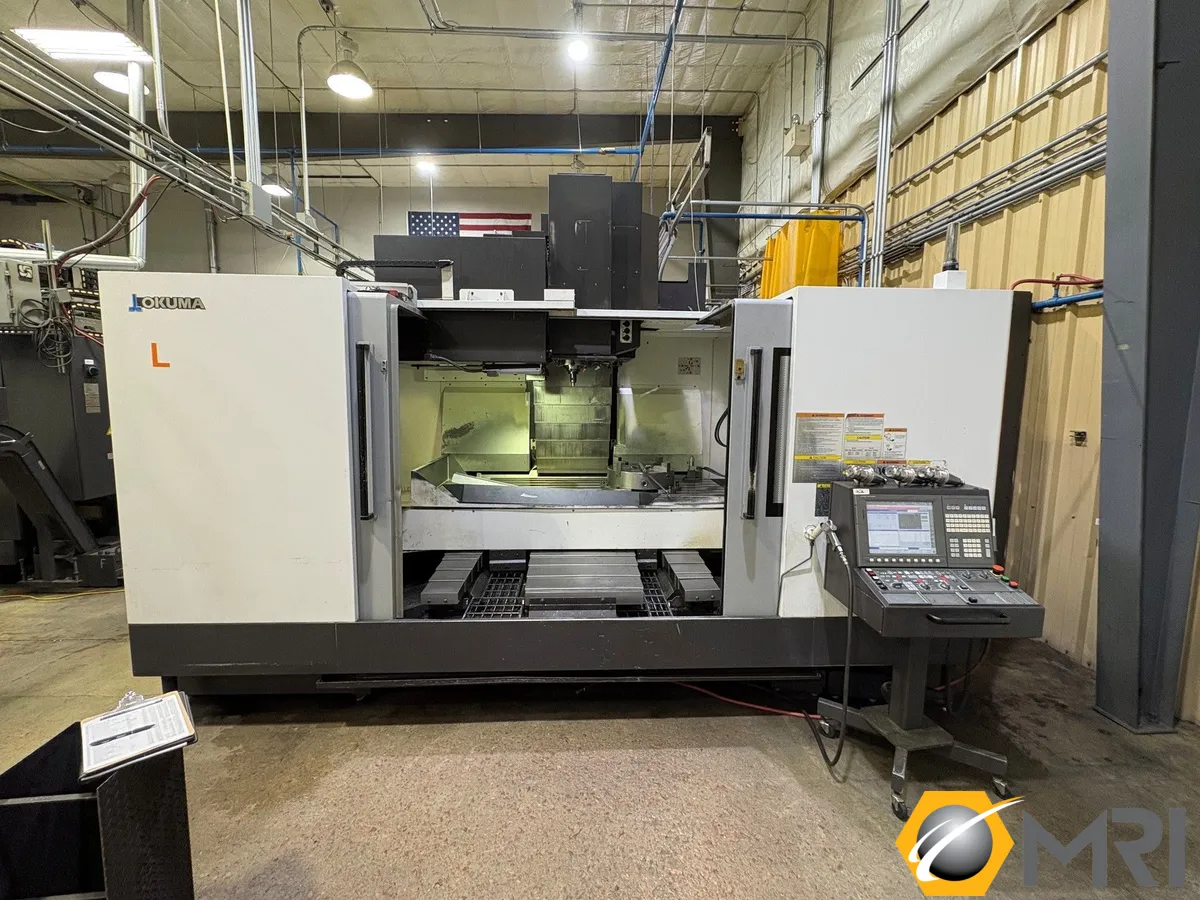

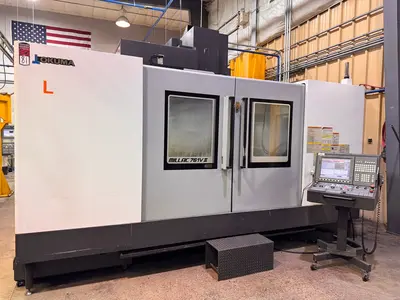

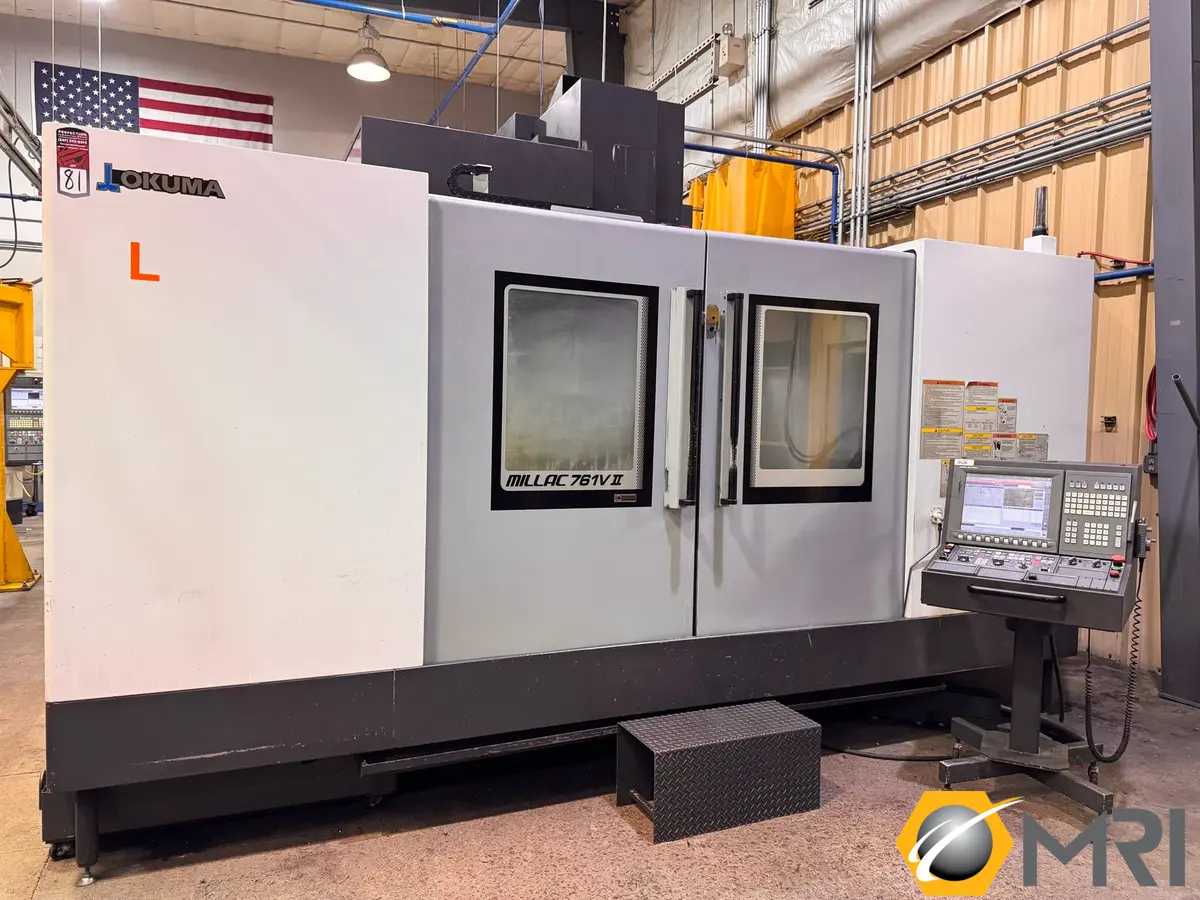

2017 OKUMA MILLAC 761VII Vertical Machining Center, used. Features 60.63 x 29.92 x 25.98" XYZ travels, 6000 RPM, 36-tool ATC, and 28.35 x 70.87" table. Ideal for precision machining with 4-axis capability.

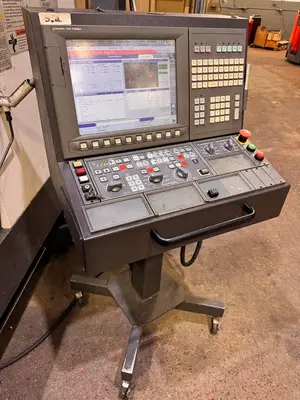

OSP 300M CNC CONTROL
CHIP CONVEYOR

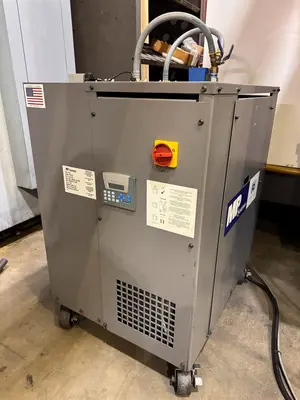

1,000 PSI HP COOLANT

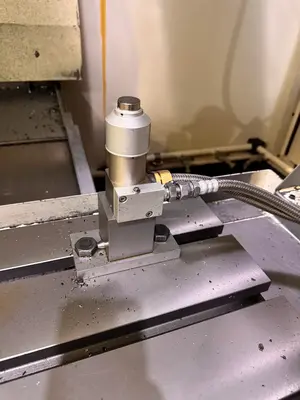

TOOL BREAKAGE DETECTION
Travel & Table Capacity
X-Axis Travel: 60.63 inches (1,540 mm)
Y-Axis Travel: 29.92 inches (760 mm)
Z-Axis Travel: 25.98 inches (660 mm)

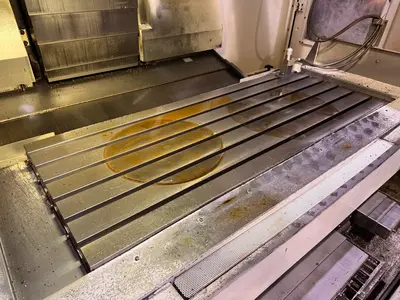

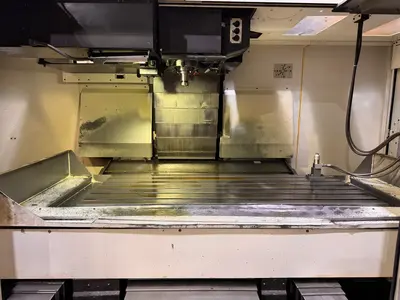

Table Dimensions: 70.87 x 28.35 inches (1,800 x 720 mm)
Maximum Table Load: 4,400 lbs (2,000 kg)

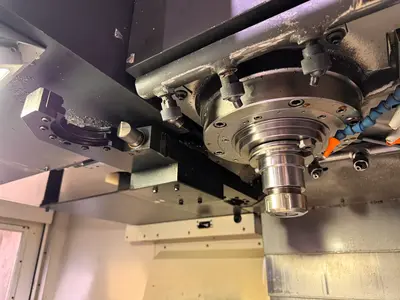

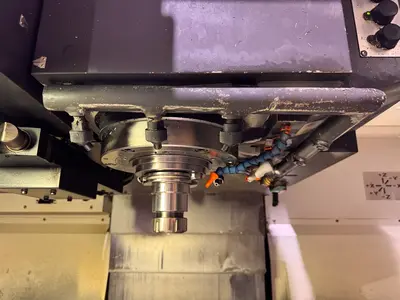

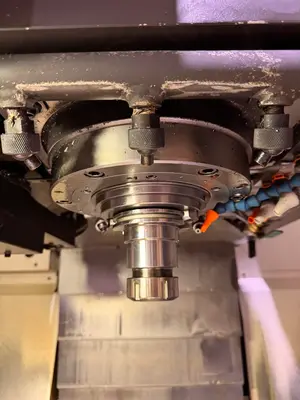

Spindle & Motor
Spindle Speed Range: 4,000 RPM
Spindle Taper: CAT 50
Spindle Motor Power: 25 HP / 20 HP (30-minute / continuous rating, approx. 18.5 / 15 kW
Feedrates & Tool Changer
Rapid Traverse (X, Y, Z): 630 IPM (16 m/min)
Tool Storage Capacity: Standard 36 tools (varies by configuration)
Max Tool Weight: 44 lbs (20 kg)
Max Tool Diameter: 4.72 in (adjacent) / 7.87 in (non-adjacent
