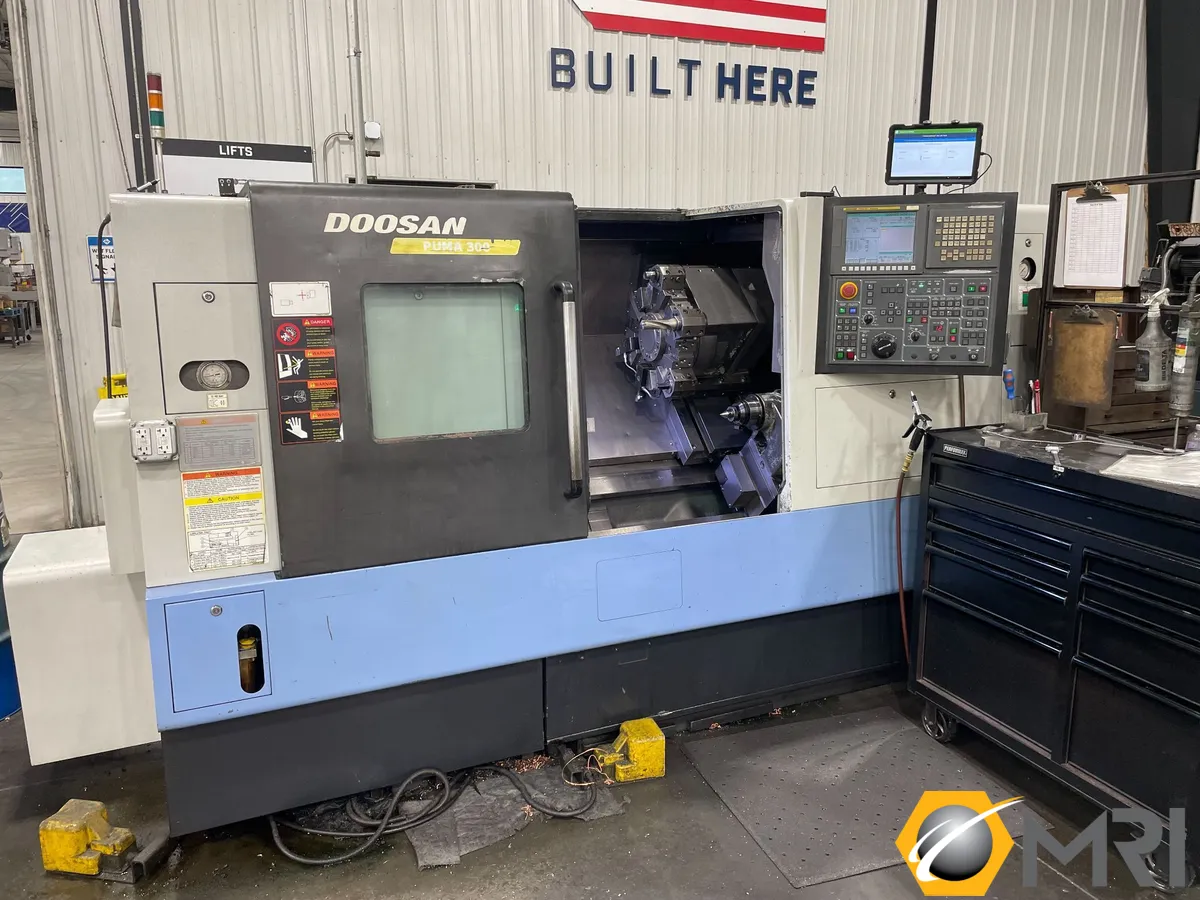

2011 Doosan Puma 300C CNC Lathe | 7612617 MM
ConditionUsed
1 available
Summary
$39,900.00
USD
Estimated Monthly
$800.00
Financing Term
60 months
Estimated monthly payment. Subject to credit approval. Not a commitment to lend.
Summary
Estimated Monthly
$800.00
Financing Term
60 months
Estimated monthly payment. Subject to credit approval. Not a commitment to lend.
The Doosan Puma 300C is a heavy-duty, 2-axis CNC turning center featuring a 12-inch chuck, a 35 HP spindle motor with a 2,800 RPM max speed, a 4.5-inch spindle bore, and a 12-station turret
| Chip Conveyor |
Chip Conveyor
Tailstock
Tool Setter

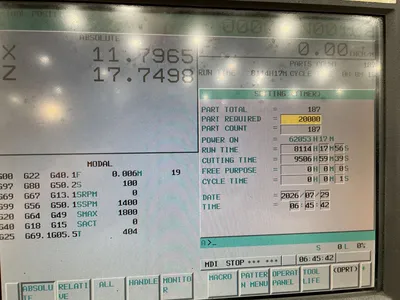

Cutting 9506
Run Time 8114
Max Turning Diameter: 15.7 inch
Max Turning Length: 24.8 inch
Max Bar Capacity: 4.05 inch
Swing Over Bed: 22.4 inch
Swing Over Carriage: 17.7 inch
Distance Between Centers: 27.8 inch
X Axis Travel: 11.1 inch
Z Axis Travel: 26.8 inch
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-11
Spindle Bore: 4.5 inch
Spindle Speed: 0 – 2800 RPM
Spindle Motor: 35 HP
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tailstock Taper: MT-4
Tailstock Quill Dia.: 3.97 inch
Tailstock Quill Travel: 4.7 inch
The Doosan Puma 300C is a heavy-duty, 2-axis CNC turning center featuring a 12-inch chuck, a 35 HP spindle motor with a 2,800 RPM max speed, a 4.5-inch spindle bore, and a 12-station turret
| Chip Conveyor |
Chip Conveyor
Tailstock
Tool Setter
Cutting 9506
Run Time 8114
Imperial
| Swing | 22" |
| Machining Length | 25" |
| # Axis | 2 |
| Bar Capacity | 4" |
| Chuck Size | 12" |
| Distance Between Centers | 27.8" |
| Turning Diameter | 15.7" |
| Power | 35 W |
| Max RPM | 2,800 RPM |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| # of Turrets | 1 |
| Hole Thru | 4.5 in |
| Control | CNC (CNC FANUC) |
| Dimensions | 148 inch x 77 inch x 80 inch High with Chip Conveyor |
| Weight | 12,600 |
Max Turning Diameter: 15.7 inch
Max Turning Length: 24.8 inch
Max Bar Capacity: 4.05 inch
Swing Over Bed: 22.4 inch
Swing Over Carriage: 17.7 inch
Distance Between Centers: 27.8 inch
X Axis Travel: 11.1 inch
Z Axis Travel: 26.8 inch
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-11
Spindle Bore: 4.5 inch
Spindle Speed: 0 – 2800 RPM
Spindle Motor: 35 HP
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tailstock Taper: MT-4
Tailstock Quill Dia.: 3.97 inch
Tailstock Quill Travel: 4.7 inch
