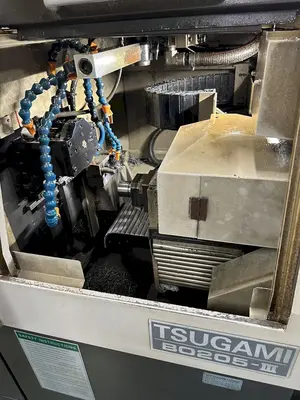

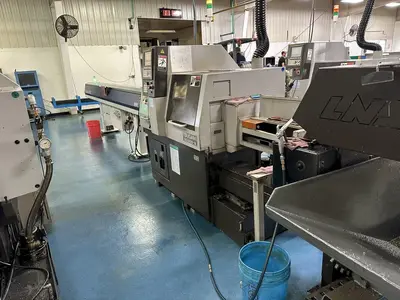

2018 TSUGAMI BO205-III SWISS LATHE | IH 7612629
ConditionUsed
1 available

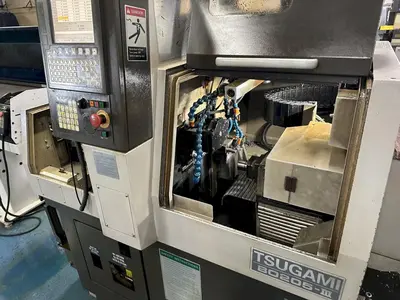

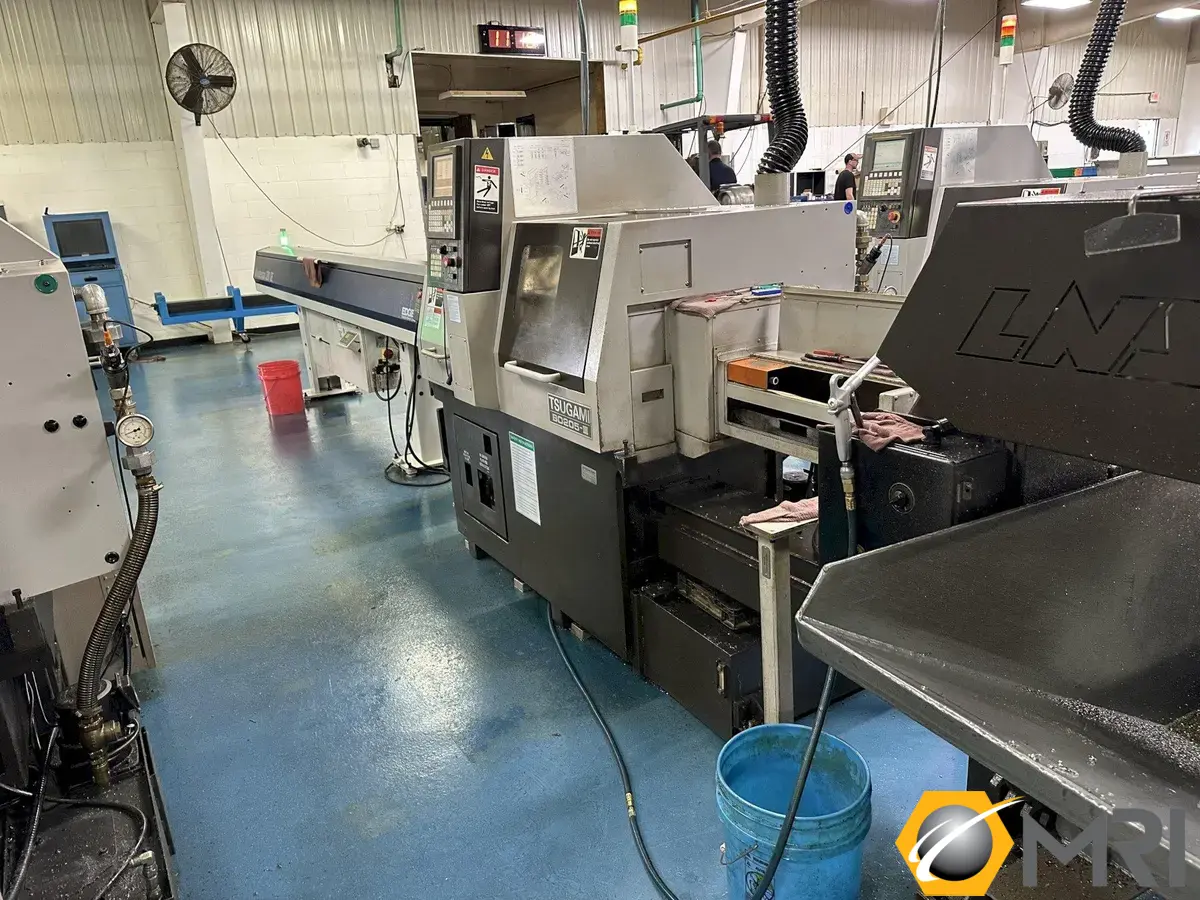

TSUGAMI BO205-III CNC Swiss Lathe from 2018 in used condition. Ideal for precision machining. Elevate your production process with this reliable piece of equipment. Contact us today for more information or to schedule a viewing.
TSUGAMI BO205-III CNC Swiss Lathe, New in 2018 - 4 Available (each at $132.500.00)

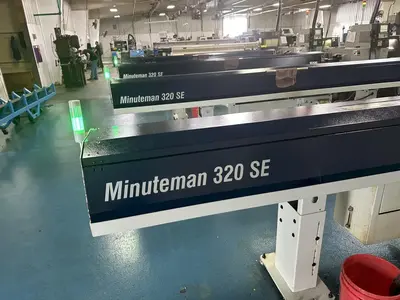

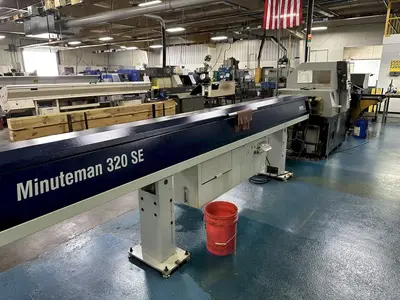

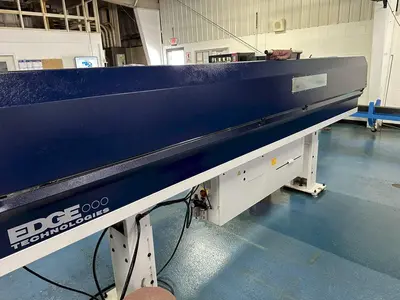

Edge Technologies Minuteman 320 SE Barfeed.

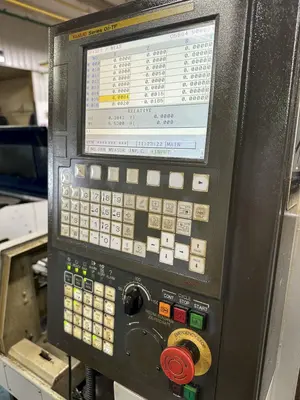

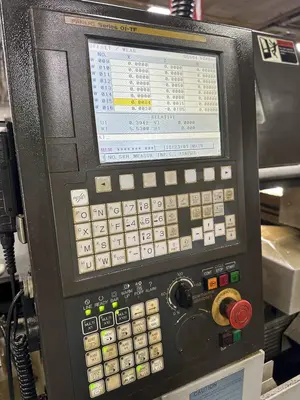

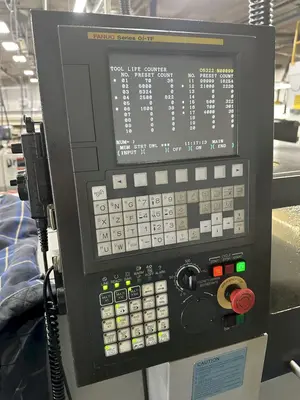

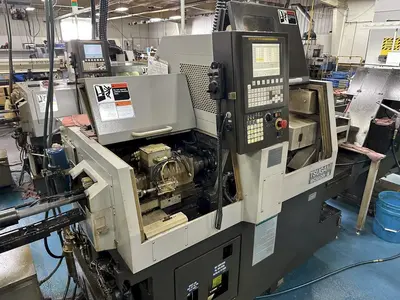

Fanuc Oi-TF

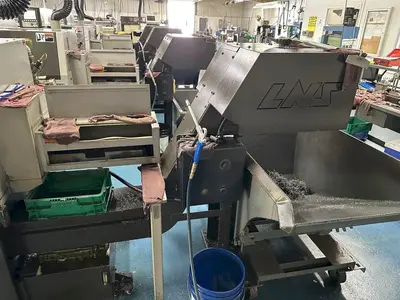

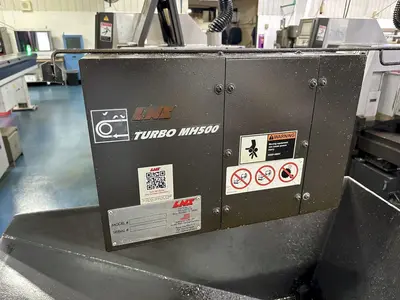

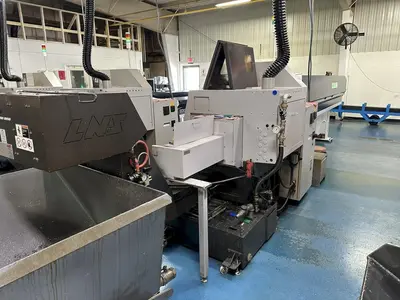

LNS Chip Conveyor

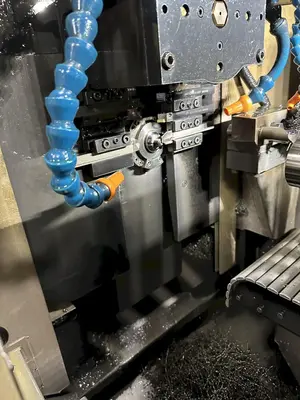

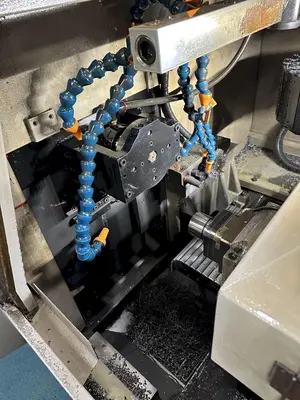

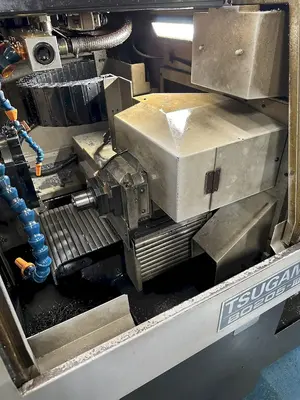

Live Tooling

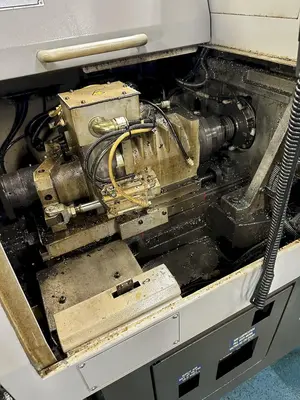

Sub Spindle
5 Axis
Bar Capacity: 0.79"
Spindle Speed: 10,000 RPM
Spindle Motor: 5 HP
Max Turning Length: 8.26"
Max. Main Spindle Drilling Diameter: 0.39"
Max. Main Spindle Tapping Diameter: M10
Max. Back Spindle Chucking Diameter: 0.79"
Max. Back Spindle Drilling Diameter: 0.31"
Max. Back Spindle Tapping Diameter: M8
Max. Cross Drilling Diameter: 0.275"/ER11 and 0.393"/ER16
Max. Cross Tapping Diameter M5 x 0.8"
Max. Tool Spindle Slotting Cutter Diameter: 1.18"
Max. Back Live Drilling Diameter: 0.236"
Max. Back Live Tapping Diameter: M5
Main Spindle Speed 200 to 10,000 min-1
Back Spindle Speed 200 to 12,000 min-1
Rotary Guide Bushing Speed 200 to 10,000 min-1: Direct-drive rotary guide bushing
Direct-drive rotary guide bushing
Live Tool Speed 200 to 8,000 min-1
Total Tool Storage Capacity 21
Tool Size .5 in. x .5 in. square, 20 mm round
Rapid Traverse Rate 32 m/min (105 ft/min)
[(X1/Y1: 24 m/min (78.74 ft/min)] Y2: 15m/min (49 ft/min)
Controlled Axes (linear axes) 5-Axis
Main Spindle 3/5 Hp (2.2/3.7 kW)
Back Spindle 2/3 Hp (1.5/2.2kW)
Axis 0.7 Hp (0.5 kW) - X1,X2,Y1,Z1,Z2
Cross Dill 1 Hp (0.75 kW)
Coolant Pump 0.4 Hp (0.25 kW)
Lubricating Oil Pump 3 W
Power Source Requirement 12 kVA
Compressed Air Requirement 0.4 Mpa or above
Air Discharge Rate 50 NL/min
Coolant Tank Capacity 180 L
Dimensions: 65.16" x 44.29" x 66.93"
Weight: 4,410 LBS
