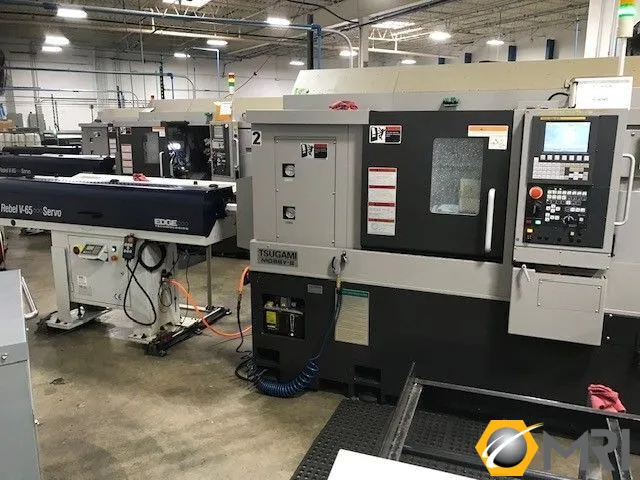

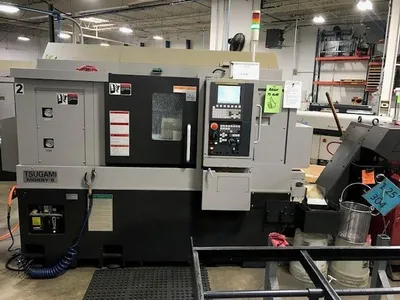

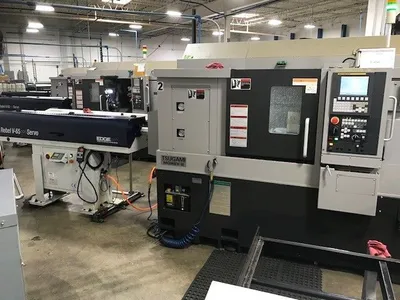

2019 Tsugami M08SY CNC LATHE | JS 7612630
ConditionUsed
1 available
TSUGAMI M08SY CNC Lathe from 2019, features 5-axis operation. Equipped with an 8.0 chuck size and 2.5 bar capacity. Ideal for precision machining tasks with a compact and efficient design. Well-maintained and ready for use.

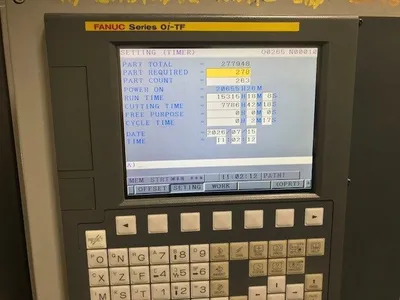

Fanuc 0iTf control

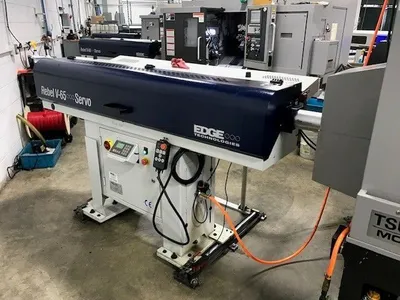

Edge Rebel V65 Barfeeder

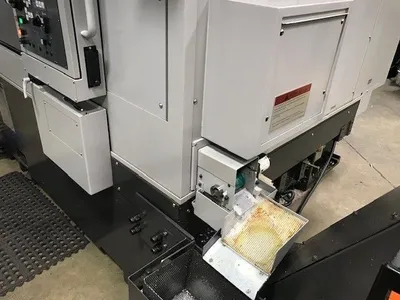

Chip Conveyor

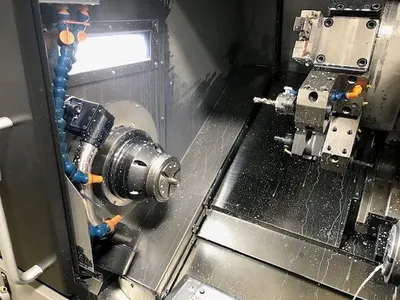

Live Milling

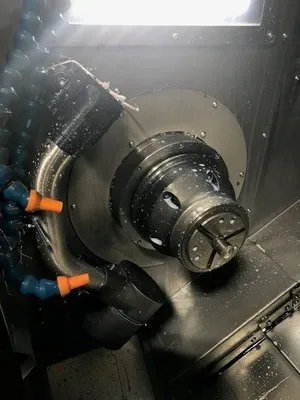

Sub Spindle
2 3-Jaw chucks included

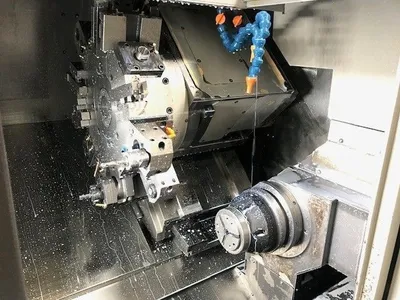

**Collet Chucks shown in photos are not included**
Bar Capacity: 2.5″
Chuck Size: 8″
Sub Spindle: 6″
Spindle Speed: 4,500 RPM
Live Tooling: 5,000RPM
Spindle Motor: 14.8 HP
X Axis Travel: 8.7″
Z Axis Travel: 15.75″
Y Axis Travel: 3.94″
C Axis Travel: .001Deg
W Axis Travel: 19.92″
Rapid Rate Z Axis: 1,062 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11″
Max Turning Length: 14.96″
Dimensions: 97.24″ x 72.83″ x 75.98″
Weight: 13,000 LBS
TSUGAMI M08SY CNC Lathe from 2019, features 5-axis operation. Equipped with an 8.0 chuck size and 2.5 bar capacity. Ideal for precision machining tasks with a compact and efficient design. Well-maintained and ready for use.
Fanuc 0iTf control
Edge Rebel V65 Barfeeder
Chip Conveyor
Live Milling
Sub Spindle
2 3-Jaw chucks included
**Collet Chucks shown in photos are not included**
Imperial
| # Axis | 5 |
| Machining Length | 14.96" |
| Chuck Size | 8" |
| Bar Capacity | 2.5" |
| Power | 14.8 hp |
| Max RPM | 4,500 RPM |
| Turning Dia | 11" |
| Control | CNC |
| Dimensions | 97.24 x 72.83 x 75.98 |
| Weight | 13000 |
Bar Capacity: 2.5″
Chuck Size: 8″
Sub Spindle: 6″
Spindle Speed: 4,500 RPM
Live Tooling: 5,000RPM
Spindle Motor: 14.8 HP
X Axis Travel: 8.7″
Z Axis Travel: 15.75″
Y Axis Travel: 3.94″
C Axis Travel: .001Deg
W Axis Travel: 19.92″
Rapid Rate Z Axis: 1,062 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11″
Max Turning Length: 14.96″
Dimensions: 97.24″ x 72.83″ x 75.98″
Weight: 13,000 LBS
