2014 Mazak VCN 530C-II Vertical Machining Center | JS 7612637
ConditionUsed
1 available

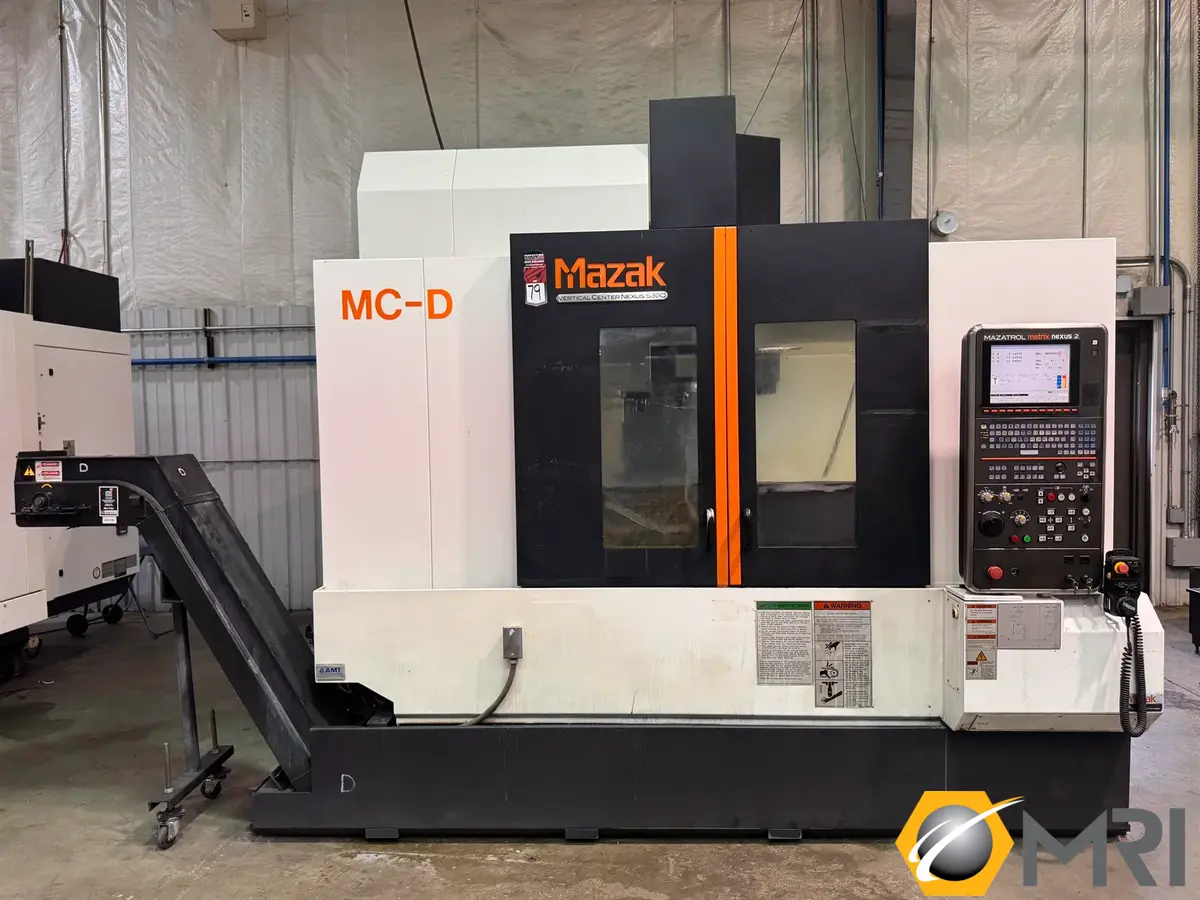

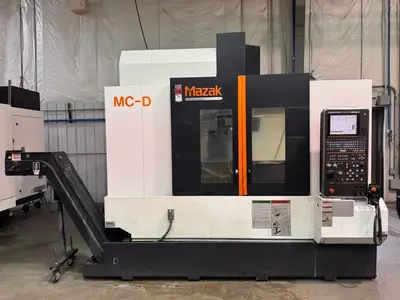

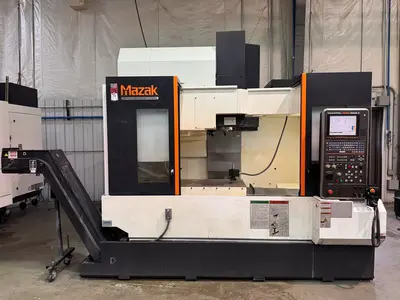

MAZAK VCN 530C-II, 2014 model, vertical machining center available in used condition. Ideal for precision tasks, this machine combines functionality with reliability. Perfect for elevating your production capabilities.

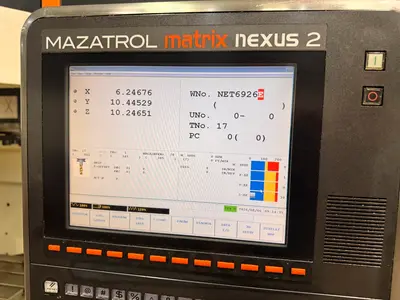

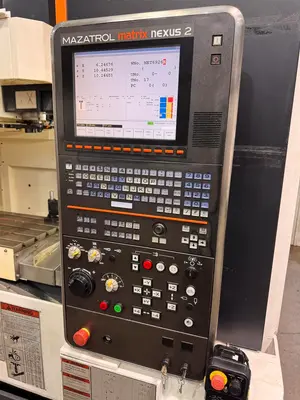

MAZAK MATRIX CONTROL

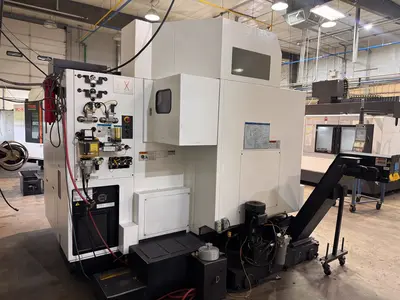

CHIP CONVEYOR
TOOL LENGTH MEASUREMENT

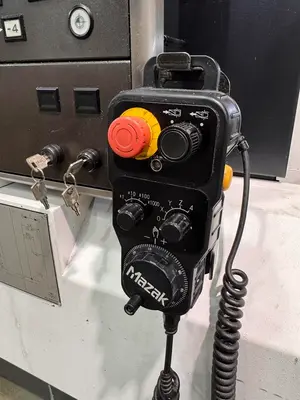

REMOTE HANDWHEEL
COOLANT THROUGH SPINDLE

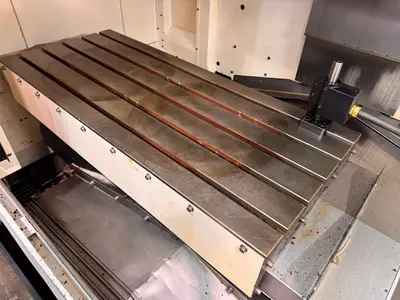

TABLE SIZE 51.1" X 21.65"
X - AXIS TRAVELS 41.31"
Y - AXIS TRAVELS 20.08"
Z - AXIS TRAVELS 20.08"
DISTANCE FROM SPINDLE
NOSE TO TABLE TOP 5.90" - 25.98"
TABLE LOAD CAPACITY 2646 LBS.
SPINDLE NOSE CAT 40
SPINDLE SPEED 12,000 RPM
RAPID TRAVERSE RATE 1654 X,Y, IPM
1654 Z IPM
TOOL MAGAZINE 40 ATC SERVO DRIVEN
MAX TOOL DIA 4.920"
MAX TOOL WEIGHT 17.64 LBS.
MAX TOOL LENGTH 13.78"
MAIN MOTOR/ 30 MIN 25 HP AC/ 15HP/11kw
MACHINE WEIGHT 15,600 LBS.
