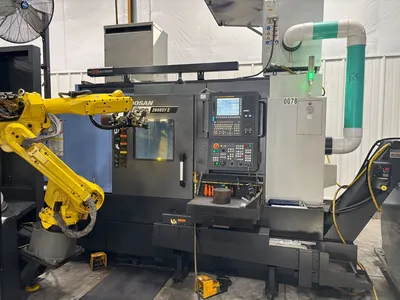

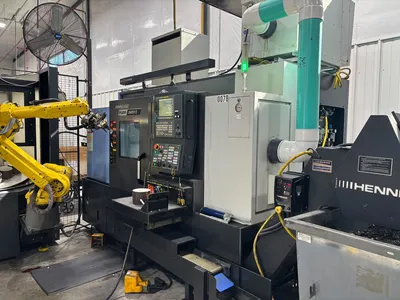

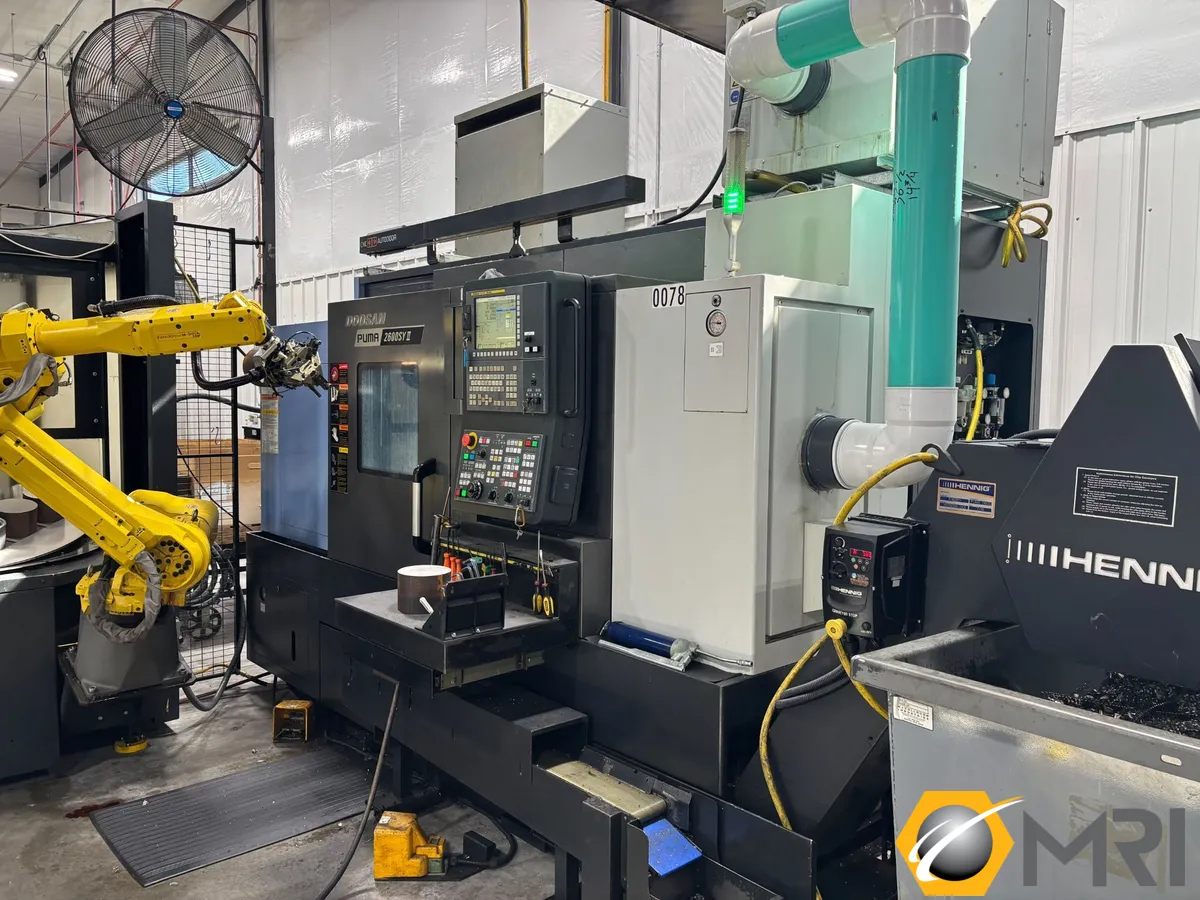

2017 Doosan Puma 2600SYII CNC LATHE | 7612641 MM

Sell Your DOOSAN PUMA 2600SY

CNC Lathes (Turning Centers)

Overview
Description
Specifications

Manufacturer:

DOOSAN

Model:

PUMA 2600SY

Year:

2017

Stock #:

7612641

High Performance Y-axis Horizontal Turning Center If you are machining simple, straightforward parts through to high-precision, complex components made from difficult-to-machine materials the PUMA 2600SYII is your ‘go-to’ turning center. The machine has been designed with single-set up efficiency and accuracy in mind.

Chip Conveyor
Tool Setter
Tailstock
3 Live tool holders
All static tool holders
Parts Catcher
Parts Conveyor

ImperialMetric

Swing	30.7"	779.78 mm
Machining Length	29"	736.6 mm
# Axis	5	5
Bar Capacity	3.2"	81.28 mm
Chuck Size	10"	254 mm
Distance Between Centers	29.9"	759.46 mm
Turning Diameter	14.8"	375.92 mm
Power	30 hp	22.4 kW
Max RPM	4,000 RPM	4,000 RPM
Tailstock	No	No
Live Tooling	Yes	Yes
Sub Spindle	Yes	Yes
# of Turrets	1	1

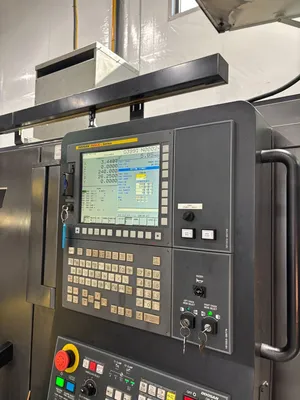

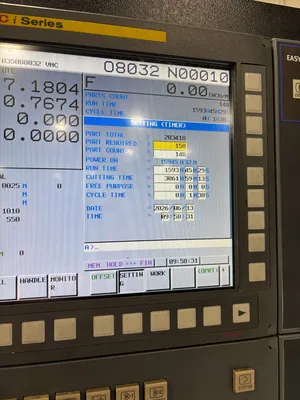

Control	CNC (DOOSAN FANUC)	CNC (DOOSAN FANUC)
Dimensions	175" x 77" x 85"	175" x 77" x 85"
Weight	18,000	18,000

Spindle Bar Capacity 3.2″
Boring Bar Diameter: 2.0″
Main Spindle Max. Speed: 4,000 RPM
Sub Spindle Max. Speed: 6,000 RPM
Main Spindle Chuck 10"
Sub Spindle Chuck 8"
Spindle Motor: 20 HP
Max. Turning Diameter: 14.8″
Max. Turning Length: 29.9″
X-Axis: 10.2″
Y-Axis: 4.1″
Z-Axis: 32.7″
B-Axis: 32.7″
X-Axis Rapid Traverse: 1,181 in/min
Y-Axis Rapid Traverse: 394 in/min
Z-Axis Rapid Traverse: 1,181 in/min
C-Axis Rapid Traverse: 200 RPM
Turret Capacity: 12 Station
Live Cutting Rotary Tool Speed: 5,000 RPM
Live Milling Rotary Tool Motor: 10 HP

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
