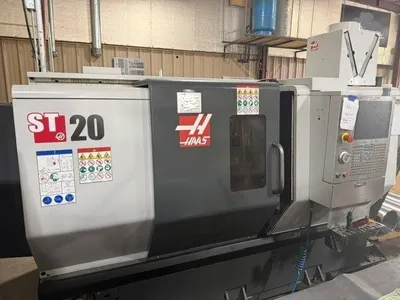

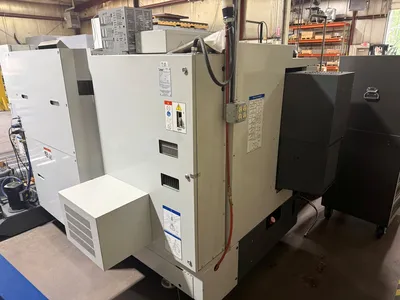

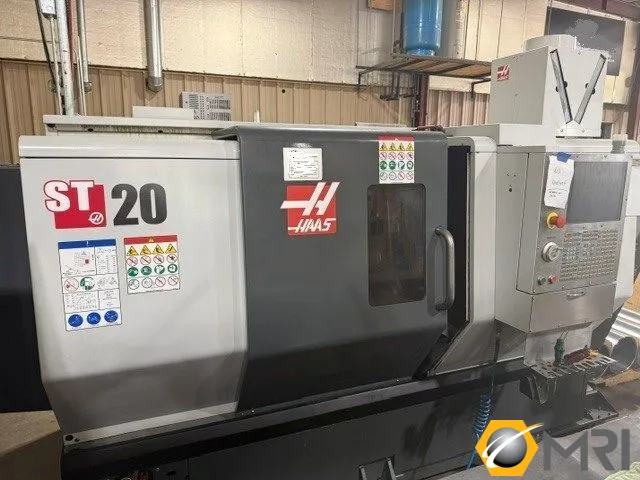

2018 HAAS ST-20 CNC LATHE | JS 7612645

Sell Your HAAS ST-20
877-568-2121
inquiries@machineryresources.com
ConditionUsed
1 available
Sell Your HAAS ST-20

Overview

Type:
CNC Lathes (Turning Centers)
Manufacturer:
HAAS
Model:
ST-20
Year:
2018
Stock #:
7612645
Status:
For Sale

Description

2018 HAAS ST-20 CNC Lathe, used, with 4,000 RPM spindle, 20 HP motor, and a 12-station turret. Features Haas CNC control, chip conveyor, tailstock, tool presetter, and 8” Chuck. Bar capacity 2.5”, max cutting diameter 11.8”, and more.

Haas CNC Control

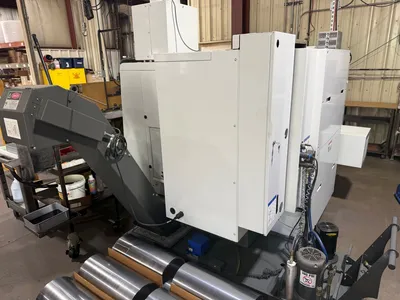

Chip Conveyor
Tailstock
Tool Presetter
8” Chuck
All Available Tooling

Bar Capacity: 2.50″
Chuck Size: 10″
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X-Axis Travel: 8.4″
Z-Axis Travel: 22.5″
Rapid Rate Z-Axis: 945 IPM
Rapid Rate X-Axis: 472 IPM

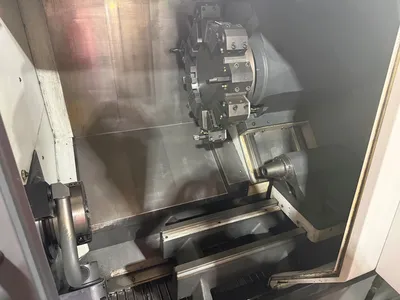

Turret Tools: 12 Station
Max Turning Length: 22.5″
Max Swing: 21.0″
Max Cutting Diameter: 11.8″
Spindle Bore: 3.5″
Coolant Capacity: 55 gal
Approx Dimensions: 143″ x 90″ x 87″
Approx Weight: 10,500 Lbs

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
