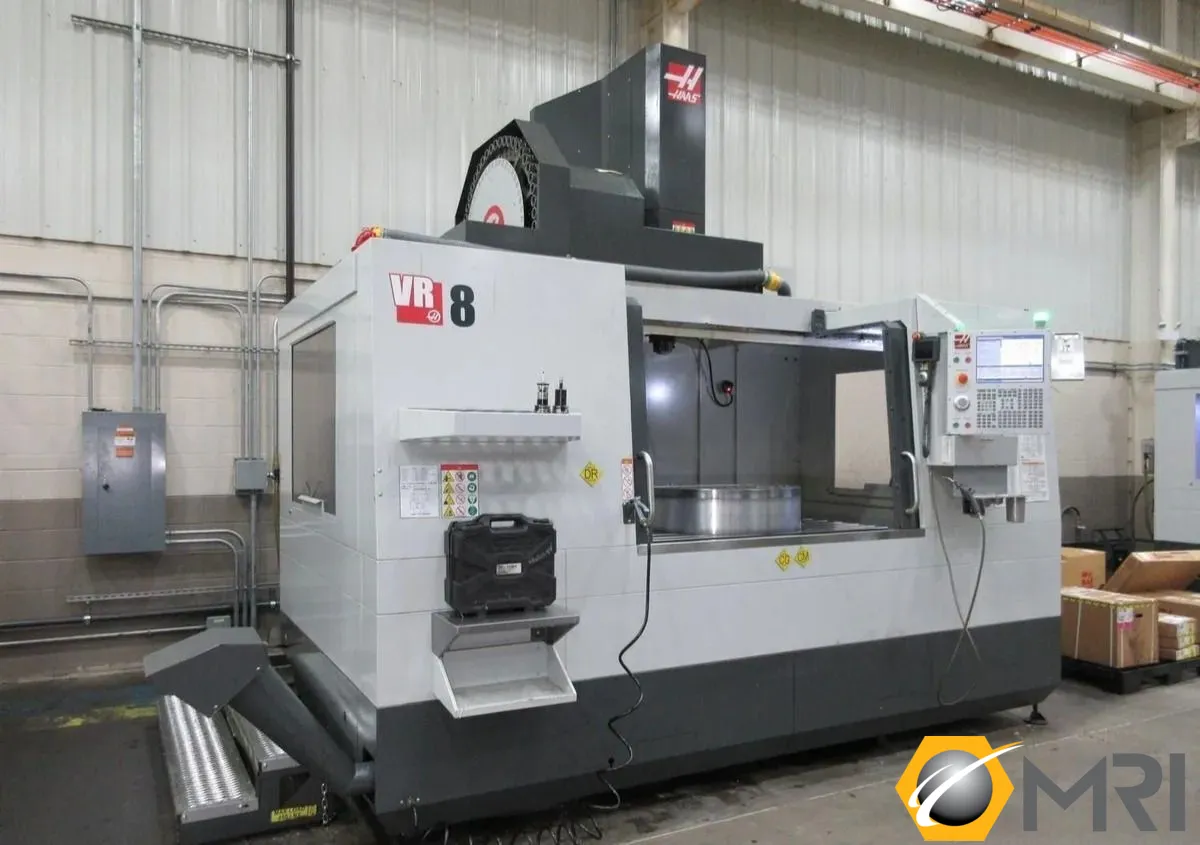

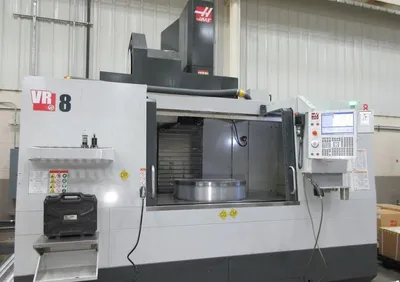

2022 HAAS VR-8 Vertical Machining Center | IH 7612647
ConditionUsed
1 available
2022 HAAS VR-8 Vertical Machining Center, used but robust. Features include dual-axis spindle head, 5-axis machining, 50+1 tool capacity, high-speed machining, and more. Ideal for precision tasks. Dimensions: 204.7" W x 151" D x 153" H. 25,000 lbs.

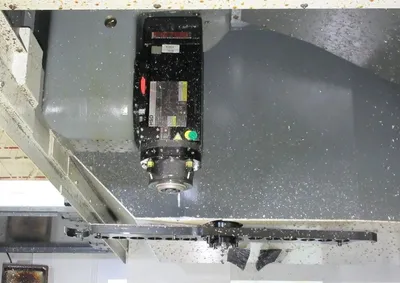

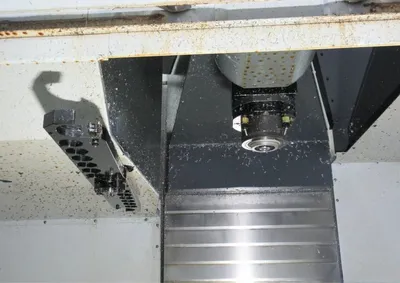

Dual-axis spindle head
±245° of C-axis rotation, ±120° of B-axis tilt
5-axis simultaneous machining
Powerful axis brakes for rigid 3+2 machining
HSK-A63 taper
Includes Tool Center Point Control
High Speed Machining

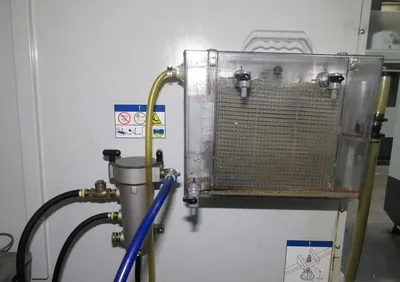

Mist Condensor
Renishaw OMP40-2 Part Probe
Renishaw Tool Setter
Chip Auger

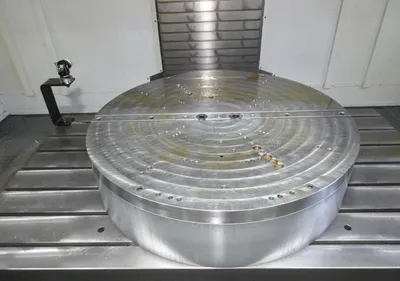

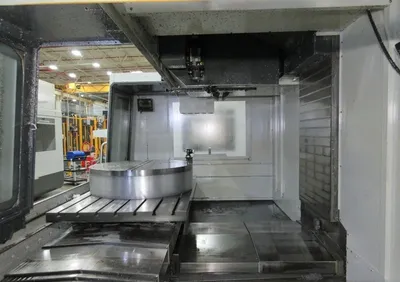

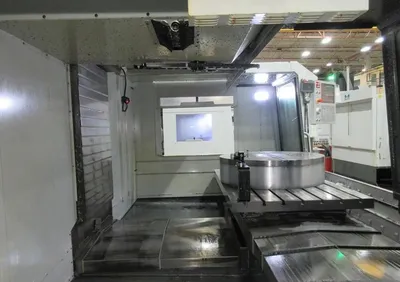

36" Diameter x 8" High Fixture Plate
High Pressure Flood Coolant
Approximate Floor space 204.7" Wide with Auger, 151" Operating Depth, 153" Max height
Shipping dimensions 159.2" W x 116" D x 130" H
Approximate machine weight 25,000 Lbs
Voltage 440/3/60
Travels:
X-Axis 64"
Y-Axis 40"
Z-Axis 42"
B-Axis Tilt 120 to 120 Degrees
C-Axis Rotation 245 to 245 Degrees
Table Size 64" x 36"
Max Weight on Table 4,000 LBS

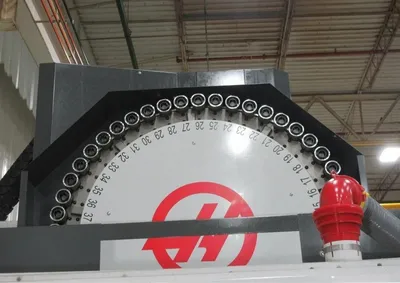

Tool Changer Capacity 50+1 Capacity
