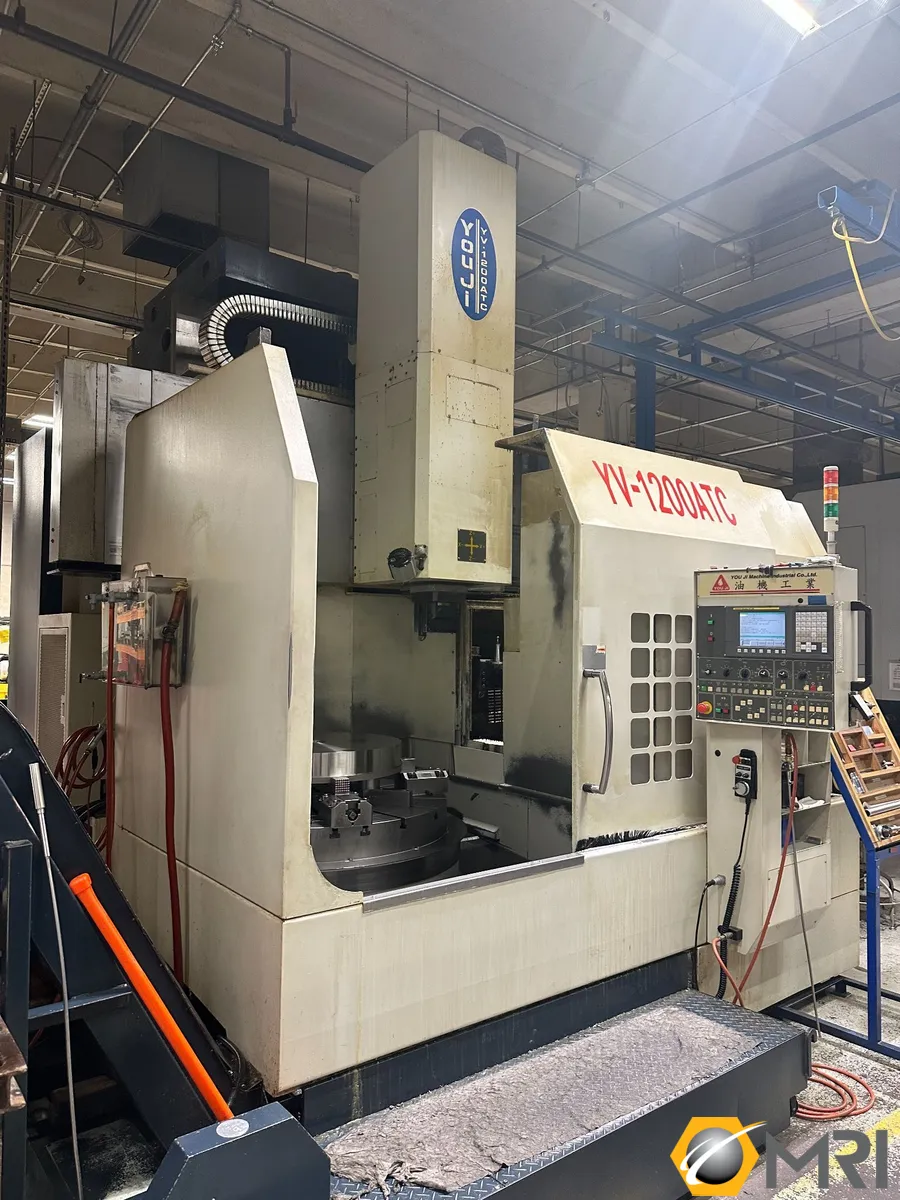

2007 YOU-JI YV-1200ATC VERTICAL TURNING LATHE | 7612661 MM
ConditionUsed
1 available
Summary
$119,900.00
USD
Estimated Monthly
$2,403.00
Financing Term
60 months
Estimated monthly payment. Subject to credit approval. Not a commitment to lend.
Summary
Estimated Monthly
$2,403.00
Financing Term
60 months
Estimated monthly payment. Subject to credit approval. Not a commitment to lend.
The You Ji YV/VTL Series comprises vertical ram-type turning lathes engineered for machining large and heavy parts with exceptional precision and durability. These machines are built on a foundation of heavy-duty Meehanite cast iron, incorporating oversized box ways and large-diameter pre-tensioned ballscrews for superior rigidity and stability. All mating surfaces are Turcite-B coated and hand-scraped to ensure optimal alignment and long-term accuracy.
Fanuc 18T Control System
Swing Diameter – Maximum…………………………………………..63″
Turned Diameter – Maximum………………………………………….53″
Turned Height – Maximum……………………………………………47″
X-Axis Cross Travel – Maximum………………………………………54″
Z-Axis Vertical Travel – Maximum………………………………….35.5″
Table Size……………………………………………………….49″
Table Load………………………………………………..11,000 Lbs.
Table Speed (2 Ranges)…………………………….2 – 108/108 – 350 RPM
(2) Speed Programmable Gearbox…………………………………Standard
Fanuc Alpha Spindle Drive Power……………………………………60HP
Torque – Maximum……………………………………………..12,500Nm
Tool Changer Style……………………………………………CAT50/ATC
Number of Tools……………………………………………………16
Tool Change Time…………………………………………….30 (Secs)
Tool Shank……………………………………………………1″ x 1″
Boring Bar Size – Maximum…………………………………………2.5″
X-Axis Rapid Traverse………………………………………..472.4 IPM
Z-Axis Rapid Traverse………………………………………..393.7 IPM
Weight – Approximate……………………………………….45,200 Lbs.
