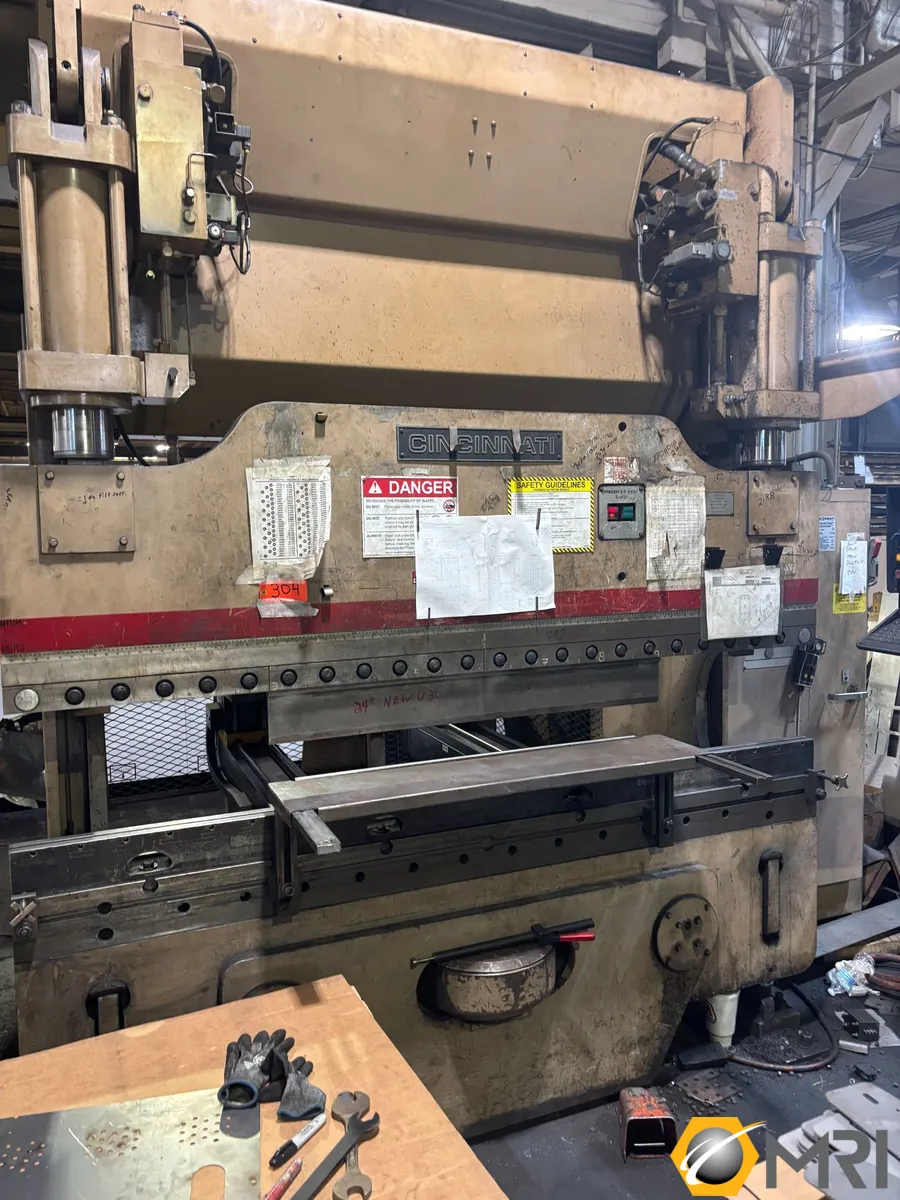

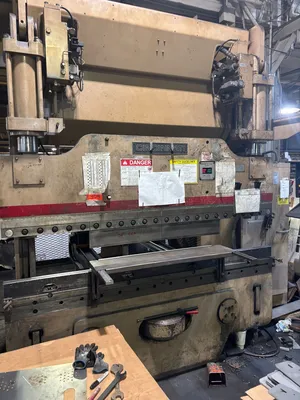

CINCINNATI AUTOFORM 90AF X 6 CNC PRESS BRAKE, NEW: 1996 | RM 7612665
ConditionUsed
1 available
The AUTOFORM is a hydraulically driven, servo-controlled press brake. Linear encoders constantly monitor the bed-to-ram position, feeding this information to the Control. The Control is
a programmable microcomputer, interfaced by the operator through a keyboard using a conversational program display on a color monitor. The program controls the vertical movement of
the ram and movement of the backgage. After a program is entered either the machine can be
run or the program stored in internal memory. The AUTOFORM Control allows an individual
job to be quickly set-up and run as well as complicated, multi-bend parts or long run jobs. After a program is run, the program and related set-up information can be saved for future use.

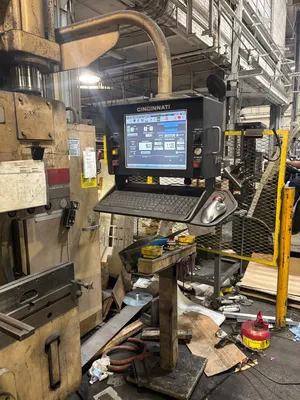

CINCINNATI GEN 5, 8-AXIS CONTROL

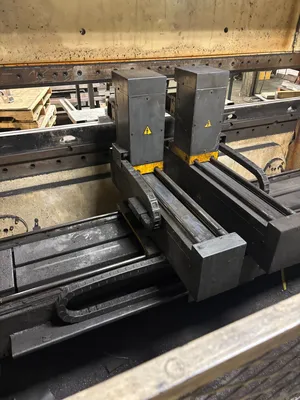

6-AXIS PROGRAMMABLE BACK-GAUGE
DUAL RAM ENCODERS (Y1-Y2)
CINCINNATI CROWNING
FOOT SWITCH
2) FRONT SHEET SUPPORTS
MAX TONNAGE: 90
MAX. OVERALL BEND LENGTH: 96"
DISTANCE BETWEEN HOUSINGS: 78.5"
BED TOP TO FLOOR DISTANCE: 34"
BED TOP WIDTH: 3.5"
THROAT CLEARANCE FROM CENTER OF DIES: 7"
OPEN HEIGHT: 15"
CLOSED HEIGHT: 7"
MAX. STROKE 14"
SPEEDS:
- HIGH APPROACH: 380 IPM
- VARIABLE FORMING: 1-120 IPM
- RETURN: 405 IPM
NO. OF BACK-GAUGE AXES: 6
APPROX. DIMENSIONS: 112"(L) x 60"(W) x 110"(H)
APPOX. WEIGHT: 16,000 LBS
The AUTOFORM is a hydraulically driven, servo-controlled press brake. Linear encoders constantly monitor the bed-to-ram position, feeding this information to the Control. The Control is
a programmable microcomputer, interfaced by the operator through a keyboard using a conversational program display on a color monitor. The program controls the vertical movement of
the ram and movement of the backgage. After a program is entered either the machine can be
run or the program stored in internal memory. The AUTOFORM Control allows an individual
job to be quickly set-up and run as well as complicated, multi-bend parts or long run jobs. After a program is run, the program and related set-up information can be saved for future use.
CINCINNATI GEN 5, 8-AXIS CONTROL
6-AXIS PROGRAMMABLE BACK-GAUGE
DUAL RAM ENCODERS (Y1-Y2)
CINCINNATI CROWNING
FOOT SWITCH
2) FRONT SHEET SUPPORTS
Imperial
| Tonnage | 60 T |
| Type | HYD |
| OA (Overall) Length | 96" |
| Between Housings | 78.5" |
| Stroke | 8" |
| # Axis | 8 |
| Control | CNC |
MAX TONNAGE: 90
MAX. OVERALL BEND LENGTH: 96"
DISTANCE BETWEEN HOUSINGS: 78.5"
BED TOP TO FLOOR DISTANCE: 34"
BED TOP WIDTH: 3.5"
THROAT CLEARANCE FROM CENTER OF DIES: 7"
OPEN HEIGHT: 15"
CLOSED HEIGHT: 7"
MAX. STROKE 14"
SPEEDS:
- HIGH APPROACH: 380 IPM
- VARIABLE FORMING: 1-120 IPM
- RETURN: 405 IPM
NO. OF BACK-GAUGE AXES: 6
APPROX. DIMENSIONS: 112"(L) x 60"(W) x 110"(H)
APPOX. WEIGHT: 16,000 LBS
