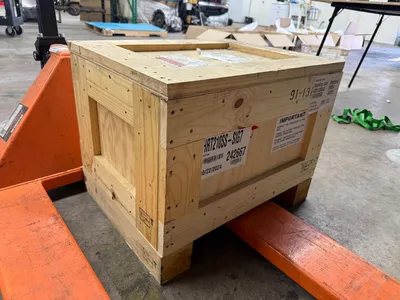

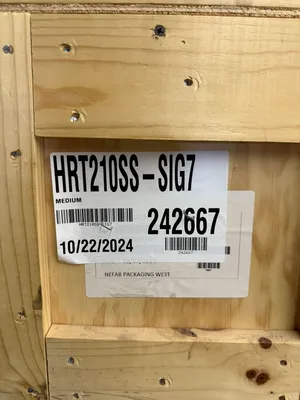

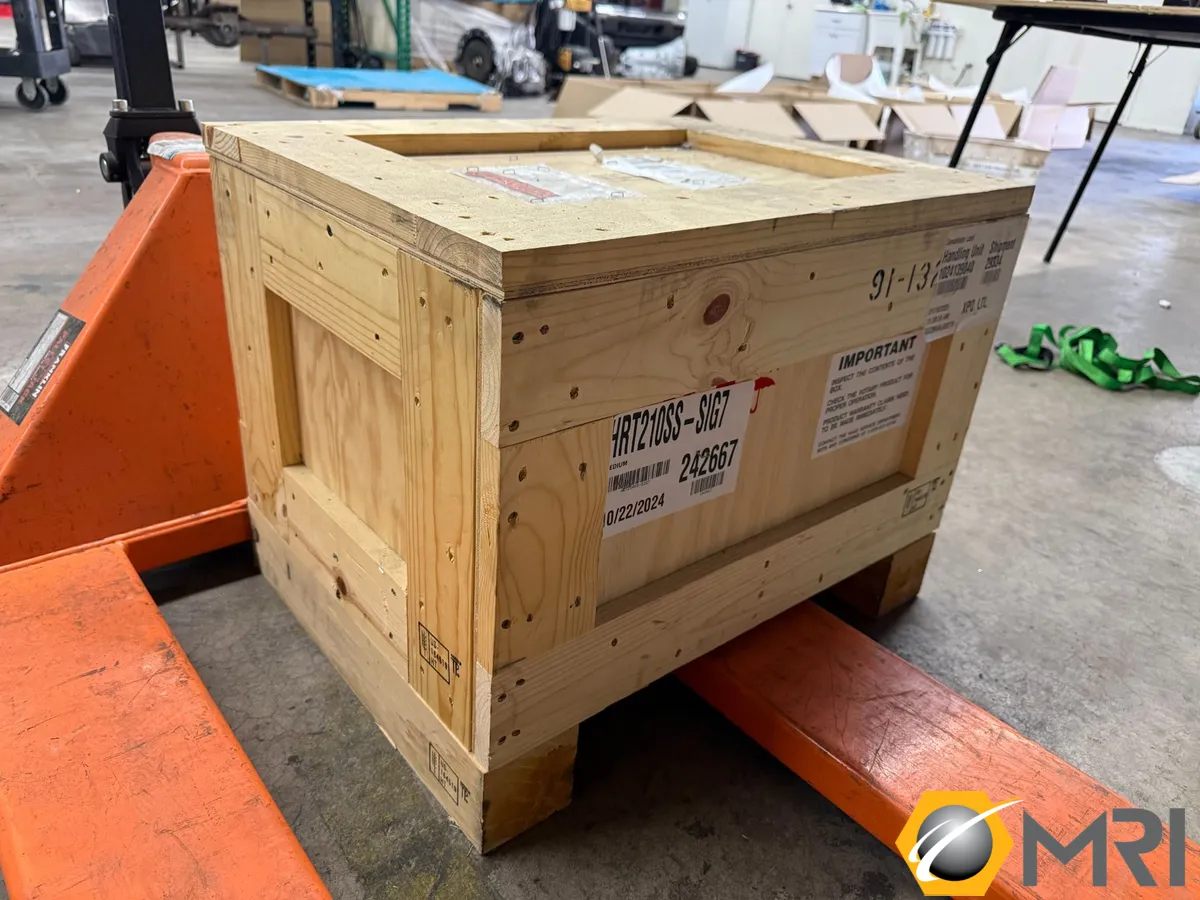

2024 Haas HRT-210SS

Platter S.A.E METRIC
Platter Diameter 8.30 in 210 mm
Max Weight on Platter (w/support) 150 lb 68.0 kg
Max Weight on Platter (unsupported) 75 lb 34.0 kg
Number of Std T-Slots 6 @ 60° 6 @ 60°
Spindle S.A.E METRIC
Max Speed 490 °/sec 490 °/sec
Torque (Continuous) 110 ft-lbf 149 Nm
Runout Max 0.0010 in 0.025 mm
Center Height 6.000 in 152.40 mm
Pilot Bore Diameter 2.0000 in 50.800 mm
Through-Bore Diameter 1.4500 in 36.830 mm
Backlash 30 arc-sec 30 arc-sec
Brake Torque @ 100 psi/6.9 bar 350 ft-lbf 475 Nm
Gear Ratio 36.578:1 36.578:1
Timing 1.5:1 1.5:1
Indexing S.A.E METRIC
Accuracy (±) ± 30.0 arc-sec ± 30.0 arc-sec
Repeatability 10 arc-sec 10 arc-sec
Resolution 0.001 ° 0.001 °
Worm Gear Dia 6.3 in 160 mm
Max Rotation/Step (with rotary control) 999.999 ° 999.999 °
