GMC MACHINE TOOLS HBB-1010NC FOLDING MACHINE, NEW:

Name: Machinery Resources International
Address: 1650 Voyager Ave.,, Simi Valley, CA, 93063, US
Telephone: 877-568-2121

Sell Your GMC Machine Tools HBB-1010NC

877-568-2121

inquiries@machineryresources.com

ConditionUsed

Quantity

1 available

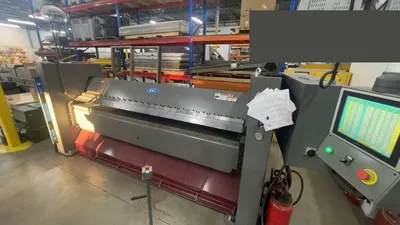

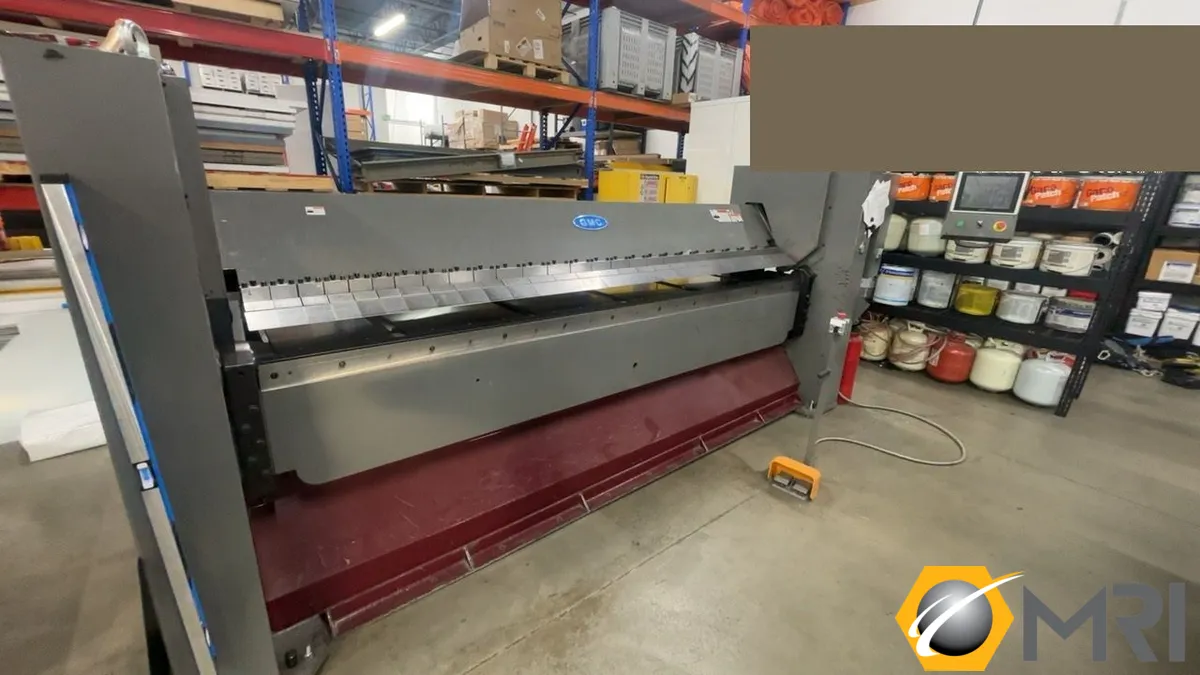

GMC Machine Tools HBB-1010NC FOLDERS | Machinery Resources International (1)

GMC Machine Tools HBB-1010NC FOLDERS | Machinery Resources International (2)

GMC Machine Tools HBB-1010NC FOLDERS | Machinery Resources International

Sell Your GMC Machine Tools HBB-1010NC

Overview

Type:

FOLDERS

Manufacturer:

GMC Machine Tools

Model:

HBB-1010NC

Stock #:

7612676

Status:

For Sale

SO 9001 CERTIFIED.
MEET OSHA AND CE SAFETY STANDARD.
48” NC TABLE BACK GAUGE WITH FINGERS.
MAX. 16 BENDS PER PROGRAM.
UPTO 100 PROGRAM STORAGE.
PROGRAMMABLE ANGLE/ ANGLE CORRECT.
NC RAM HEIGHT CONTROL FOR OPEN HEMMING.
HARDENED FINGERS AND TABLE.
REXROTH HYDRAULIC SYSTEM.
YASKAWA SERVO MOTORS AND DRIVES.
SCHNEIDER ELECTRICAL COMPONENTS.
ALL STEEL CONSTRUCTION FOR MAXIMUM RIGIDITY.
HYDRAULIC LOGIC SYSTEM CENTRALLY LOCATED AND QUIET.
SAFETY TYPE FOOT PEDAL WITH HANDLE AND E-STOP SWITCH.
SAFETY 24V LOW VOLTAGE & OVERLOAD PROTECTION.

BENDING LENGTH: 120"
BENDING CAPACITY:
- MILD STEEL: 10 Ga
- STAINLESS STEEL: 14 Ga
- ALUMINUM: 0.25"
PROGRAMMABLE BEND ANGLE DEGREE: 135
MAX. BOX DEPTH: 6"
LARGE BEAM OPENING - CLAMPING OPENING: 3"
BEAM FRONT/BACK ADJUSTMENT: 1"
MIN. REVERSE BEND: 1"
TABLE BACK-GAUGE TRAVEL: 0.25" - 48.375"
BACK-GAUGE REPEATABLITY: 0.0039"
BACK-GAUGE TABLE HEIGHT: 35.75:
ASSORTED FINGERS: 3", 4", 5" AND 6"
MAIN MOTOR: 10 HP
ELECTRICAL: 3PH/60Hz/220V-208V - 35 AMPS
BACK-GAUGE SERVO MOTOR: 1 HP
HYDRAULIC TANK CAPACITY: 32 GALLONS
APPROX. DIMENSIONS: 163"(L) x 85"(W) x 78"(H)
APPROX. WEIGHT: 11,550 LBS

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
