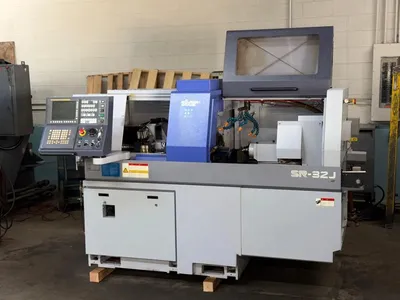

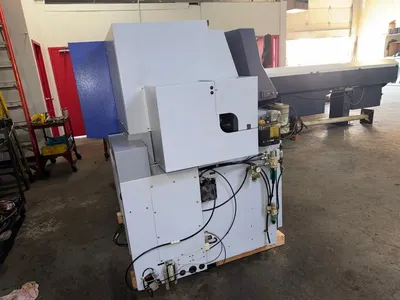

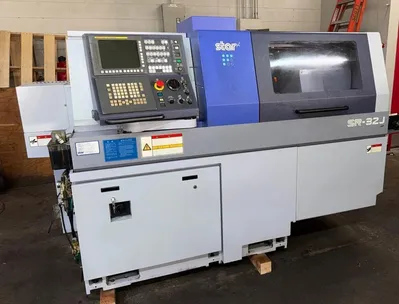

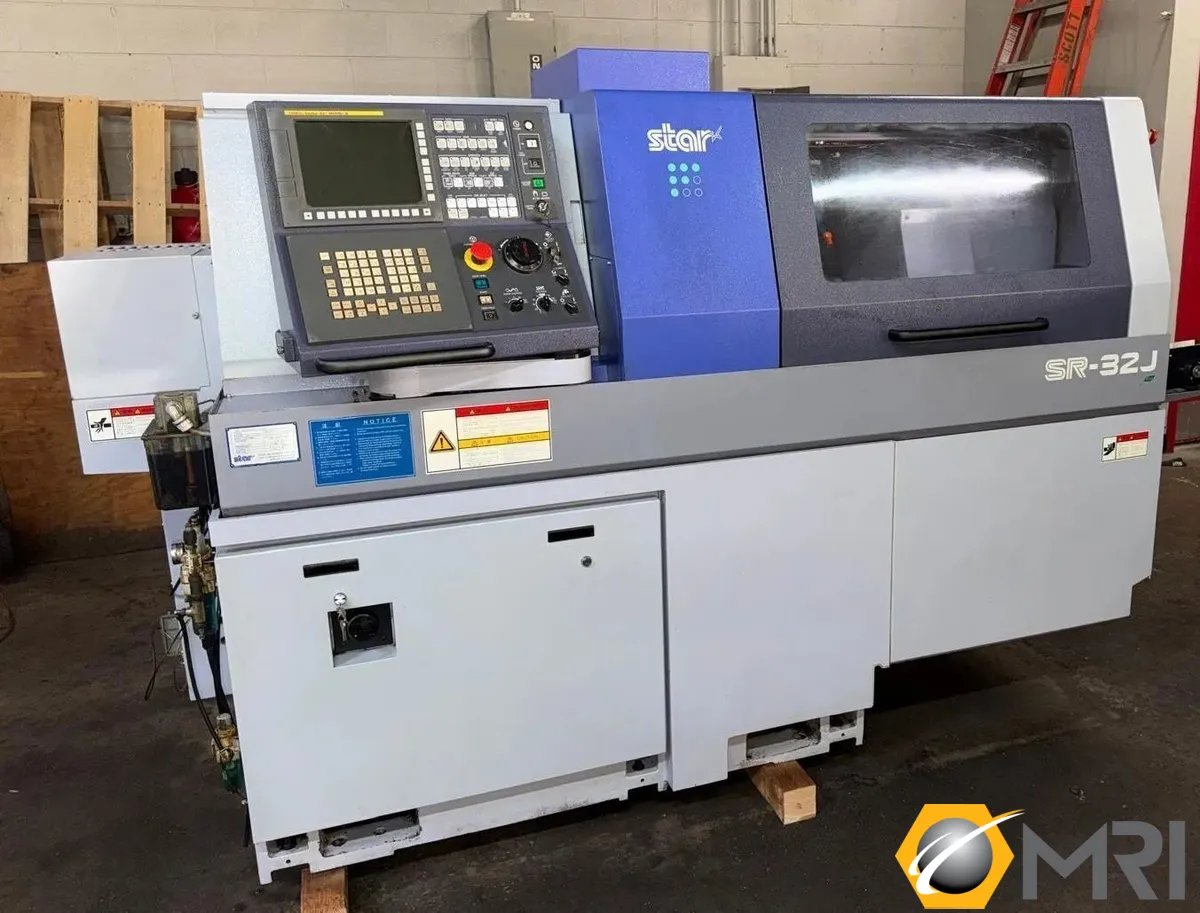

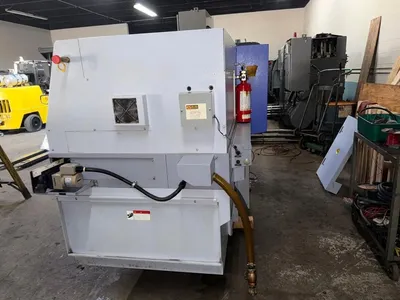

2015 STAR SR32J CNC SWISS LATHE | AB 7612683

Bar Capacity: 32mm / 1.25"
Spindle Speed: 7,000 RPM
Spindle Motor: 10 HP
Z Axis Travel: 12.2"
Rapid Rate Z Axis: 944 IPM
Rapid Rate X Axis: 944 IPM
Number of Axis: 7
FONT SIDE:
Main spindle (headstock) Z1 / C1 axis -
Tool post 1 X1 / Y1 axis
Max. machining diameter 32 mm / 34 mm (option)
Max. headstock stroke (standard) 310 mm
Max. headstock stroke with flexible guide bush unit 280 mm
Drive power main spindle 7.5 kW
Max. main spindle speed 7,000 rpm

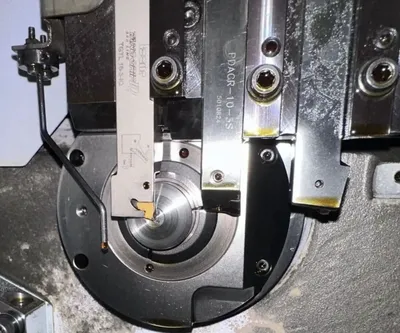

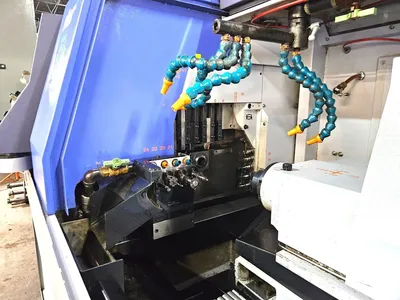

Tools on the tool post
Turning tools 6 tools (16 mm)
Drilling tools
(4-spindle sleeve holder) 4 tools (1 x 32 mm / 3 x 32 mm sleeves)
Cross driven tools 5 tools (ER16)
Speed 5,000 rpm

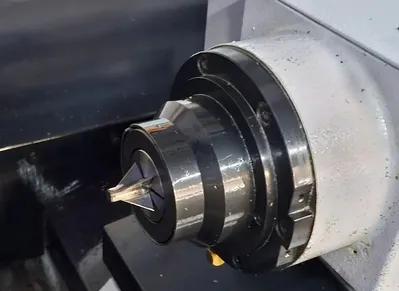

SUB SPINDLE:
Sub spindle X2 / Z2 / C2 axis
Max. chucking diameter 32 mm
Drive power 3.7 kW
Max. sub spindle speed 7,000 rpm

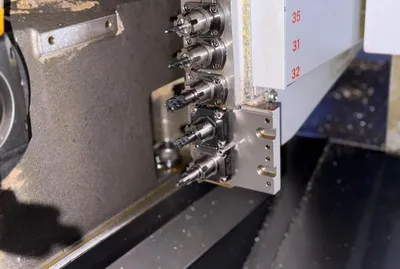

Backworking tools
Drilling tools
(4-station tool holder) 4 tools (Ø 22 mm sleeve)
Drive unit (standard) 4 tools (ER16)
