CINCINNATI 1808G HI SPEED MECHANICAL POWER SQUARING SHEAR, NEW: 2009

Name: Machinery Resources International
Address: 1650 Voyager Ave.,, Simi Valley, CA, 93063, US
Telephone: 877-568-2121

Sell Your CINCINNATI 1808G

877-568-2121

inquiries@machineryresources.com

ConditionUsed

Quantity

1 available

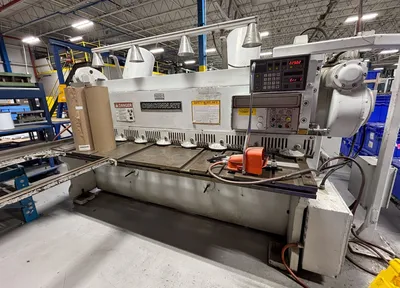

2009 CINCINNATI 1808G SHEARS, POWER SQUARING (Inches) | Machinery Resources International (1)

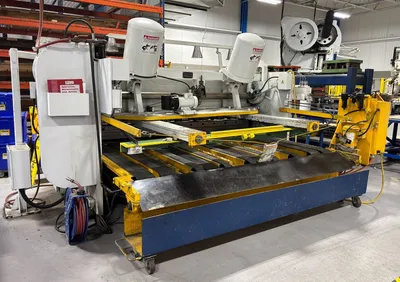

2009 CINCINNATI 1808G SHEARS, POWER SQUARING (Inches) | Machinery Resources International (2)

2009 CINCINNATI 1808G SHEARS, POWER SQUARING (Inches) | Machinery Resources International

Sell Your CINCINNATI 1808G

Overview

Type:

SHEARS, POWER SQUARING (Inches)

Manufacturer:

CINCINNATI

Model:

1808G

Year:

2009

Stock #:

7612691

Status:

For Sale

Description

CINCINNATI 1808G HI SPEED MECHANICAL POWER SQUARING SHEAR, NEW: 2009

CINCINNATI DGC NC CONTROL
36" FRONT OPERATED BACK-GAUGE
FRONT OPERATED 2CV SHEET CONVEYOR
FOOT SWITCH
120" FRONT SQUARING ARM
SHEET SUPORT

ImperialMetric

Max Thickness	0.25"	6.35 mm
Length of Blade	8'	2.4 m
Hyd/Mech	Mech	Mech

MAX. MATERIAL THICKNESS: 0.25"
MAX. CUTTING LENGTH: 98.25"
RAKE: 0.25"
HOLD DOWN FORCE: 6 TONS
NO. OF HOLD-DOWNS: 9
BACK-GAUGE RANGE: 36"
MOTOR: 7.5 HP
FLY WHEEL RPM: 1,200
HOLD DOWN TO KNIFE EDGE: 0.625"
DISTANCE UNDER HOLD-DOWNS: 0.5"
SIZE FOUR EDGE KNIVES: 1" x 3" x 102"
APPROX. WEIGHT WITHOUT CONVEYOR: 13,600

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
