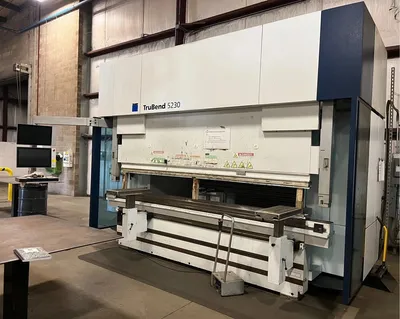

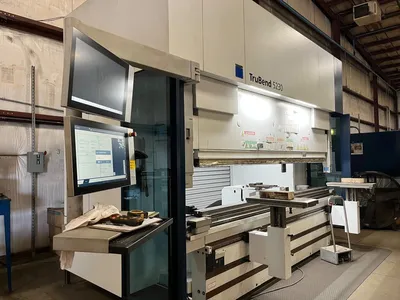

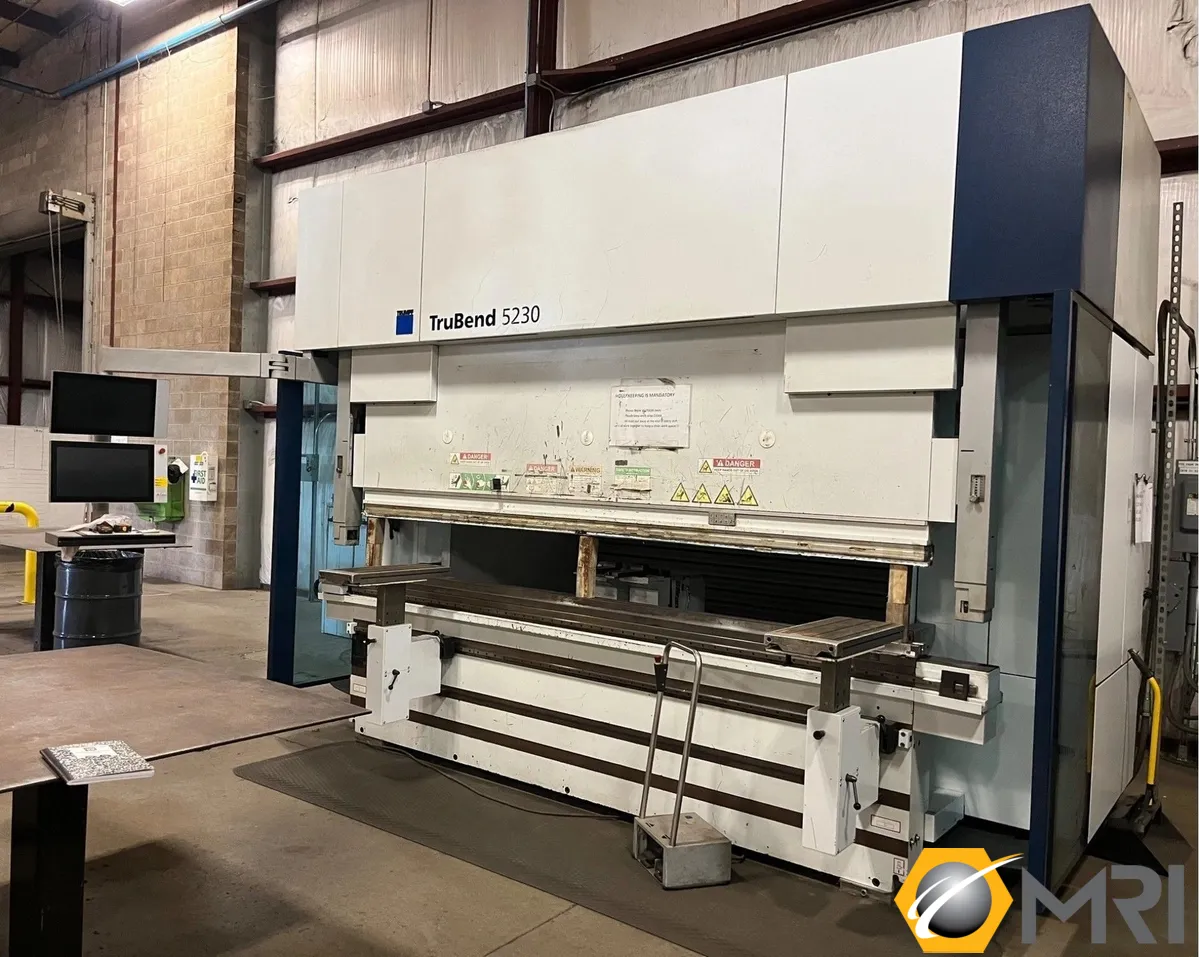

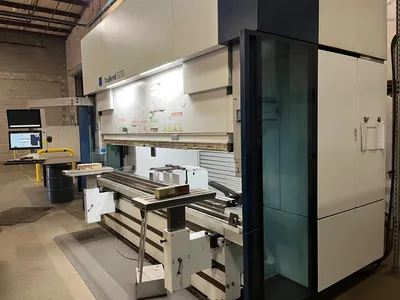

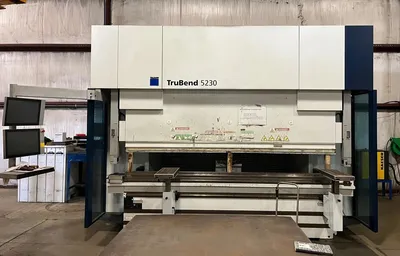

TRUMPF TRUBEND 5230 CNC PRESS BRAKE, NEW: 2020
ConditionUsed
1 available
TRUMPF TRUBEND 5230 CNC PRESS BRAKE, NEW: 2020

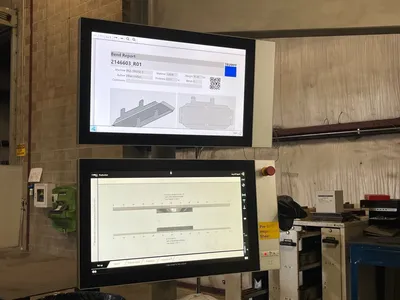

TRUMPF TOUCH-POINT CONTROL
6-AXIS PROGRAMMABLE BACK-GAUGE
HYDRAULIC UPPER TOOL CLAMPING
CNC CROWNING
TOOL INDICATOR
CNC BEND-GUARD
ACB WIRELESS
TWO FRONT SHEET SUPPORTS
MAX. TONNAGE: 253
MAX. BENDING LENGTH: 127.16"
DISTANCE BETWEEN FRAME: 105.9"
USABLE OPEN HEIGHT: 24.21"
STROKE: 17.52"
THROAT DEPTH: 16.5"
SPEEDS:
- APPROACH: 8.66 IPS
- FORMING: 0.0039 IPS
- RETURN: 8.66 IPS
APPROX. MACHINE WEIGHT: 37,920 LBS
APPROX. MACHINE DIMENSIONS: 164"(L) x 81"(W) x 118.2"(H)
TRUMPF TRUBEND 5230 CNC PRESS BRAKE, NEW: 2020
TRUMPF TOUCH-POINT CONTROL
6-AXIS PROGRAMMABLE BACK-GAUGE
HYDRAULIC UPPER TOOL CLAMPING
CNC CROWNING
TOOL INDICATOR
CNC BEND-GUARD
ACB WIRELESS
TWO FRONT SHEET SUPPORTS
Imperial
| Tonnage | 253 T |
| Type | HYD |
| Between Housings | 8.83' |
MAX. TONNAGE: 253
MAX. BENDING LENGTH: 127.16"
DISTANCE BETWEEN FRAME: 105.9"
USABLE OPEN HEIGHT: 24.21"
STROKE: 17.52"
THROAT DEPTH: 16.5"
SPEEDS:
- APPROACH: 8.66 IPS
- FORMING: 0.0039 IPS
- RETURN: 8.66 IPS
APPROX. MACHINE WEIGHT: 37,920 LBS
APPROX. MACHINE DIMENSIONS: 164"(L) x 81"(W) x 118.2"(H)
