TRUMPF TRULASER 5040 FIBER LASER, 10KW, 6.5' x 13', NEW: 2019

Name: Machinery Resources International
Address: 1650 Voyager Ave.,, Simi Valley, CA, 93063, US
Telephone: 877-568-2121

Sell Your TRUMPF TRULASER 5040 FIBER

877-568-2121

inquiries@machineryresources.com

ConditionUsed

Quantity

1 available

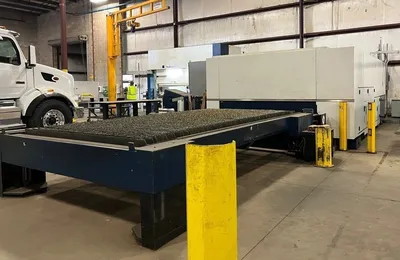

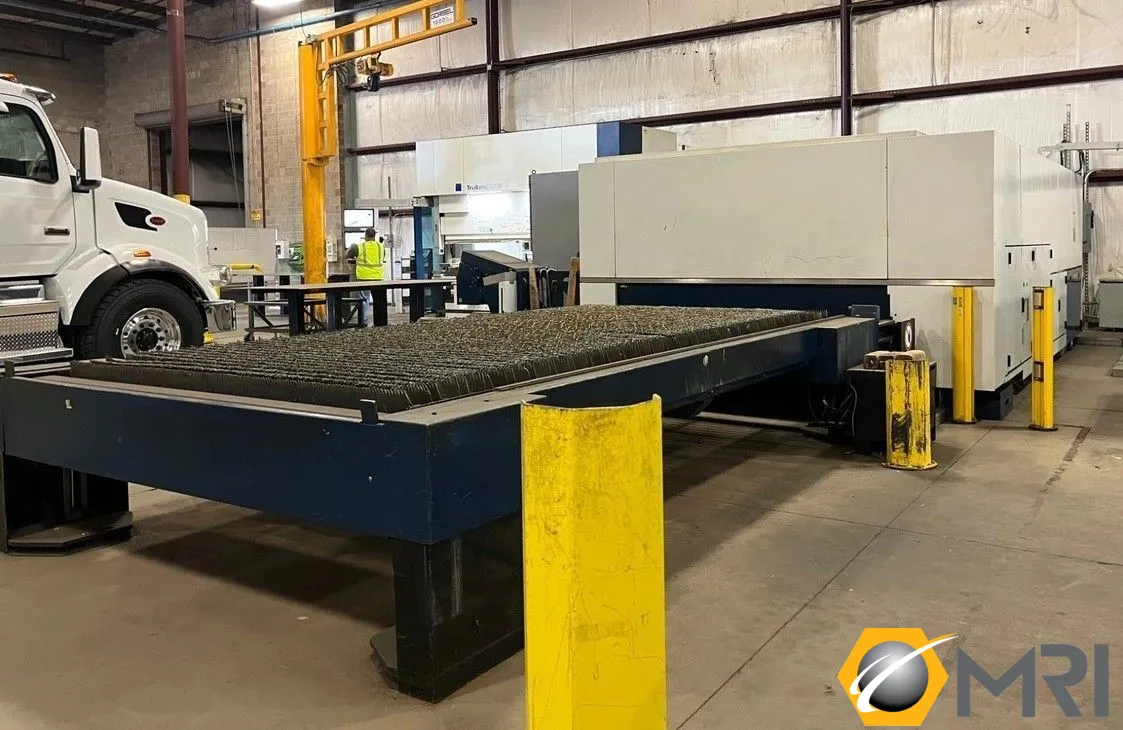

2019 TRUMPF TRULASER 5040 FIBER LASERS | Machinery Resources International (1)

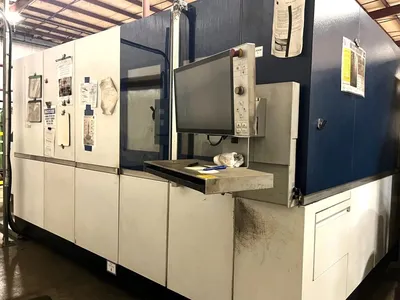

2019 TRUMPF TRULASER 5040 FIBER LASERS | Machinery Resources International (2)

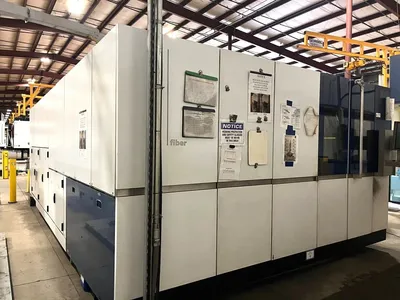

2019 TRUMPF TRULASER 5040 FIBER LASERS | Machinery Resources International (3)

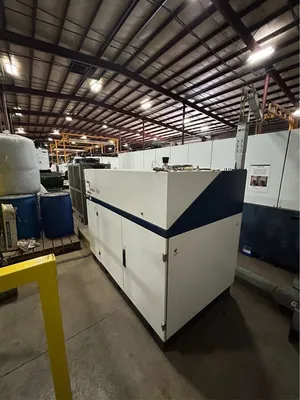

2019 TRUMPF TRULASER 5040 FIBER LASERS | Machinery Resources International (4)

2019 TRUMPF TRULASER 5040 FIBER LASERS | Machinery Resources International (5)

2019 TRUMPF TRULASER 5040 FIBER LASERS | Machinery Resources International (6)

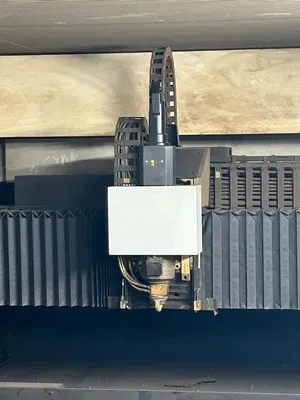

2019 TRUMPF TRULASER 5040 FIBER LASERS | Machinery Resources International (7)

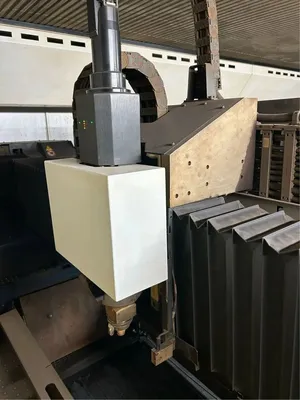

2019 TRUMPF TRULASER 5040 FIBER LASERS | Machinery Resources International (8)

2019 TRUMPF TRULASER 5040 FIBER LASERS | Machinery Resources International (9)

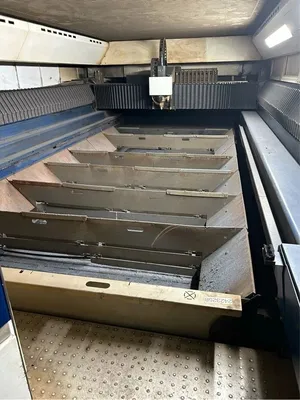

2019 TRUMPF TRULASER 5040 FIBER LASERS | Machinery Resources International (10)

2019 TRUMPF TRULASER 5040 FIBER LASERS | Machinery Resources International

Sell Your TRUMPF TRULASER 5040 FIBER

Overview

Type:

LASERS

Manufacturer:

TRUMPF

Model:

TRULASER 5040 FIBER

Year:

2019

Stock #:

7612694

Status:

For Sale

Description

TRUMPF TRULASER 5040 FIBER LASER, 10KW, 6.5' x 13', NEW: 2019

SIEMENS CONTROL

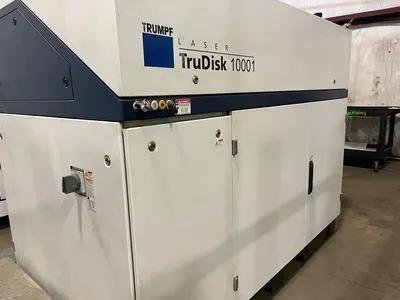

TRUDISK 10001 FIBER ENGINE

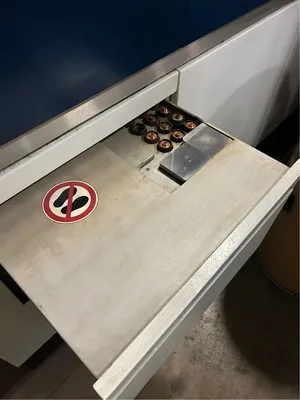

NOZZLE CHANGER

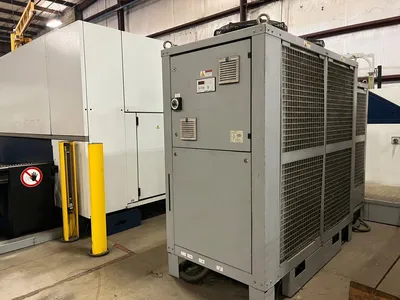

CHILLER
DUST COLLECTOR

ImperialMetric

Sheet-W	78.74"	2,000 mm
Sheet-L	157.48"	4,000 mm
Wattage	10000 w
IPM	245 mpm
X-Travel	157.48"	4,000 mm
Y-Travel	78.74"	2,000 mm
Z-Travel	4.5276"	115 mm

MAX. LASER OUTPUT: 10,000 WATTS
LASER TYPE: FIBER
MOTION SYSTEM: FLYING OPTIC
WORKING RANGE:
- X-AXIS: 157.48"
- Y-AXIS: 78.74"
MAX. WORKPIECE WEIGHT: 4,189 LBS.
MAX. WORKPIECE WEIGHT ON BOTH PALLETS: 12,566
MAX. MATERIAL CUTTING THICKNESS:
- MILD STEEL: 1.26"
- STAINLESS STEEL: 1.57"
- ALUMINUM: 1.18"
- COPPER: 0.05"
- BRASS: 0.05"
MACHINE DIMENSIONS: 441"(L) x 251"(W) x 86.6"(H)
MACHINE WEIGHT: 31,526 LBS,

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
