Used 2022 DOOSAN DNM 6700 | Vertical Machining Centers

Name: Machinery Resources International
Address: 1650 Voyager Ave.,, Simi Valley, CA, 93063, US
Telephone: 877-568-2121

Sell Your DOOSAN DNM 6700

877-568-2121

inquiries@machineryresources.com

ConditionUsed

Quantity

1 available

Summary

$139,900.00

USD

Estimated Monthly

$2,803.00

Financing Term

60 months

Estimated monthly payment. Subject to credit approval. Not a commitment to lend.

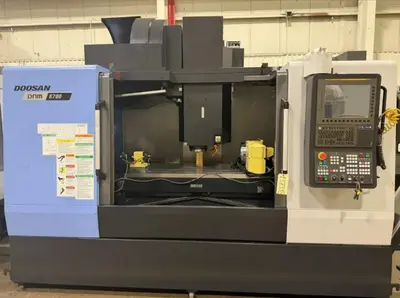

2022 DOOSAN DNM 6700 Vertical Machining Centers | Machinery Resources International (1)

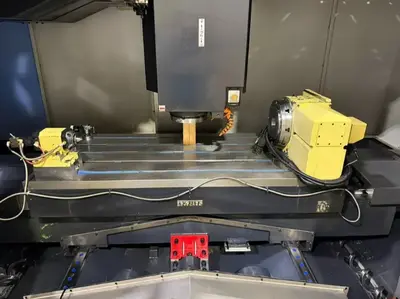

2022 DOOSAN DNM 6700 Vertical Machining Centers | Machinery Resources International (2)

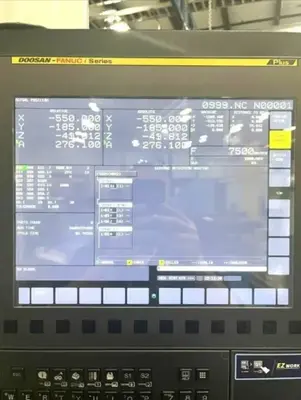

2022 DOOSAN DNM 6700 Vertical Machining Centers | Machinery Resources International (3)

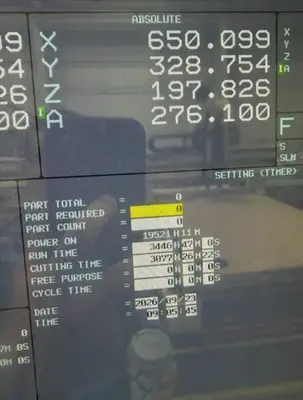

2022 DOOSAN DNM 6700 Vertical Machining Centers | Machinery Resources International (4)

2022 DOOSAN DNM 6700 Vertical Machining Centers | Machinery Resources International

Sell Your DOOSAN DNM 6700

Overview

Type:

Vertical Machining Centers

Manufacturer:

DOOSAN

Model:

DNM 6700

Year:

2022

Stock #:

7612698

Status:

For Sale

Fanuc 0i-Plus Control with iHMi Touch Screen Interface, Thru-Spindle
Coolant, Nikken 4th Axis, CHip Conveyor, Sound Enclosure, AICC II (200 Block Look
Ahead) + 1 Gig Data Server, Renishaw OMI-2T Optical Receiver, Wireless Tool Touch
Probe, Doosan Tool Load Monitoring, Adaptive Feed Rate Control, Doosan Smart Thermal
Monitoring, Remote Control Pendant, Spindle Oil Chiller, Spindle Orientation, Load Meter
and Rigid Tapping.

ImperialMetric

X-Axis	51.18"	1,300 mm
Y-Axis	26.38"	670.05 mm
Z-Axis	24.6"	624.84 mm
# Axis	3	3
Power	24.8 hp	18.5 kW
RPM	12,000 RPM	12,000 RPM
Taper	Cat 40	Cat 40
# ATC	30	30
Table-W	59.05"	1,499.9 mm
Table-L	26.37"	669.8 mm
Pallets?	No	No
4th Axis	Yes	Yes

X - Axis Travel:
Y - Axis Travel:
Z - Axis Travel:
Table Loading Area:
Allowable Table Load:
Table T - Slot Spacing X Width:
Spindle Nose to Table Top:
Spindle Speed:
51.18”
26.38”
24.60”
59.05” X 26.37”
2,866 Lbs
(5) - 4.92” X 0.71”
5.9” - 30.51”
12,000 RPM

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
