Haas UMC-750SS , NEW: 2018 | IH 7612703

Name: Machinery Resources International
Address: 1650 Voyager Ave.,, Simi Valley, CA, 93063, US
Telephone: 877-568-2121

Sell Your HAAS UMC-750SS

877-568-2121

inquiries@machineryresources.com

ConditionUsed

Quantity

1 available

2018 HAAS UMC-750SS CNC UNIVERSAL MACHINING CENTER | Machinery Resources International (1)

2018 HAAS UMC-750SS CNC UNIVERSAL MACHINING CENTER | Machinery Resources International (2)

2018 HAAS UMC-750SS CNC UNIVERSAL MACHINING CENTER | Machinery Resources International (3)

2018 HAAS UMC-750SS CNC UNIVERSAL MACHINING CENTER | Machinery Resources International (4)

2018 HAAS UMC-750SS CNC UNIVERSAL MACHINING CENTER | Machinery Resources International (5)

2018 HAAS UMC-750SS CNC UNIVERSAL MACHINING CENTER | Machinery Resources International (6)

2018 HAAS UMC-750SS CNC UNIVERSAL MACHINING CENTER | Machinery Resources International (7)

2018 HAAS UMC-750SS CNC UNIVERSAL MACHINING CENTER | Machinery Resources International

Sell Your HAAS UMC-750SS

Overview

Type:

CNC UNIVERSAL MACHINING CENTER

Manufacturer:

HAAS

Model:

UMC-750SS

Year:

2018

Stock #:

7612703

Status:

For Sale

Description

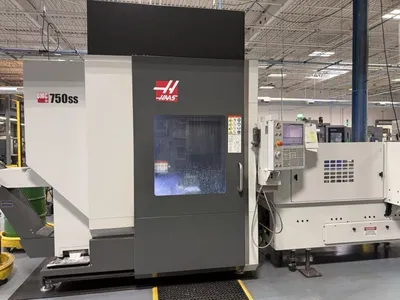

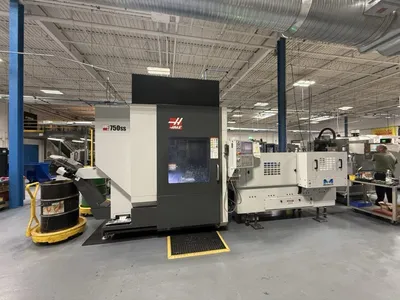

2018 used Haas UMC-750SS 5-axis CNC universal machining center with 30" x 20" x 20" travels, 15,000 RPM spindle, 40+1 tool changer, through-spindle coolant, Midaco automatic pallet changer and chip conveyor.

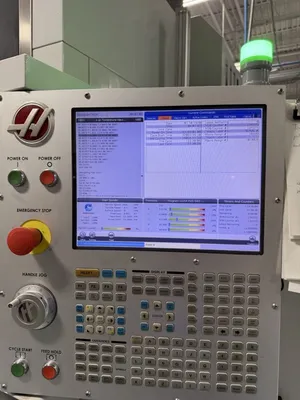

Haas CNC Control
Through Spindle Coolant
15,000 RPM Spindle

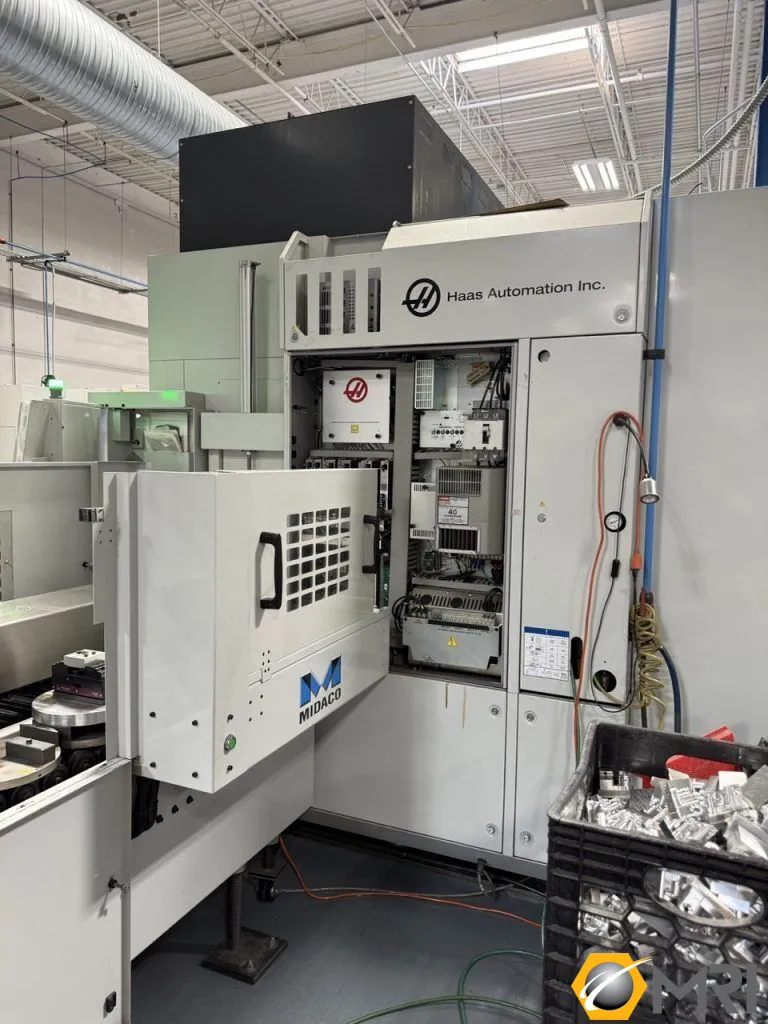

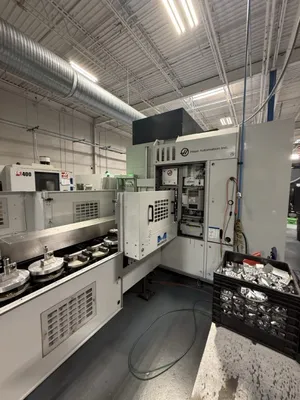

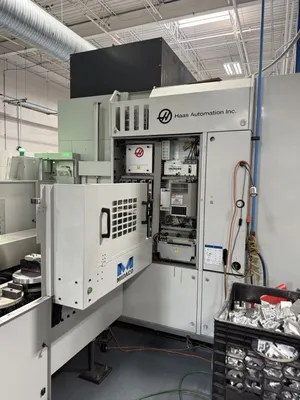

Midaco Pallet Changer
Macros
Rotation and Scaling
Dynamic Work Offsets (DWO) and Tool Center Point Control (TCPC)
Rigid Tapping
M19 Spindle Orientation
High Speed Machining
VPS Editing
Media Display
1 GB Max Memory
Compensation Tables
Fourth Axis
Fifth Axis
40+1 Tool Changer

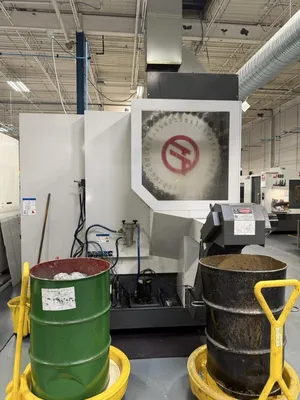

Chip Conveyor

ImperialMetric

X	30"	762 mm
Y	20"	508 mm
Z	20"	508 mm
# Axis	5	5
# ATC	401	401

X Axis Travel: 30″
Y Axis Travel: 20″
Z Axis Travel: 20″
Max Table Load: 660 lb
Spindle Speed: 15,000 RPM
Spindle Power: 30 HP
Spindle Taper: 40 Taper
B-Axis Tilt: +120° to -35°
C-Axis Rotation: 360°
ATC: 40+1

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
