2024 Doosan Puma-TT2100SYY Twin-Spindle Y-Axis CNC Lathe | JS 7612708
ConditionUsed
1 available

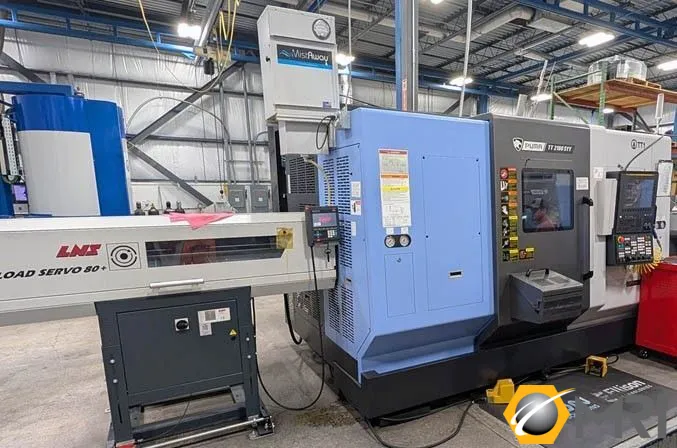

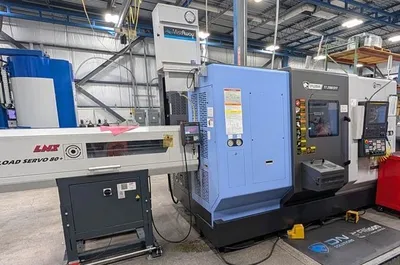

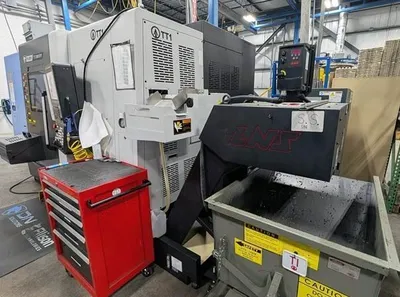

Late-model multi-tasking power — this 2024 Doosan Puma TT2100SYY brings twin-spindle, twin-turret architecture with Y-axis on both turrets, live milling, and an LNS bar feeder ready for true lights-out, done-in-one work. Whether you're running aerospace components, defense small parts, or precision medical work, this Puma is set up to consolidate two-op lathe work plus off-center milling into a single chucking — exactly the kind of capacity step that pays for itself in cycle-time wins.
QG65 Collet Chucks
Mistaway Mist Collector
Box-Way Construction
Fanuc CNC Control
C-Axis
Y-Axis
Live Tooling/Milling
Sub-Spindle
Single Turret Live Tooling

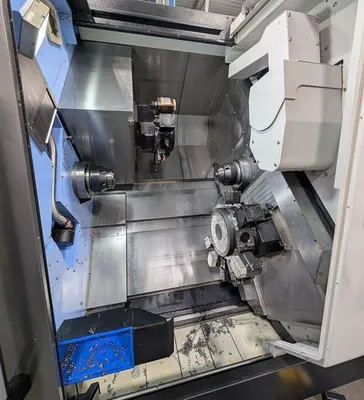

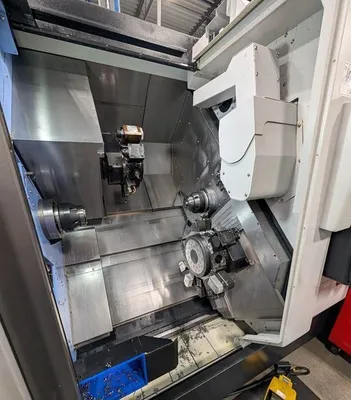

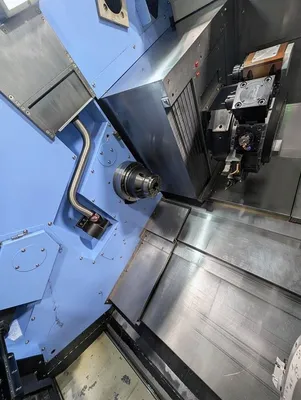

Twin Turret
Second Turret Live Tooling
Bar Capacity: 2.625 inches
Distance Between Centers: 28 inches
Max Swing Over Bed: 9 inches
X-Travel: 6 inches
Z-Travel: 28 inches
Rapid Traverse: 1181/1575 IPM
Chuck Description: 8" Chuck (currently configured with QG65 Collet Chucks; included with machine)
Chuck Type: Collet
Chuck Size: 8 inches
Total Spindles: 2
Spindle Speed: 5,000 RPM
Spindle Motor: 34 HP
Spindle Bore: 3.15 inches
Spindle Nose: A2-6
Live Milling HP: 10 HP
Live Milling Max RPM: 5000 RPM
Tool Positions: 12
Single Turret Live Tooling: Yes
Sub-Spindle: Yes
Turret Max RPM: 5000 RPM
Turret Options: BMT55 Turret Style (Upper and Lower)
Second Spindle Speed: 5000 RPM
Second Spindle Motor: 34 HP
Twin Turret: Yes
2nd Turret Live Tooling: Yes
2nd Turret Max RPM: 5000 RPM
2nd Turret Positions: 12
Max Cutting/Turning Diameter: 9 inches
Max Turning/Cutting Length: 9 inches
Late-model multi-tasking power — this 2024 Doosan Puma TT2100SYY brings twin-spindle, twin-turret architecture with Y-axis on both turrets, live milling, and an LNS bar feeder ready for true lights-out, done-in-one work. Whether you're running aerospace components, defense small parts, or precision medical work, this Puma is set up to consolidate two-op lathe work plus off-center milling into a single chucking — exactly the kind of capacity step that pays for itself in cycle-time wins.
QG65 Collet Chucks
Mistaway Mist Collector
Box-Way Construction
Fanuc CNC Control
C-Axis
Y-Axis
Live Tooling/Milling
Sub-Spindle
Single Turret Live Tooling
Twin Turret
Second Turret Live Tooling
Imperial
| Swing | 9" |
| # Axis | 4 |
| Bar Capacity | 2.63" |
| Chuck Size | 8" |
| Distance Between Centers | 28" |
| Turning Diameter | 9" |
| Power | 35 hp |
| Max RPM | 5,000 RPM |
| Live Tooling | Yes |
| Sub Spindle | Yes |
| # of Turrets | 2 |
| Control | CNC (CNC FANUC) |
Bar Capacity: 2.625 inches
Distance Between Centers: 28 inches
Max Swing Over Bed: 9 inches
X-Travel: 6 inches
Z-Travel: 28 inches
Rapid Traverse: 1181/1575 IPM
Chuck Description: 8" Chuck (currently configured with QG65 Collet Chucks; included with machine)
Chuck Type: Collet
Chuck Size: 8 inches
Total Spindles: 2
Spindle Speed: 5,000 RPM
Spindle Motor: 34 HP
Spindle Bore: 3.15 inches
Spindle Nose: A2-6
Live Milling HP: 10 HP
Live Milling Max RPM: 5000 RPM
Tool Positions: 12
Single Turret Live Tooling: Yes
Sub-Spindle: Yes
Turret Max RPM: 5000 RPM
Turret Options: BMT55 Turret Style (Upper and Lower)
Second Spindle Speed: 5000 RPM
Second Spindle Motor: 34 HP
Twin Turret: Yes
2nd Turret Live Tooling: Yes
2nd Turret Max RPM: 5000 RPM
2nd Turret Positions: 12
Max Cutting/Turning Diameter: 9 inches
Max Turning/Cutting Length: 9 inches
